Yamaha CS1D - Ch 1-24 - Ch 73-96;St in 1-8

IN EQ (Input equalizer) functions
137
IN PATCHIN HA/INSERTIN EQ
IN GATE/COMP
IN DELAYIN DCA/MUTE
PAN/ROUTING
IN CH VIEW
CH 1-24 – CH 73-96/ST IN 1-8
[Function]

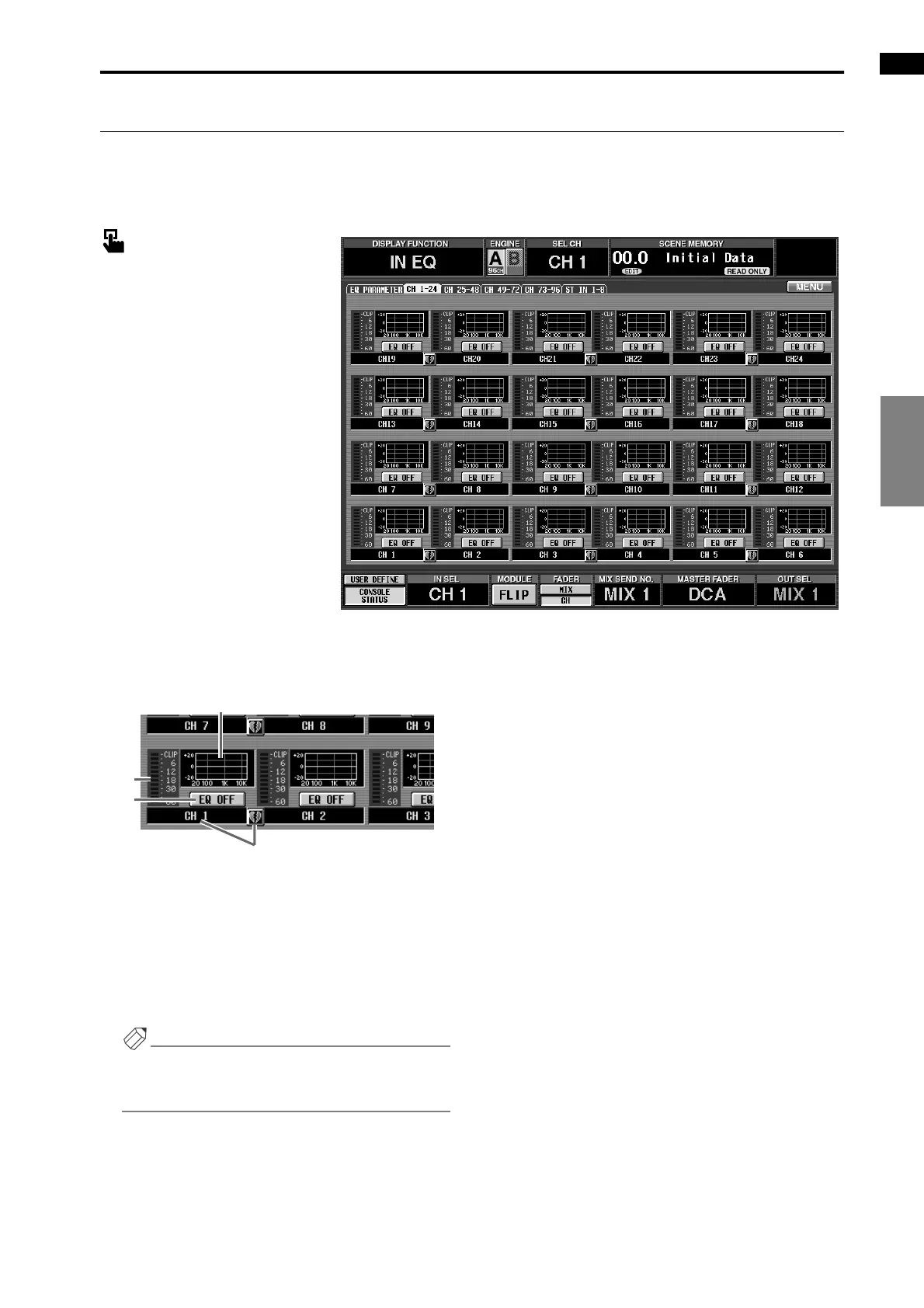

View a list of the EQ settings for each input channel. Also, copy EQ settings between input channels.
■ Console
In the LCD FUNCTION ACCESS
block, press the INPUT [EQ] switch
(press repeatedly until the screen
shown at the right appears)
■ Display
MENU button → INPUT EQ but-
ton → The tab for the desired input
channel/insert in point
[Screen functions]
1 EQ graph
This is a mini-graph that shows the EQ settings for
each input channel. By clicking the graph where the
cursor is located, you can access the EQ PARAME-
TER screen for the corresponding channel. By drag-
ging the graph area to another input channel, you
can copy EQ settings.
Hint
For two paired channels or a stereo input channel,
the graph will be shared, and level meters for the two
channels will be displayed.
2 Meter
This meter displays the post EQ peak levels. If the
signal clips after the EQ, the corresponding CLIP
segment will light.
3 EQ ON/OFF
This button switches the EQ on/off.
It is linked with the EQ ON/OFF button in the EQ
PARAMETER screen.
4 Pair setting
This shows the number and the pairing status of the
input channel. You can click the heart symbol to
enable/defeat pairing.
2
3
1
4
