Yamaha CS1D - Number of Inputs;Outputs and Channel Structure

CS1D Operating Manual (Basic Operation)
6

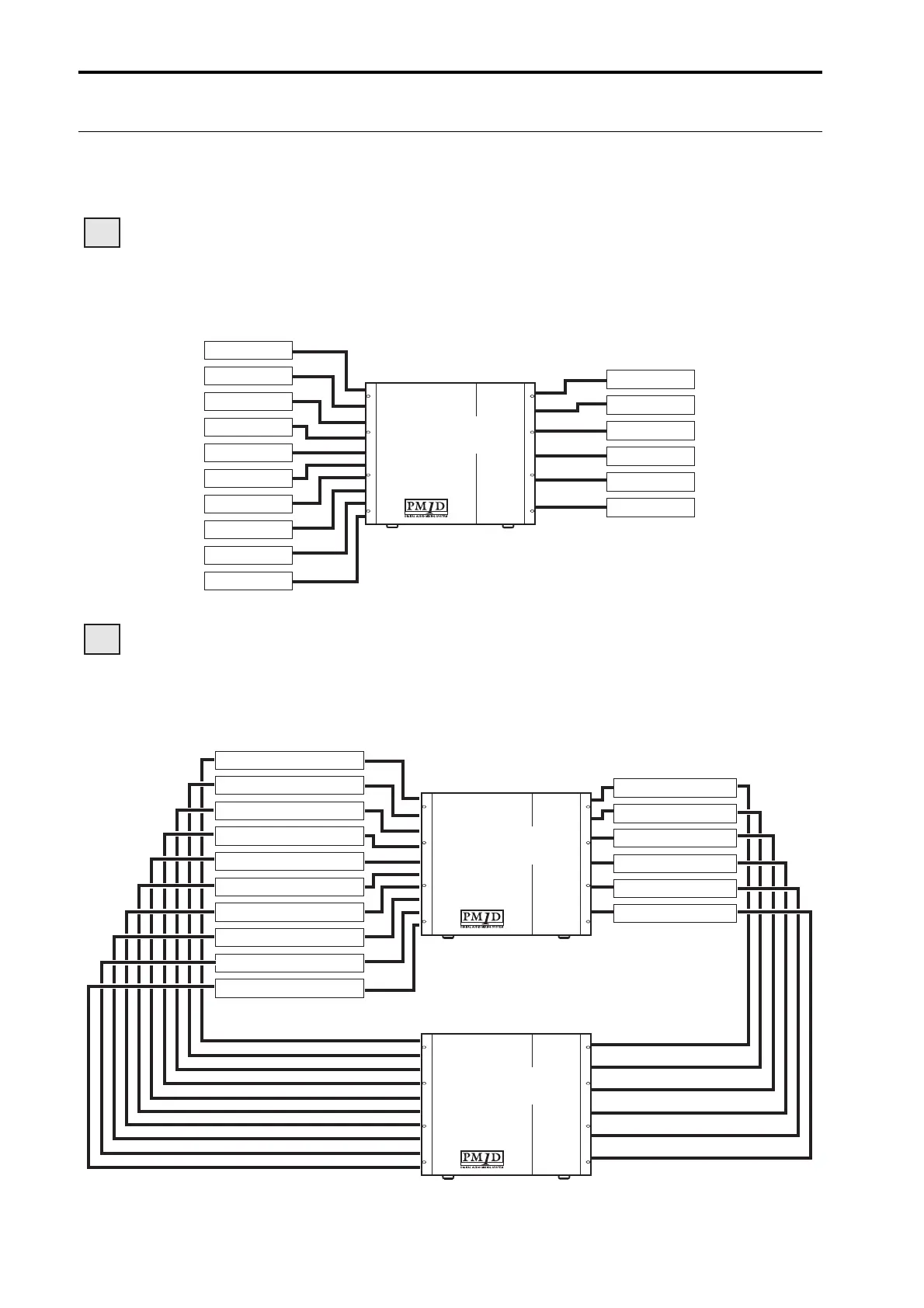

Number of inputs/outputs and channel structure
The DSP1D-EX {DSP1D} engine provides INPUT connectors 1–10 for connecting input units, and OUTPUT connec-
tors 1–6 for connecting output units.
When the PM1D system is used in Standard mode, up to ten input units (maximum of 320 input connectors) and up to
six output units (maximum of 192 output connectors) are connected to one engine.
When the PM1D system is used in Mirror mode, up to ten input units (maximum of 320 input connectors) and up to six
output units (maximum of 192 output connectors) are connected to two engines.
DSP
x1x1
INPUT
1~10
INPUT A
OUTPUT
1~6
OUTPUT A
OUTPUT A
OUTPUT A
OUTPUT A
OUTPUT A
OUTPUT A
OUTPUT A
OUTPUT A
OUTPUT A
OUTPUT A
INPUT A
INPUT A
INPUT A
INPUT A
INPUT A
DSP1D-EX {DSP1D}
engine
Input units
Output units
DSP
x2x2
INPUT
1~10
OUTPUT
1~6
INPUT
1~10
OUTPUT
1~6
INPUT A INPUT B
OUTPUT B OUTPUT A
INPUT A INPUT B
INPUT A INPUT B
INPUT A INPUT B
INPUT A INPUT B
INPUT A INPUT B
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
OUTPUT B OUTPUT A
DSP1D-EX {DSP1D}
engine A
DSP1D-EX {DSP1D}
engine B
Input units
Output units
