Yamaha CS1D - Direct out Patch

Input functions
120

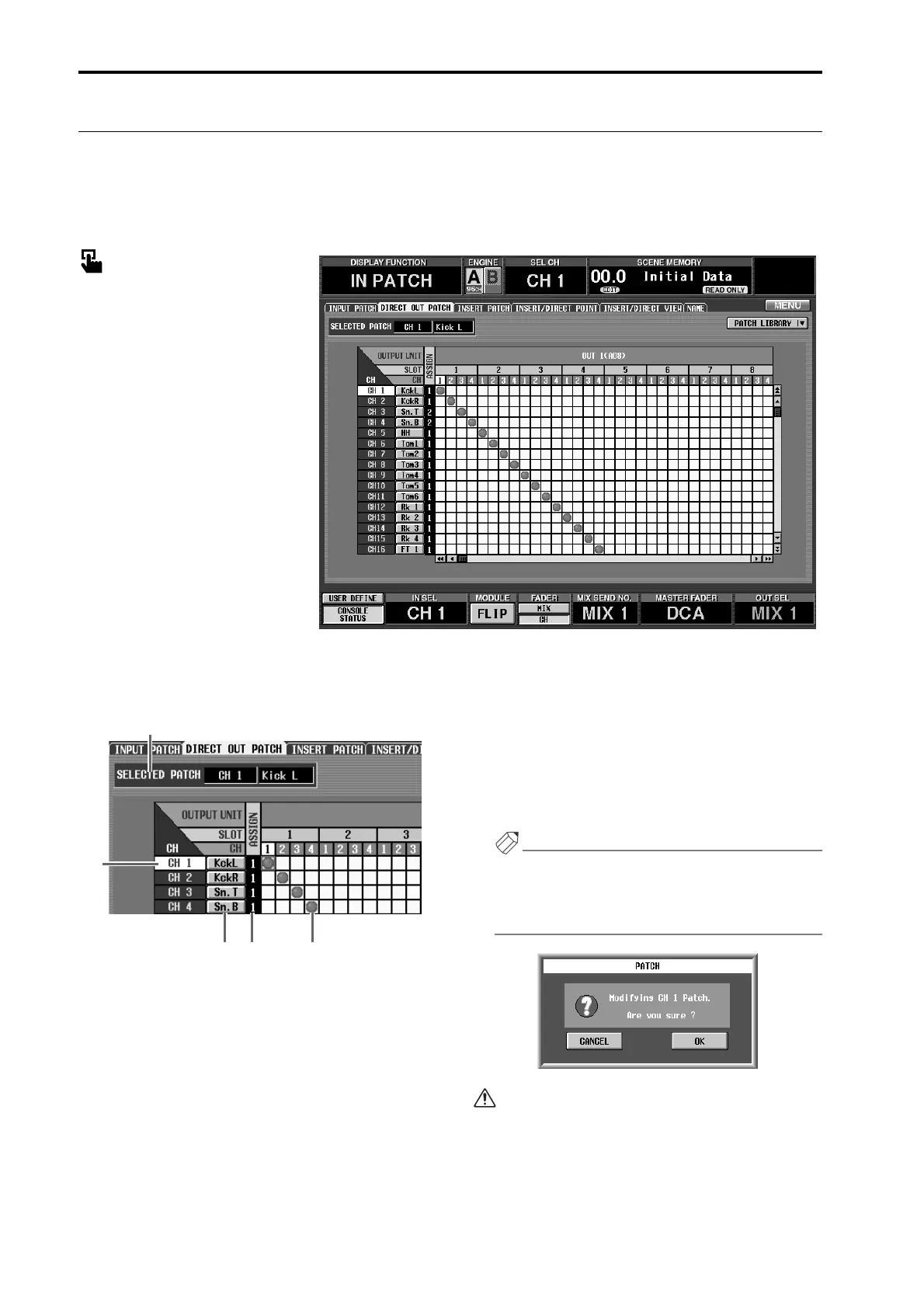

DIRECT OUT PATCH
[Function]
The signals input to the input channels are patched to the output jacks of a card installed in the output unit
(AO8, DIO8), and output directly.
■ Console
In the LCD FUNCTION ACCESS
block, press the INPUT [PATCH]
switch (press repeatedly until the
screen shown at the right appears)
■ Display
MENU button → INPUT PATCH
button → DIRECT OUT PATCH
tab
[Screen functions]
1 CH (input channel)
This is the number of the input channel to be
patched.
2 Short name
The short name assigned to each input channel is
displayed here. You can also click this area to assign a
short name/long name (→p.128).
3 ASSIGN
This shows the number of direct outputs assigned to
each input channel.
4 Grid
This grid allows output jacks (horizontal lines) to be
patched to input channels (vertical columns). Cur-
rently-patched grids are indicated by a ● symbol.
Move the cursor to the desired grid, and press the
[ENTER] switch (or click) to set/cancel the patch.
Hint
If PATCH CONFIRMATION is turned on in the
UTILITY function PREFERENCE screen, a popup
window will ask you for confirmation each time you
attempt to change the patch settings.
You can patch a single input channel to multiple
output channels, but you cannot patch multiple
input channels to a single output jack.
5 SELECTED PATCH (currently selected patch)
This shows the input channel number/long name for
the grid location where the cursor is currently
located.
1
2
3 4
5
