MATRIX LAYER section
In this section you can select the group of channels that will be controlled by the MATRIX channel section.

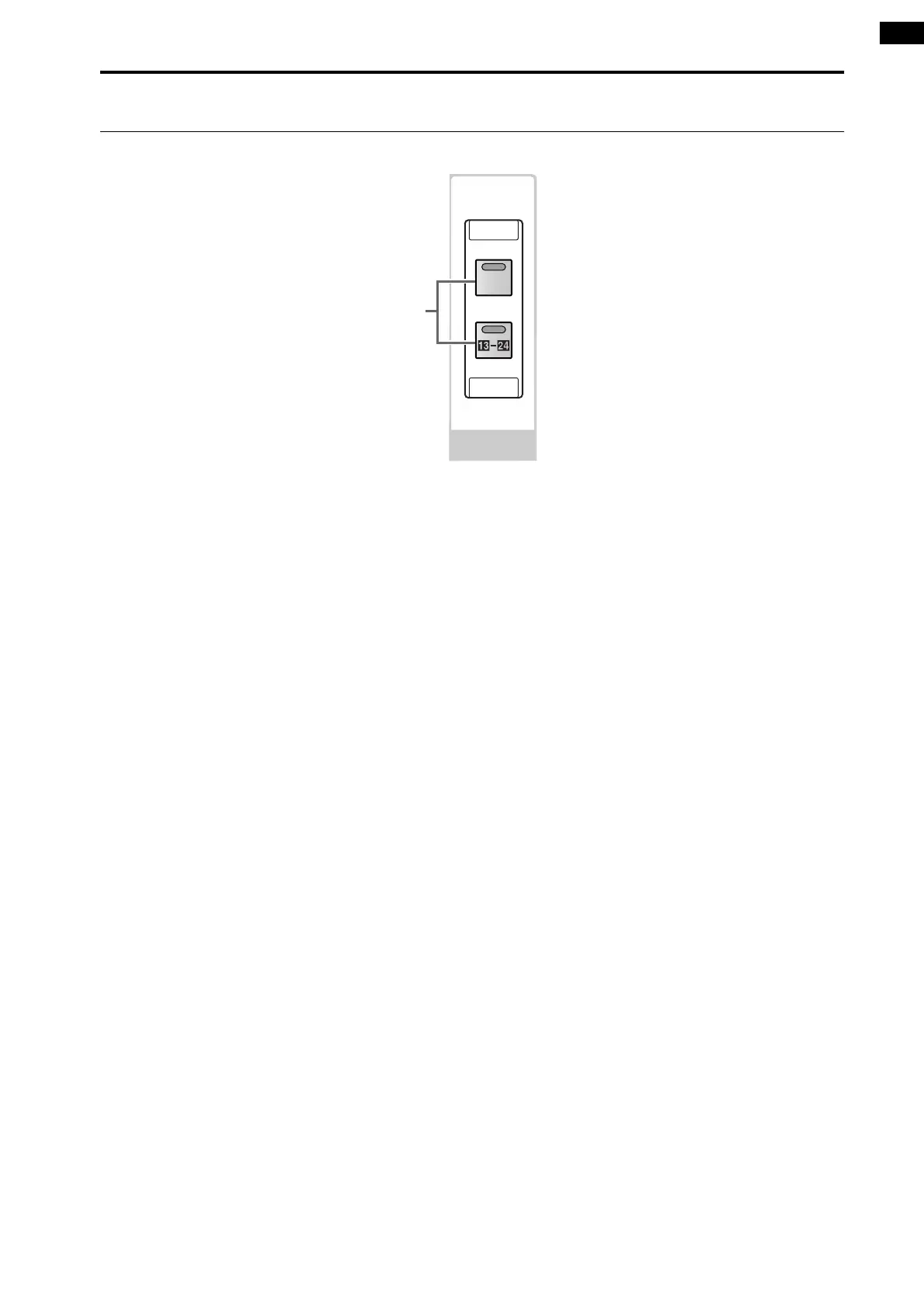

1 MATRIX LAYER [1–12]/[13–24] switches and LEDs
The channels controlled by the MATRIX channel
section will change as follows, according to the
switch that is turned on.
• When the MATRIX LAYER [1–12] switch is on
MATRIX channels 1–12 will be controlled.
• When the MATRIX LAYER [13–24] switch is on
MATRIX channels 13–24 will be controlled.
MATRIX
LAYER
1 - 12
1
