Yamaha CS1D - ENGINE Section; GLOBAL LAYER Section

MASTER block
87

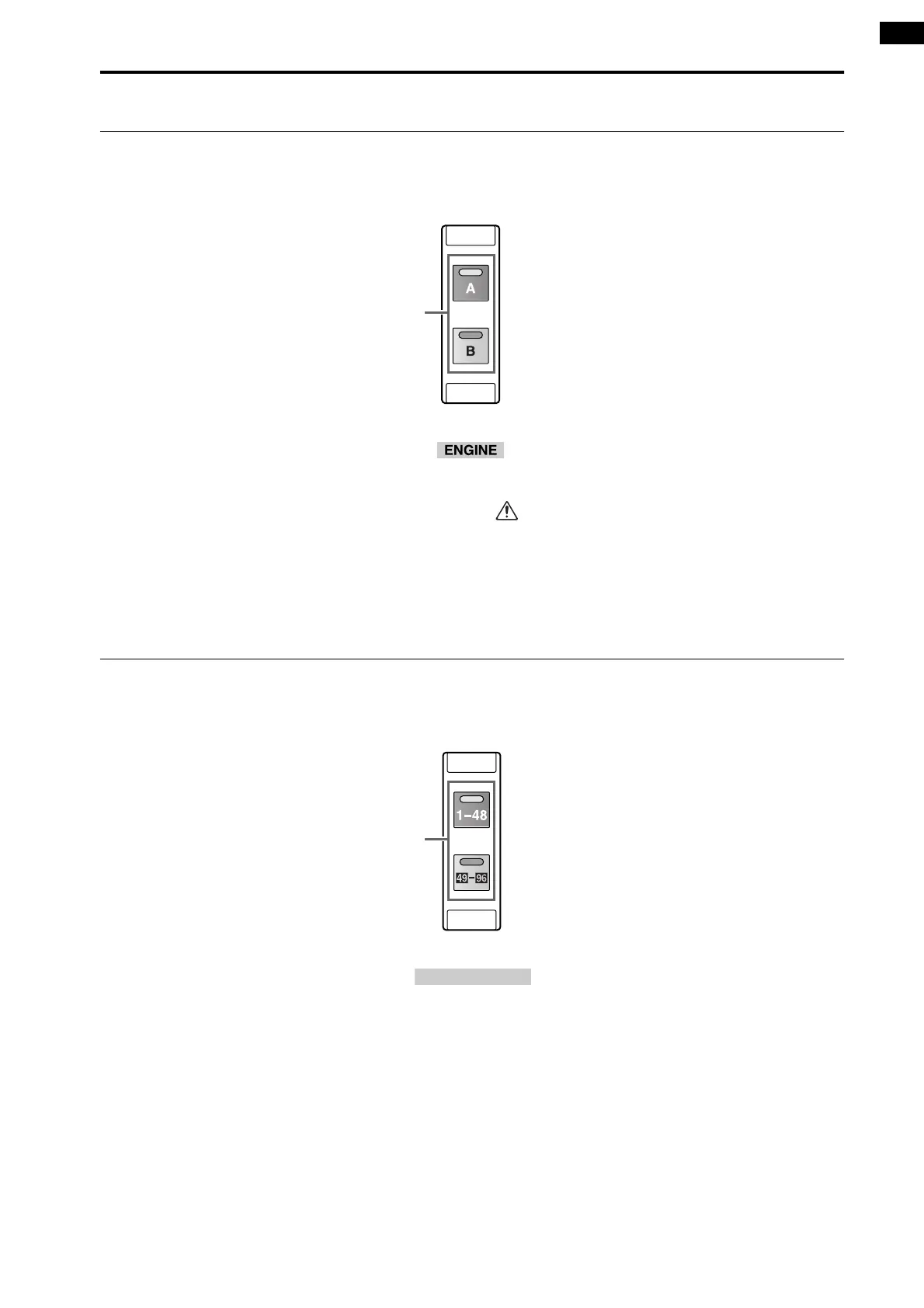

ENGINE section
If two DSP1D (or DSP1D-EX) DSP units are connected to a single CS1D, this section selects the DSP unit that will be
controlled.
1 ENGINE [A]/[B] switches and LEDs
These switches select which of two DSP1D (or
DSP1D-EX) DSP units will be controlled by the
CS1D.
The LED of the currently selected switch will light.
PM1D system version 1.0 does not support addi-
tional DSP units except when using Mirror mode.
GLOBAL LAYER section
On 96 channel models with a DSP card installed in the DSP unit, this section selects the input channels that will be con-
trolled. {On 48 channel models this section has no function.}
1 [1–48]/[49–96] switches and LEDs
These switches select either channels 1–48 or 49–96
as the input channels to be controlled by INPUT
blocks 1–4 of a 96 channel model.
In the same way you can switch between 1–4 or 5–8
as the ST IN channels that will be controlled in the
ST IN block.
The LED of the currently selected switch will light.
