INPUT GATE LIBRARY
[Function]
Here you can store and recall gate settings (input gate data) for the currently selected input channel.
■ Display
MENU button → IN GATE/COMP
button → GATE PARAMETER tab
→ INPUT GATE LIBRARY button

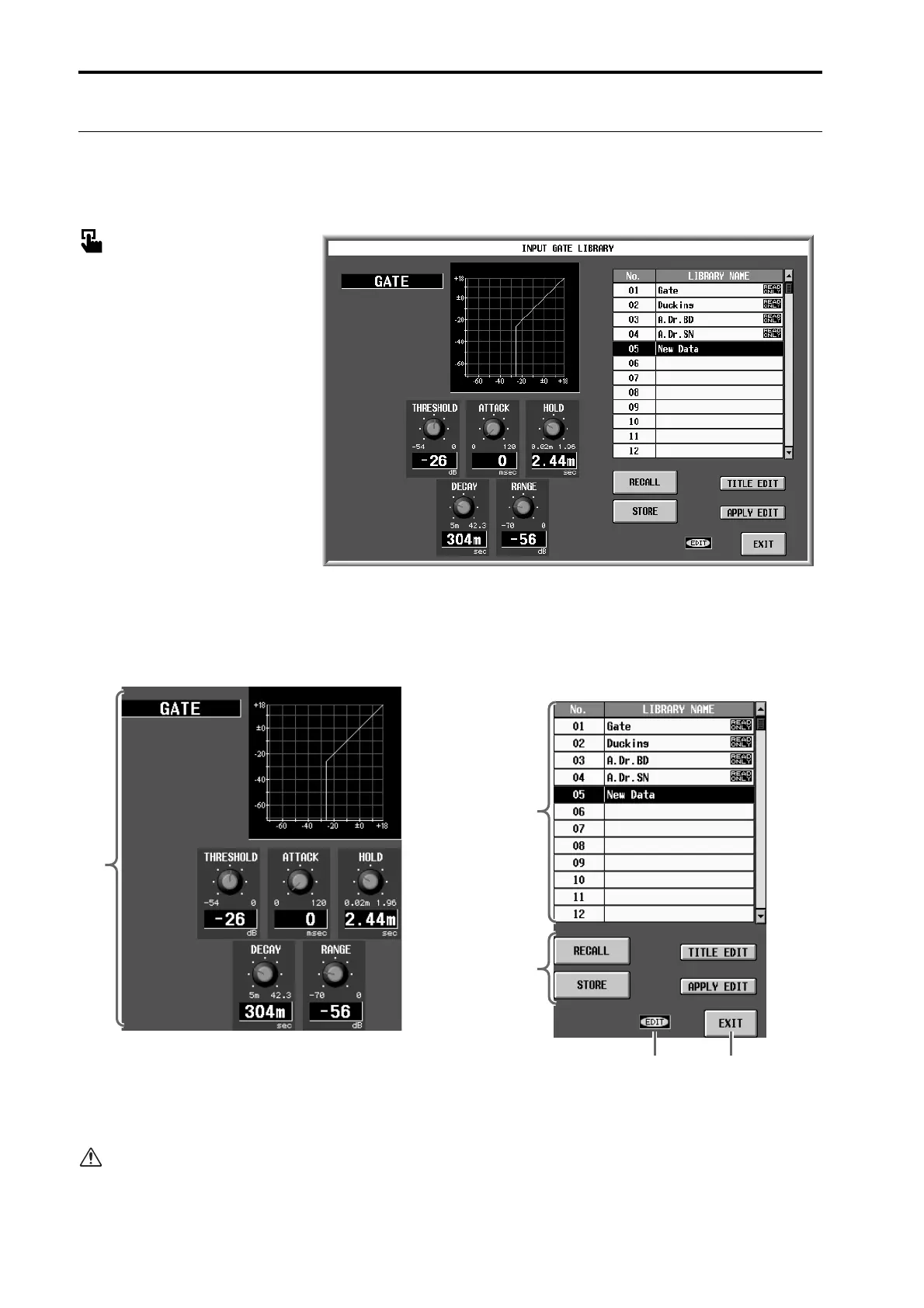

[Screen functions]
1 Edit section
This area displays the settings of the input gate data
currently selected in the library list (2). You can use
the buttons and knobs to edit the data.
It is not possible to change the type here. If you
wish to change the type, you must recall library
data that uses the desired type.
2 Library list
This shows a list of the input gate data stored in
memory.
The highlighted line is currently selected for opera-
tions.
