Connections (Mirror mode)
This section explains connections for Mirror mode, in which one console (CS1D) is connected to two engines (DSP1D-
EX {DSP1D}).
Connecting the console and engines (Mirror mode)

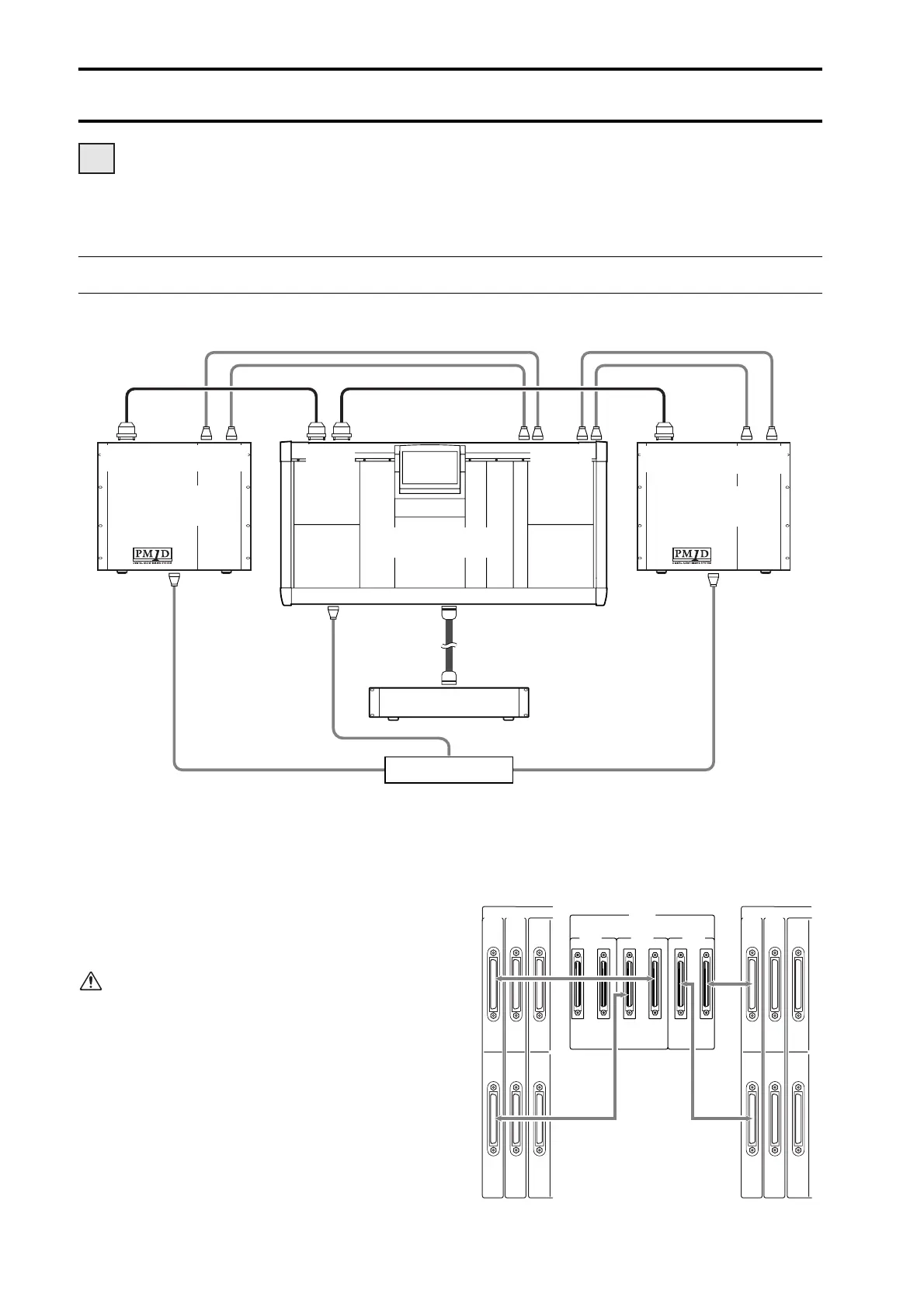

The following diagram shows typical connections between the console and engines for Mirror mode.
1 Digital input/output connections
Use the included D-sub half pitch 68 pin cables to
connect the DIGITAL I/O ENGINE A connector of
the console to the CONSOLE I/O connector of engine
A, and the DIGITAL I/O ENGINE B connector of the
console to the CONSOLE I/O connector of engine B.
These connectors transmit and receive multi-channel
digital audio signals.
• Use only Yamaha-manufactured D-sub half pitch 68
pin cables to connect the digital input/output con-
nectors. Operation cannot be guaranteed if any other
cables are used.
• If you need cables of a different length than the
included D-sub half pitch 68 pin cables, please con-
tact your dealer.
• The console and engines A/B each have two identical
sets of digital input/output connectors, numbered 1
and 2.
These two sets of connectors are completely identi-
cal, and the system will operate normally if just one
set is connected. However, you may connect both 1
and 2 so that one of them can be used as a backup.
This method of connection is recommended for
most cases.
