Basic operation of the SELECTED OUTPUT CHANNEL block
This section explains how to use the SELECTED OUTPUT CHANNEL block to control an output channel. In the
SELECTED OUTPUT CHANNEL block, you can select one channel from the MIX channels, MATRIX channels, or L/R
of the STEREO A/B channels, and use the EQ and compressor to process the signal before outputting it to an output unit
or to another bus.
Controls and functions of the SELECTED OUTPUT CHANNEL block
The controls and functions of the SELECTED OUTPUT CHANNEL block are summarized below.

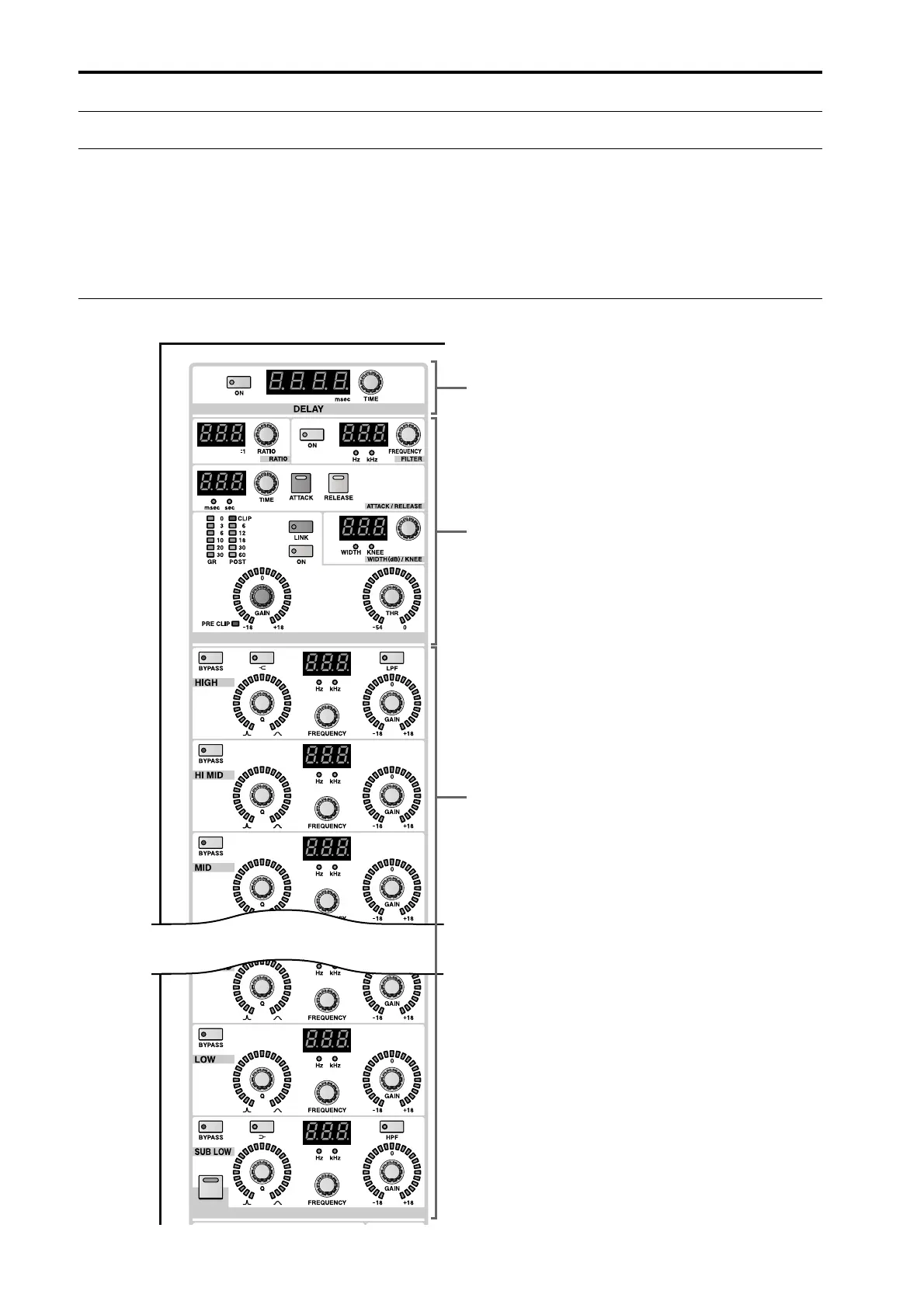

COMPRESSOR
EQ ON
EQUALIZER
Q
DELAY section
Make settings for the internal delay function.
COMPRESSOR section
Make settings for the internal compressor.
EQUALIZER section
Make settings for the internal 6 band EQ (HIGH, HIGH MID,
MID, LOW MID, LOW, SUB LOW).
