CS1D Operating Manual (Basic Operation)
26

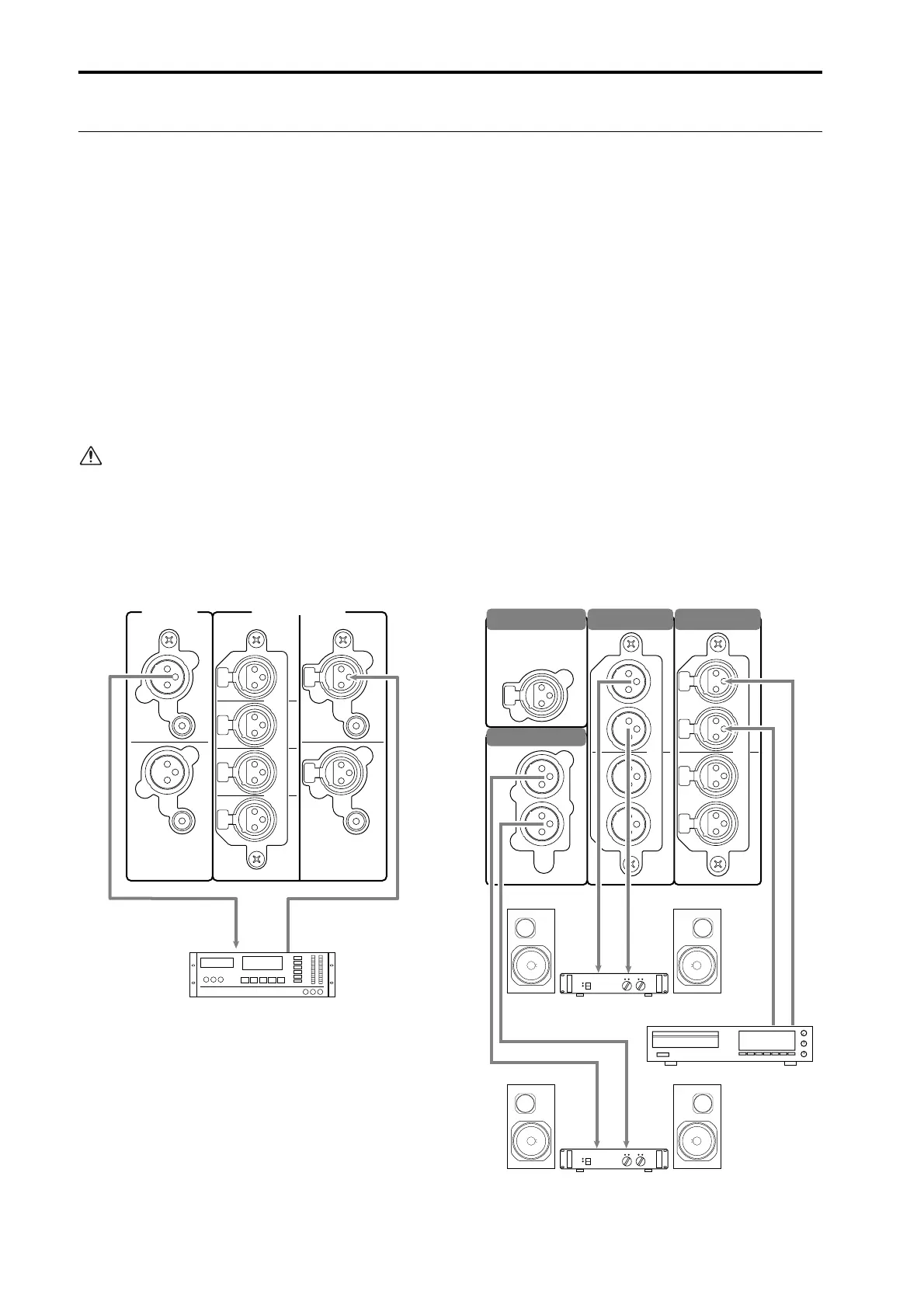

Audio connections for the console
In the PM1D system, most of the signal processing is performed in the input/output units and in the engine, and the
console simply controls their operation. However as exceptions, the CS1D also has the following input/output jacks.
• 2-TRACK IN DIGITAL AES/EBU jacks (1–6)
These are AES/EBU (XLR-3-31) jacks for inputting
AES/EBU format digital sources from an external
device such as a CD player or DAT recorder.
• 2-TRACK IN DIGITAL COAXIAL jacks (1–2 only)
These are coaxial (RCA phono) jacks for inputting
consumer format (IEC60958) digital sources from an
external device such as a CD player or DAT recorder.
• 2-TRACK IN ANALOG L/R jacks (1–2)
These are XLR-3-31 (balanced) input jacks for input-
ting stereo analog signals from an external device.
For 2-TRACK IN DIGITAL AES/EBU jacks 1/2 and
2-TRACK IN DIGITAL COAXIAL jacks 1/2, only
one type of jack can be used simultaneously. The
type of jack that will be used can be selected in the
display (MON/CUE function 2TR IN screen).
• Audio connections for the console 1
• STEREO OUT DIGITAL AES/EBU jacks (A/B)
These are AES/EBU (XLR-3-32) jacks that digitally
output the STEREO A/B channel signals in AES/EBU
format.
• STEREO OUT DIGITAL COAXIAL jacks (A/B)
These are COAXIAL (RCA phono) jacks that digi-
tally output the STEREO A/B channel signals in con-
sumer format (IEC60958).
• MONITOR OUT ANALOG jacks (A/B)
These are XLR-3-32 (balanced) jacks that output the
monitor A/B signals.
• CUE OUT ANALOG jacks (A/B)
These are XLR-3-32 (balanced) jacks that output the
cue signals.
• Audio connections for the console 2
DAT
00.00.00.00
A
AES
/EBU
COAXIAL
STEREO OUT
DIGITAL
B
AES
/EBU
COAXIAL
AES
/EBU
AES
/EBU
AES
/EBU
AES
/EBU
2-TRACK IN DIGITAL
1
3
4
5
6
AES
/EBU
COAXIAL
2
AES
/EBU
COAXIAL
DIGITAL OUTDIGITAL IN
DAT recorder
L
A
B
R
L
R
L
R
1
2
L
R
L
R
MONITOR OUT
ANALOG
TALKBACK IN 2
CUE OUT
ANALOG
2-TRACK IN
ANALOG
ANALOG OUT
Monitor system
CD player
Cue system
