Yamaha CS1D - Connect an Input Source

32
Connect an input source
Connect one of the following input sources according to the type of input unit or card that you wish to check.
• To check a mic/line input card (LMY2-ML)
installed in the AI8
Connect a line output device such as a CD player or
DAT recorder to input jacks 1A and 2A of the LMY2-
ML.
• To check an AD card (LMY4-AD) installed in the
AI8
Connect a line output device such as a CD player or
DAT recorder to input jacks 1/2 of the LMY4-AD.
• To check an input channel of a digital I/O card
(MY8-AT, MY8-TD, MY8-AE) installed in the DIO8
Connect the digital output connector of a DAT
recorder or digital MTR (multi-track recorder) that
matches the format of your digital I/O card. In this
case, make connections and settings so that the sig-
nals are sent from the recorder to input channels 1/2
of the digital I/O card.

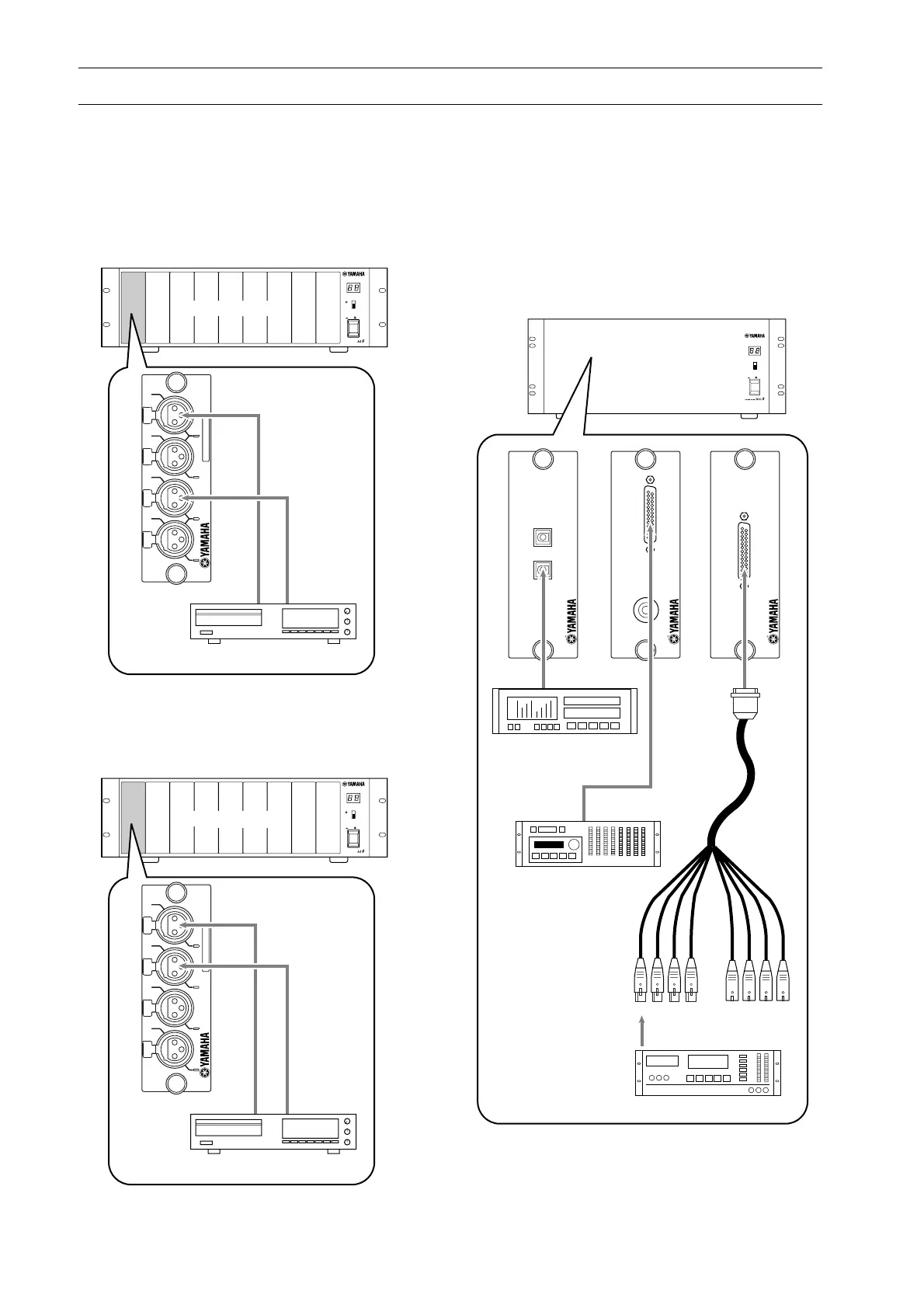

INPUT UNIT NO.
