[Function]
View a list of the gate/compressor settings for each input channel. Also, copy settings between input channels.
■ Console
In the LCD FUNCTION ACCESS
block, press the INPUT [GATE/
COMP] switch (press repeatedly
until the screen shown at the right
appears)
■ Display
MENU button → INPUT GATE/
COMP button → The tab for the
desired input channel

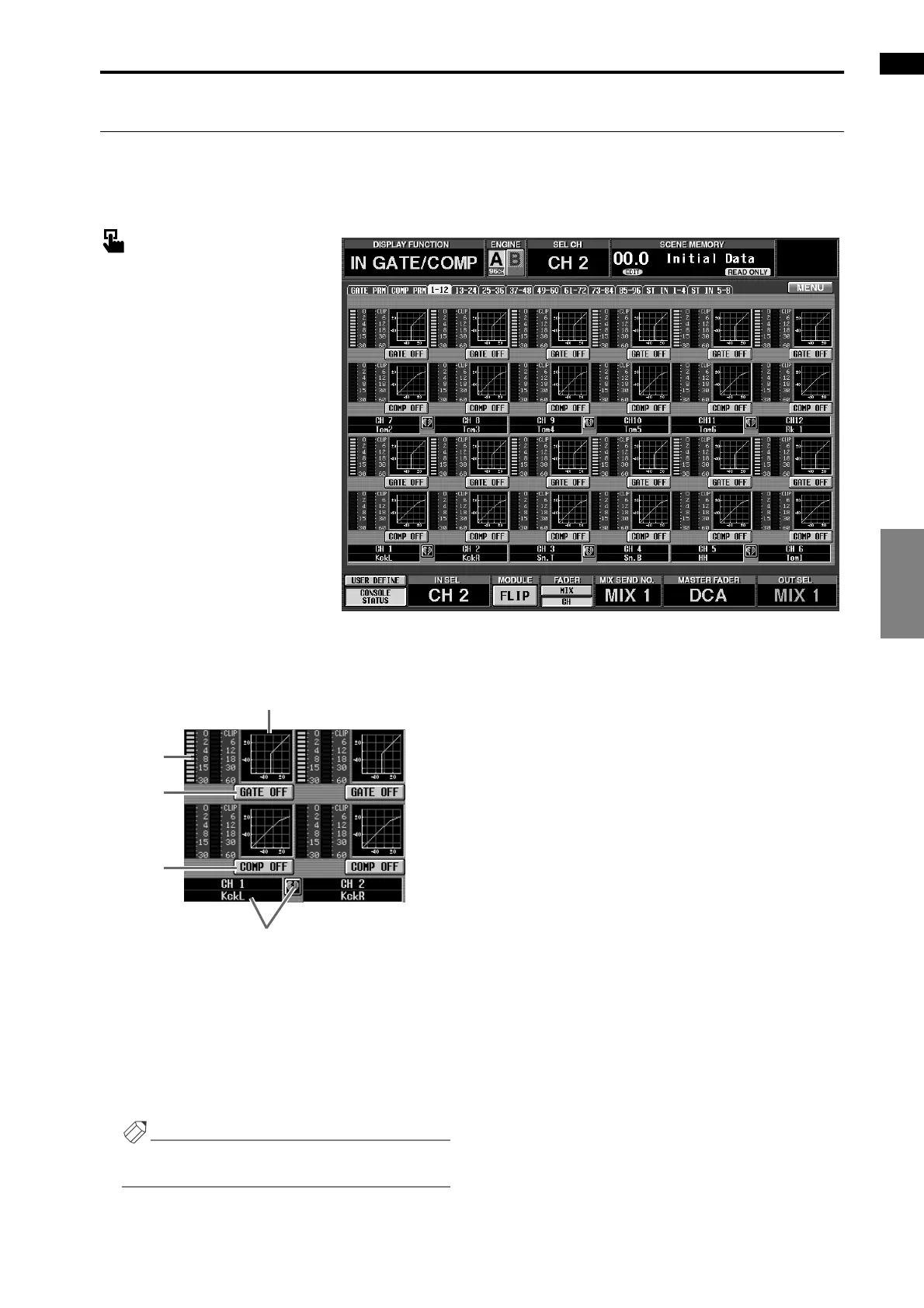

[Screen functions]
1 GATE graph
This is a mini-graph that shows the gate/compressor
settings for each input channel. By clicking the graph
where the cursor is located, you can access the
COMP PARAMETER/GATE PARAMETER popup
window for the corresponding channel. By dragging
the graph area to another input channel, you can
copy settings.
Hint
For two paired channels or a stereo input channel,
the graph will be shared by the two channels.
2 Meters
These meters show the gain reduction amount of the
gate and compressor, and the peak levels after pass-
ing through the gate/compressor.
3 GATE ON/OFF
This button switches the gate on/off. It is linked with
the GATE ON/OFF button in the GATE PARAME-
TER popup window.
4 COMP ON/OFF (compressor on/off)
This button switches the compressor on/off.
It is linked with the COMP ON/OFF button in the
COMP PARAMETER popup window.
5 Pair setting
This displays the input channel number and its pair-
ing status.
You can also click the heart symbol to enable/defeat
pairing.
2
3
4
1
5
