CS1D Reference Manual (Hardware)
108

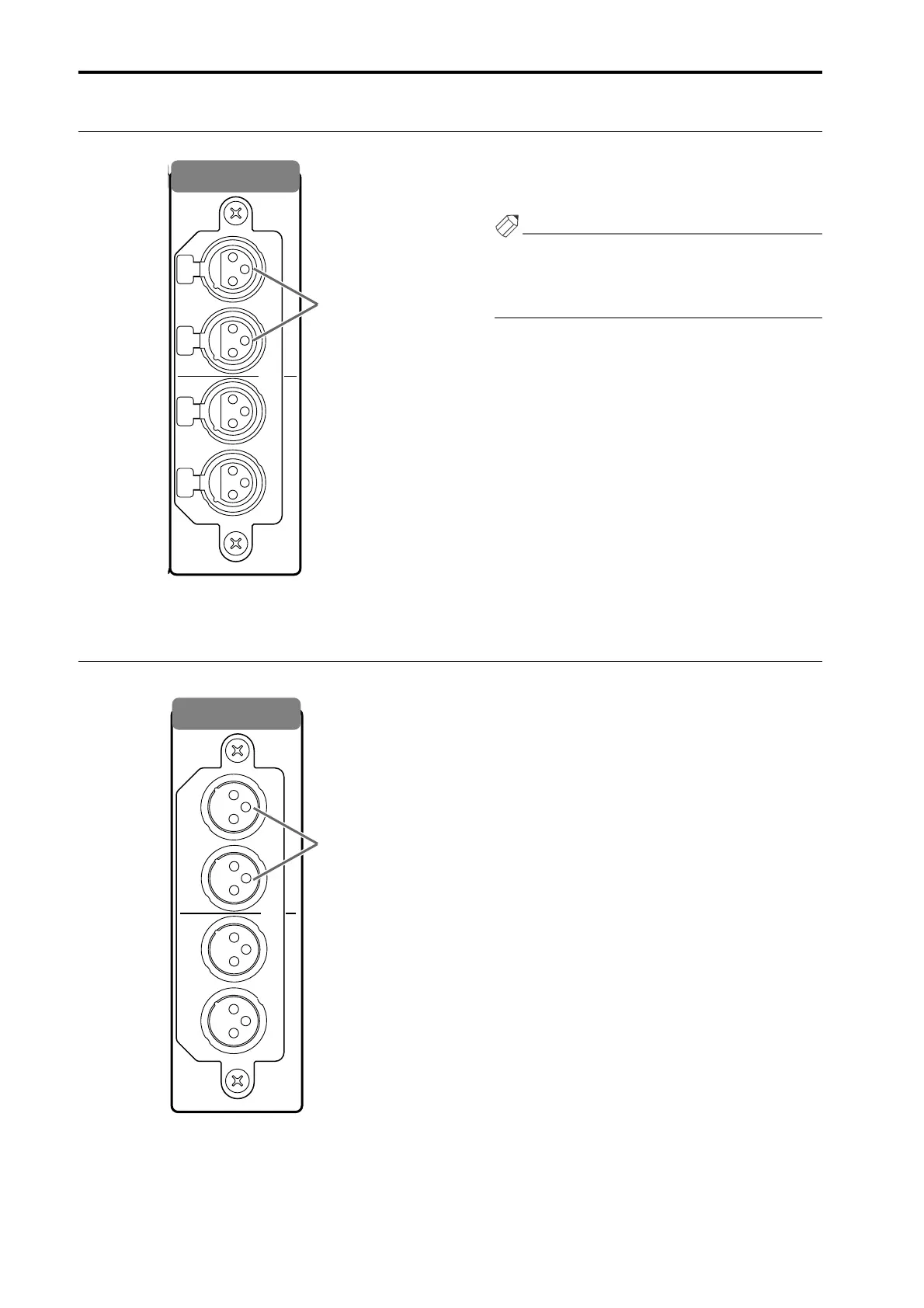

2-TRACK IN ANALOG section
1 2-TRACK IN ANALOG L/R jacks (1–2)
These are XLR-3-31 (balanced) jacks that input ste-
reo analog signals from external devices.
Hint
The signals that are input from these jacks can be
patched in the display (IN PATCH function INPUT
PATCH screen)to any desired input channel or ST IN
channel.
MONITOR OUT ANALOG section
1 MONITOR OUT L/R jacks (A/B)
These are XLR-3-32 (balanced) jacks that output the
monitor A/B signals.
1
2
L
R
L
R
2-TRACK IN
ANALOG
1
L
A
B
R
L
R
MONITOR OUT
ANALOG
1
