MIDI PROGRAM (MIDI program change)
[Function]
When a MIDI program change is received from an external device, the event (scene recall/effect recall) that
you specified for that program number will be executed.
Also, when the corresponding event is executed on the CS1D, a MIDI program change message will be trans-
mitted to the external device.
This function will operate only while the CS1D and DSP1D are connected and operating.
■ Console
In the LCD FUNCTION ACCESS
block, press the [MIDI/GPI/TC]
switch (press repeatedly until the
screen shown at the right appears)
■ Display
MENU button → MIDI/GPI/TC
button → MIDI PROGRAM tab
[Screen functions]

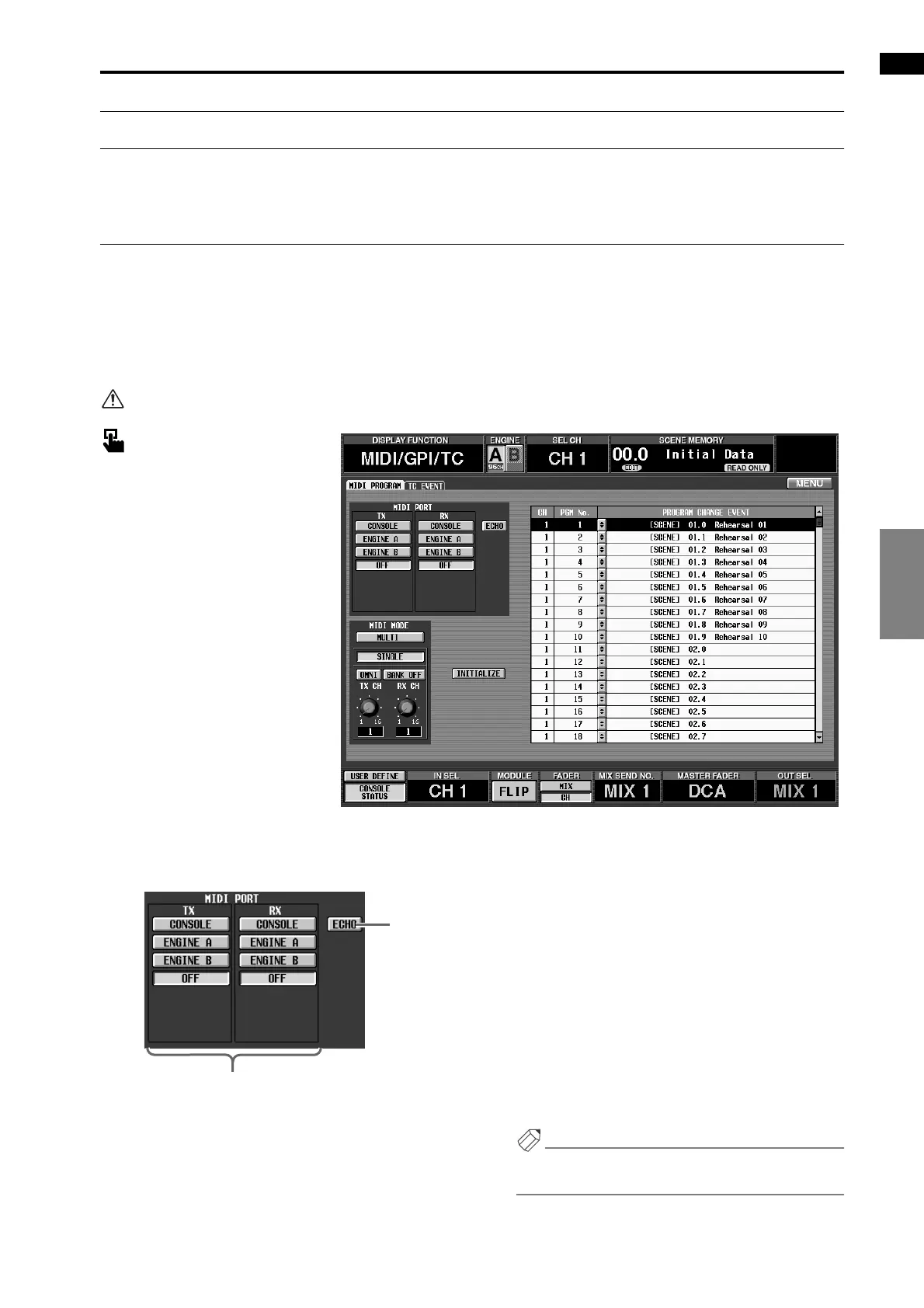

1 MIDI PORT TX/RX (MIDI transmission/reception
port)
From the following choices, select the port that will
transmit (TX) or receive (RX) MIDI program change
messages.
• CONSOLE ......... The MIDI IN/OUT connectors
on the rear panel of the CS1D
• ENGINE A ......... The MIDI IN/OUT connectors
of the DSP1D-EX {DSP1D} con-
nected to the ENGINE A con-
nector of the CS1D
• ENGINE B ......... The MIDI IN/OUT connectors
of the DSP1D-EX {DSP1D} con-
nected to the ENGINE B connec-
tor of the CS1D
• OFF..................... MIDI messages will not be trans-
mitted or received
Hint
You can specify different ports for transmission and
reception.
