Rear panel block
107

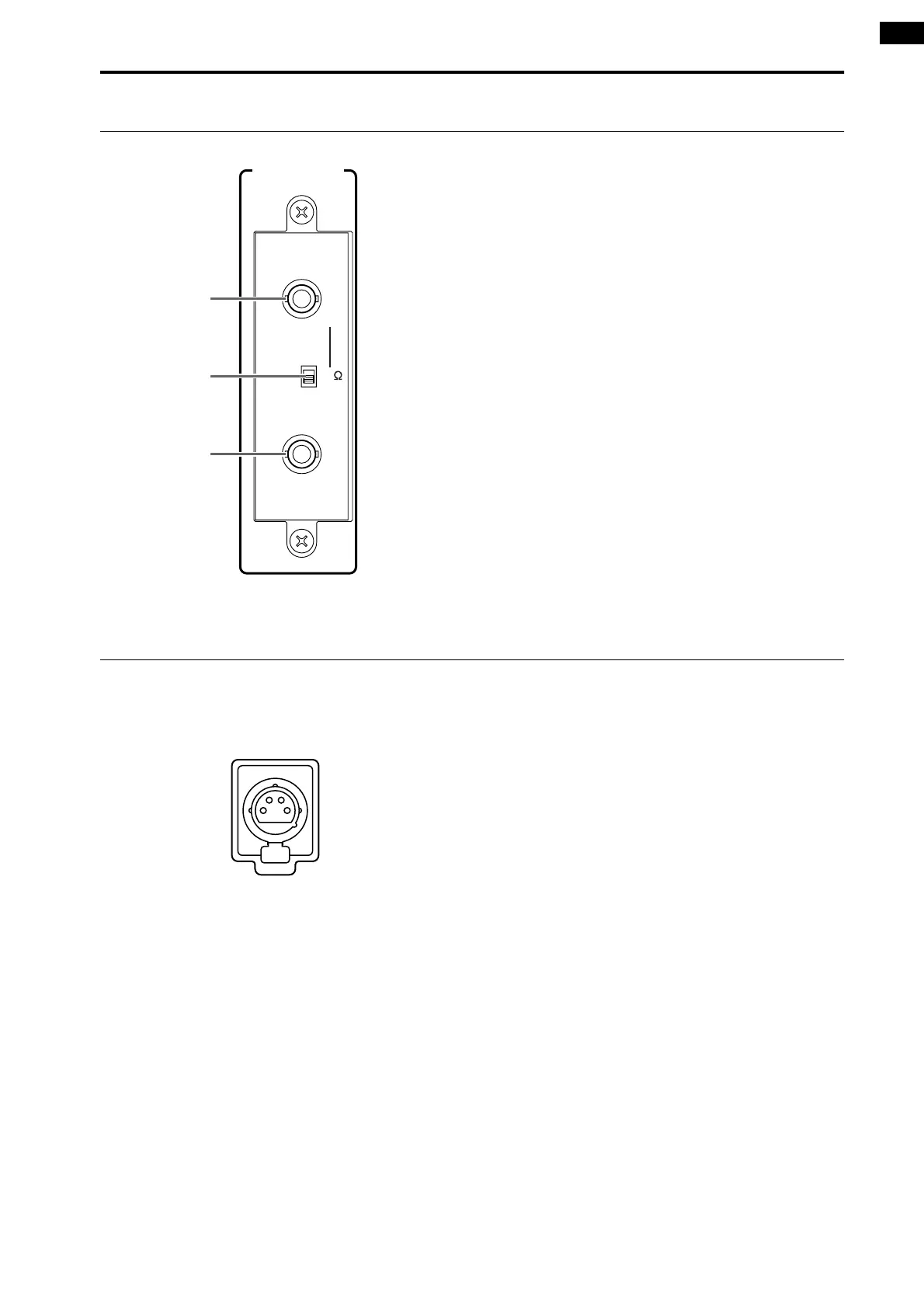

WORD CLOCK section
1 WORD CLOCK IN connector
This is a BNC connector that supplies a word clock
from an external device to the CS1D. Synchroniza-
tion must be achieved with the word clock that is
being input to other devices of the PM1D system.
2 WORD CLOCK OUT connector
This is a BNC connector that supplies a word clock
from the CS1D to an external device.
3 75 Ω [ON/OFF] switch
This switch terminates the word clock connector.
In general, this should be turned ON if the CS1D is
the last device in the word clock connection chain, or
if nothing is connected to the WORD CLOCK IN/
OUT connectors.
LAMP connectors
These are 4-pin female XLR output jacks that supply
power to the optional lamps. (These jacks are provided
in four locations.)
LAMP DIMMER encoder
An encoder for controlling the brightness of the lamp
connected to the LAMP connector is located at the left
side of the meter section (right). Rotating this toward
the right will brighten the lamps; rotating it toward the
left will darken them.
WORD CLOCK
IN
75
ON
OFF
OUT
1
3
2
LAMP
