CS1D Operating Manual (Basic Operation)
60
Switching the channel assignments
When the PM1D system is in its initial state, MIX chan-
nels 1–24 are assigned to the MIX OUTPUT block.
However, this assignment can be changed as follows by
the MIX LAYER [1-24]/[25-48] switches of the MIX
OUTPUT block.

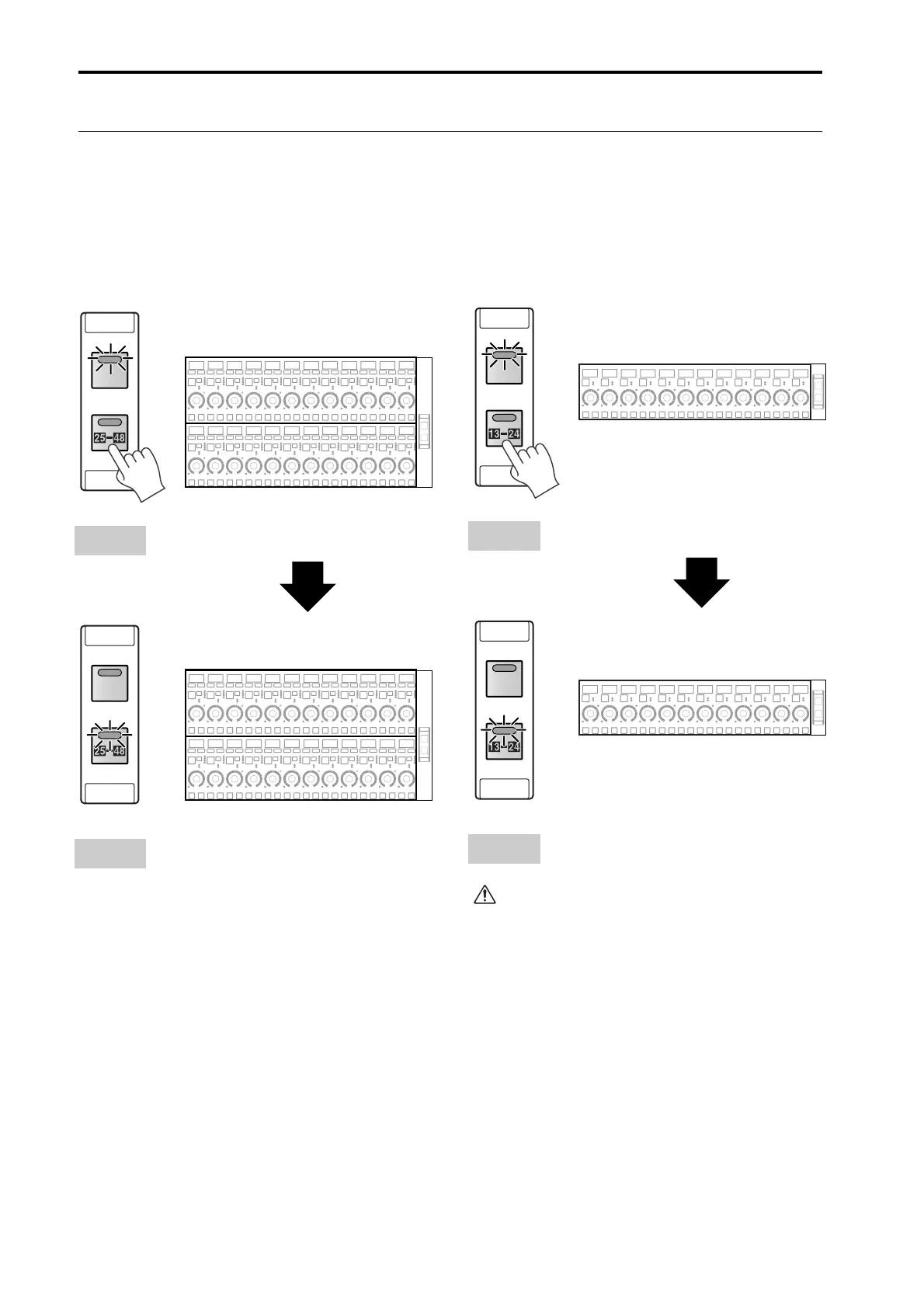

• Using the MIX LAYER [1-24]/[25-48] switches to
change the channel assignments
Similarly, MATRIX channels 1–12 are assigned to the
MATRIX block when the PM1D system is in its initial
state, but this assignment can be changed as follows by
the MATRIX LAYER [1-12]/]13-24] switches of the
MATRIX OUTPUT block.
• Using the MATRIX LAYER [1-12]/[13-24] switches
to change the channel assignments
If operating the MIX OUTPUT block
/
MATRIX
OUTPUT block does not produce the result you
expect, check that the above switches are set appro-
priately.
1 - 24
MIX
LAYER
1 - 24
MIX 1-12
MIX
LAYER
MIX 13-24
MIX 25-36
MIX 37-48
MIX OUTPUT block
MIX OUTPUT block
1 - 12
MATRIX
LAYER
1 - 12
MATRIX
LAYER
MATRIX 1-12
MATRIX 13-24
MATRIX OUTPUT block
MATRIX OUTPUT block
