MIX LAYER section
In this section you can select the group of channels that will be controlled by the MIX channel section.

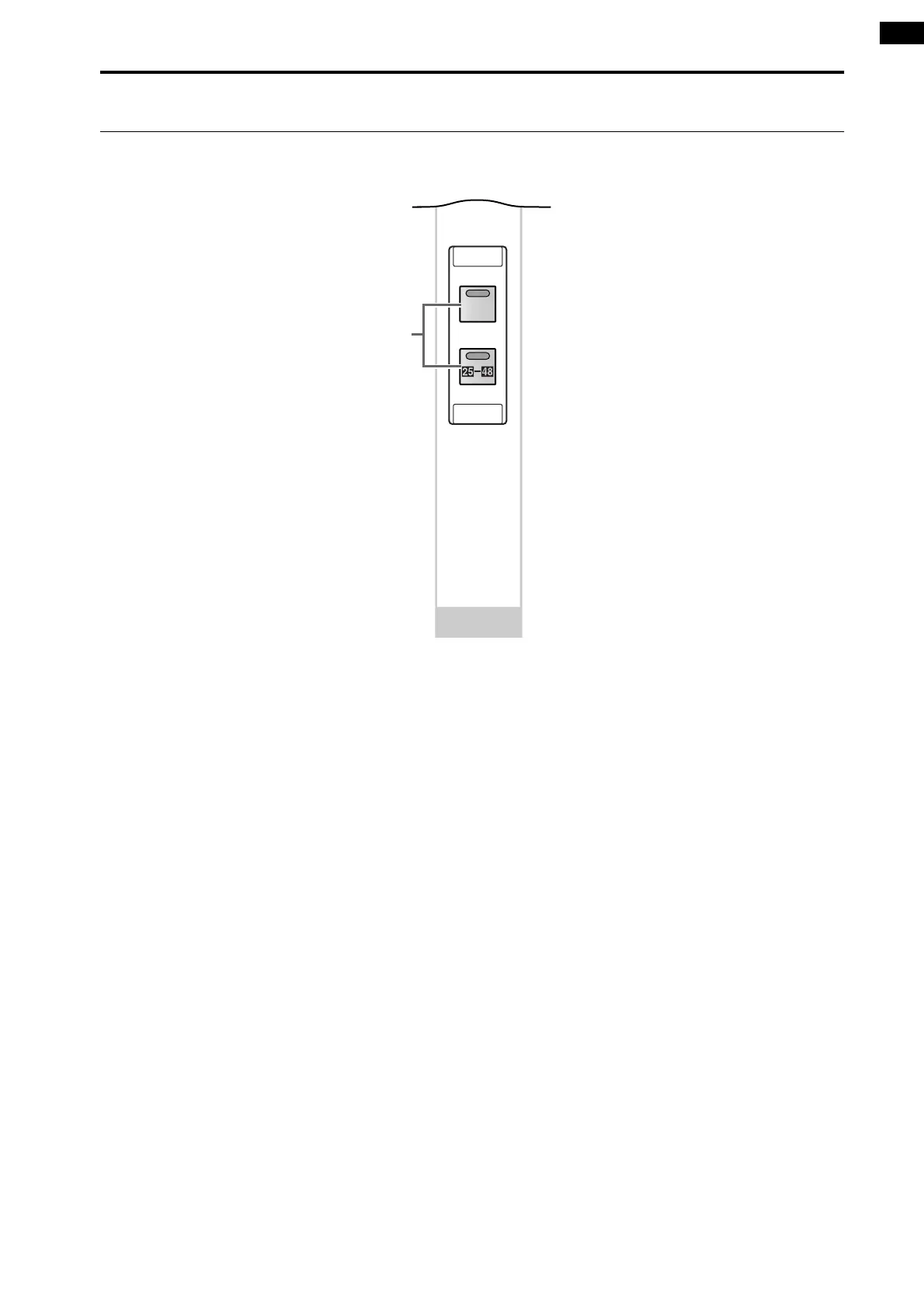

1 MIX LAYER [1–24]/[25–48] switches and LEDs
These switches select the channels that will be con-
trolled by the MIX channel section.
The channels controlled by the MIX channel section
will change as follows, according to the switch that is
turned on.
• When the MIX LAYER [1–24] switch is on
MIX channels 1–24 will be controlled.
• When the MIX LAYER [25–48] switch is on
MIX channels 25–48 will be controlled.
