INPUT block
5
INPUT block channel assignments
The top panel of the CS1D has four blocks located at top, bottom, left and right.
When the PM1D system is in the default state, channels 1–12, 13–24, 25–36, and 37–48 are assigned to these blocks in the
order of lower left → upper left → lower right → upper right. These assignments can be changed as follows in the
SELECTED INPUT CHANNEL block MODULE FLIP section, and in the MASTER block GLOBAL LAYER section. {The
GLOBAL LAYER section has no effect on the 48 channel model.}

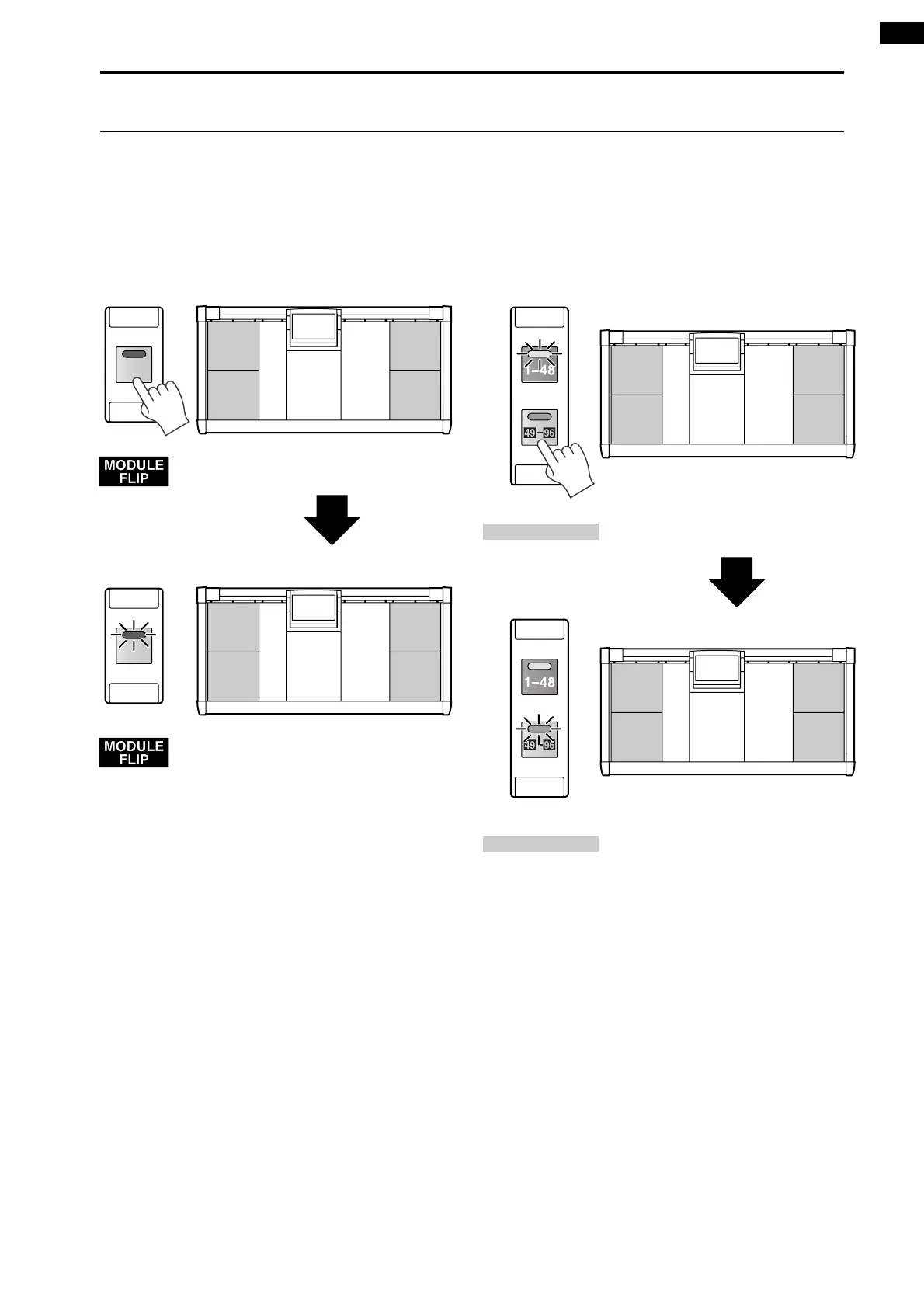

Using the MODULE [FLIP] switch to change the
channel assignments
Using the GLOBAL LAYER switches to change the
channel assignments (96 channel model only)
FLIP
FLIP
CH 13-24
CH 1-12
CH 37-48
CH 25-36
CH 1-12
CH 13-24
CH 25-36
CH 37-48
INPUT block
INPUT block
GLOBAL LAYER
GLOBAL LAYER
CH 13-24
CH 1-12
CH 37-48
CH 25-36
CH 61-72
CH 49-60
CH 85-96
CH 73-84
INPUT block
INPUT block
