Input functions
162

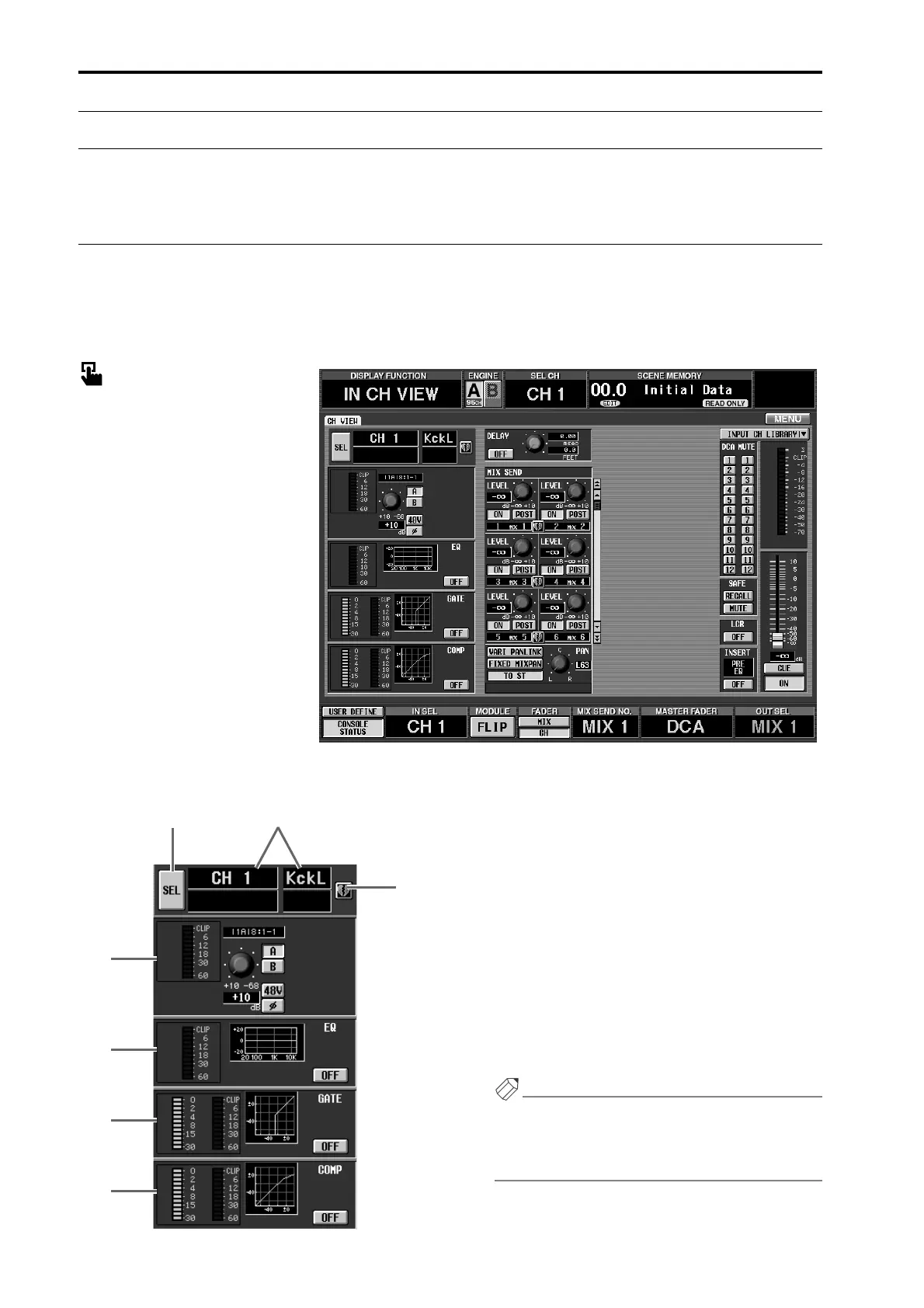

IN CH VIEW (input channel view) function
View the settings of an input channel
CH VIEW (channel view)
[Function]
View the settings of the currently selected input channel/ST IN channel. In this screen you can also edit the
parameter settings and access individual screens.
■ Console
In the LCD FUNCTION ACCESS
block, press the INPUT [CH VIEW]
switch
■ Display
MENU button → CH VIEW tab
[Screen functions]
1 SEL (channel select)
Use this button to select the channel that you wish to
view and control.
When you click this button, the CH SELECT popup
window will appear.
2 Channel number/name
This displays the number and short name of the cur-
rently selected channel.
3 Pairing
This displays the pairing status of the currently
selected channel.
You can also click the heart symbol to set/defeat pairing.
Hint
When a paired input channel or a ST IN channel is
selected, a single screen will display the parameters
for both channels, as shown in the following illustra-
tion.
1
3
2
4
5
6
7
