MATRIX/ST (matrix/stereo) function
105
OUT PATCHOUT INSERTOUT EQOUT COMPOUT DELAY
OUT DCA/MUTE
MATRIX/STOUT CH VIEW
MATRIX/ST (matrix/stereo) function
Send signals from the MIX channels, STEREO A/B channels, and SUB IN to the MATRIX buses

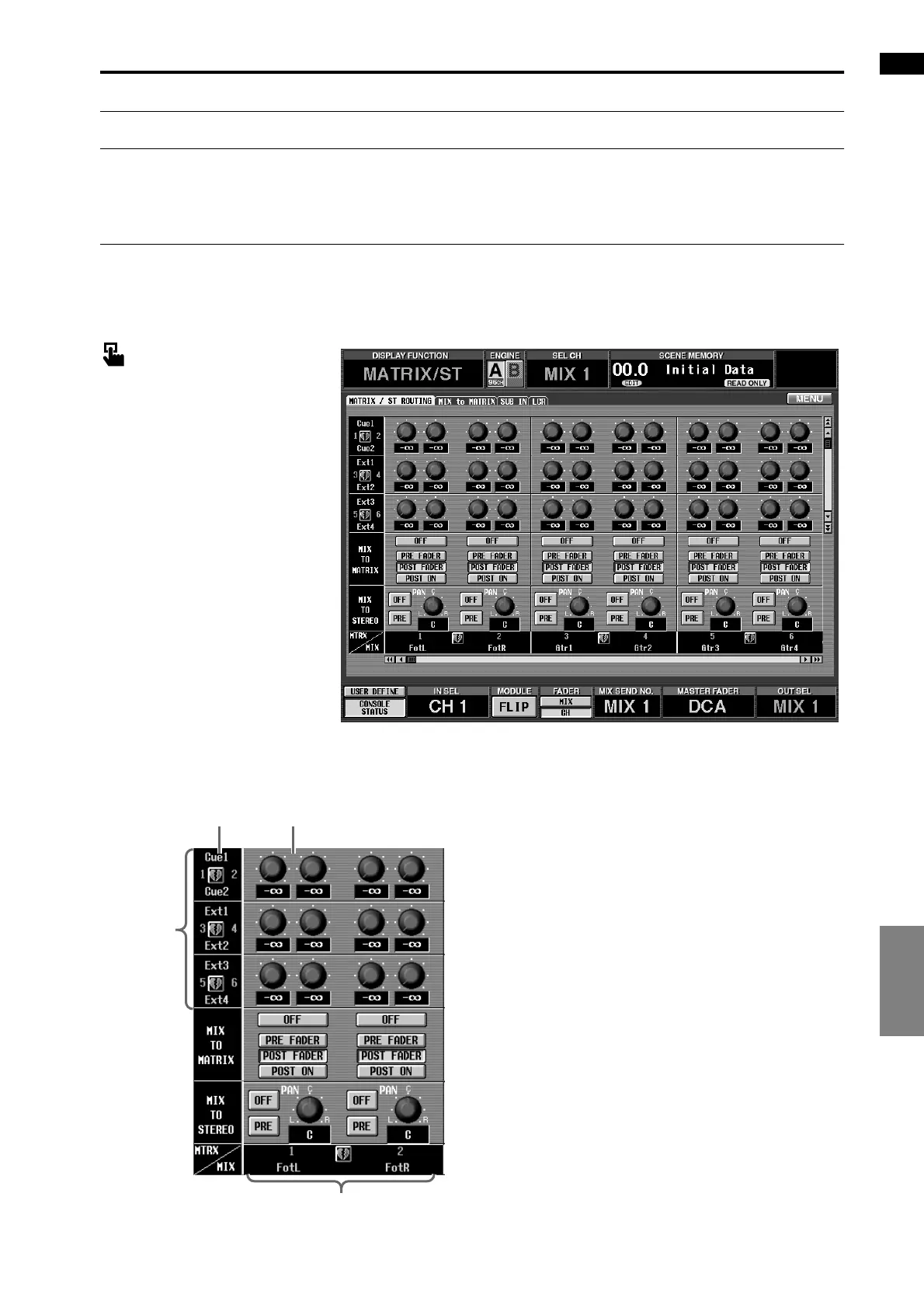

MATRIX/ST ROUTING (matrix/stereo routing)
[Function]
Send signals from the MIX channels and STEREO A/B channels to the desired MATRIX bus.
■ Console
IN the LCD FUNCTION ACCESS
block, press the OUTPUT
[MATRIX/ST] switch (press repeat-
edly until the screen shown at the
right appears)
■ Display
MENU button → OUTPUT
MATRIX/ST button → MATRIX/
ST ROUTING tab
[Screen functions]
1 Pairing
Here you can set/cancel pairing of adjacent odd-
numbered → even-numbered MATRIX buses.
When you click the heart symbol, a popup window
will appear in which you can confirm the pairing set-
ting/cancellation.
2 Send level
Here you can adjust the send level of the signals that
are sent from the MIX channels/STEREO A/B chan-
nels (vertical columns) to the MATRIX bus (hori-
zontal row).
The knobs displayed in this area will change accord-
ing to the pair settings between the send destination
MATRIX buses.
21
MIX channels (send sources)
MATRIX buses
(send
destination)
