Chapter 3. Audio connections and patching
23
• AD card (LMY4-AD)
The LMY4-AD provides four channels of XLR-3-31
(balanced) input jacks that can be used simulta-
neously.

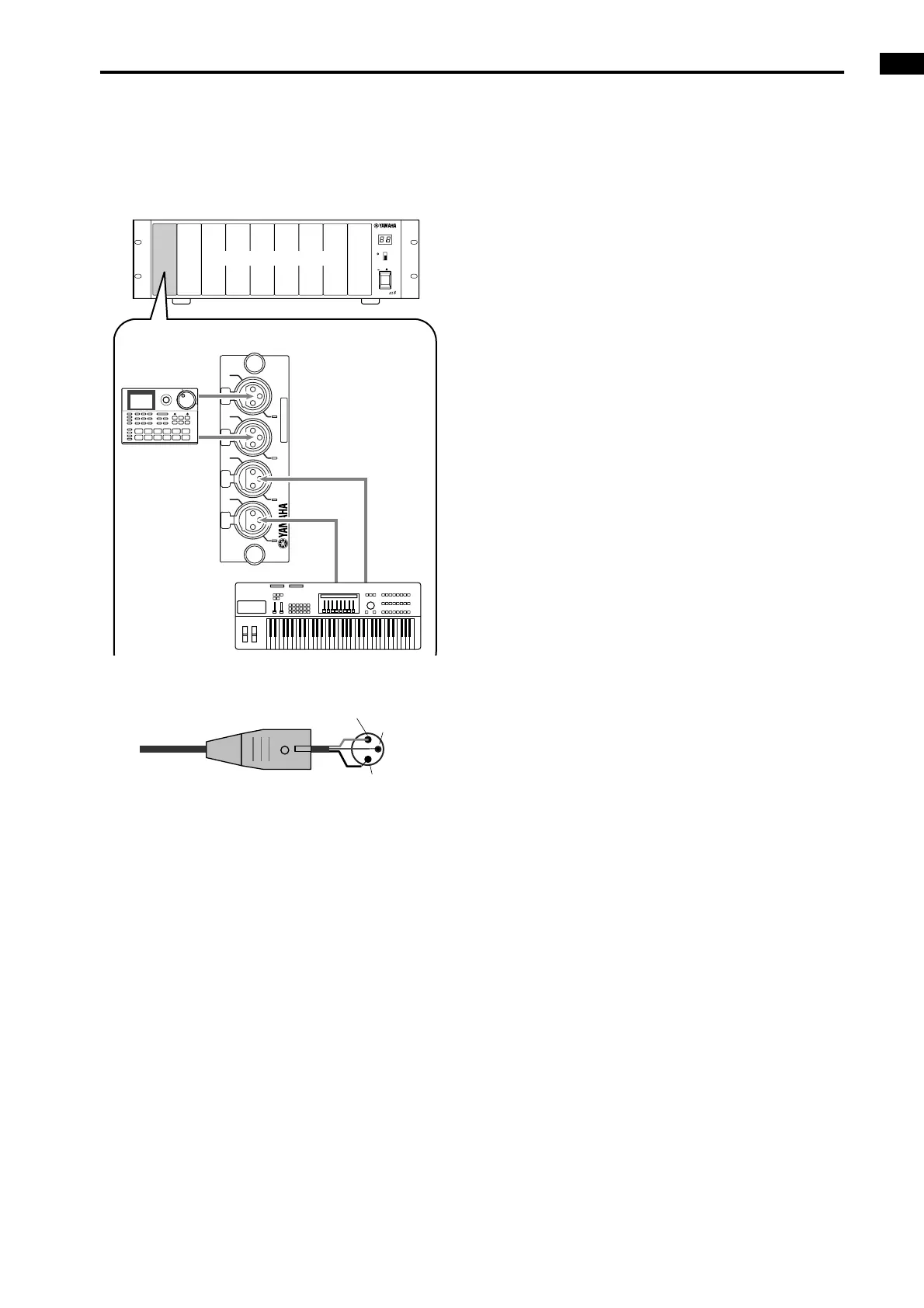

• LMY4-AD connections
The pin wiring is as follows.
• Input jack wiring
INPUT UNIT NO.
PHANTOM MASTER
ON
OFF
+48V
POWER
ON/ OFF
12345 678
ANALOG INPUT BOX
ANALOG IN
CH4
SIGNAL
SIGNAL
AD CARD MODEL LMY4-AD
SIGNAL
SIGNAL
CH3 CH2 CH1
AD-Platine (LMY4-AD)
Synthesizer
Rhythm
machine
AI8 analog input unit
Male XLR plug
1 (ground)
3 (cold)
2 (hot)
