YASKAWA A1000

D.2 European Standards
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 581
Standards Compliance
D
Three-Phase 200 V / 400 V Class
Figure D.5

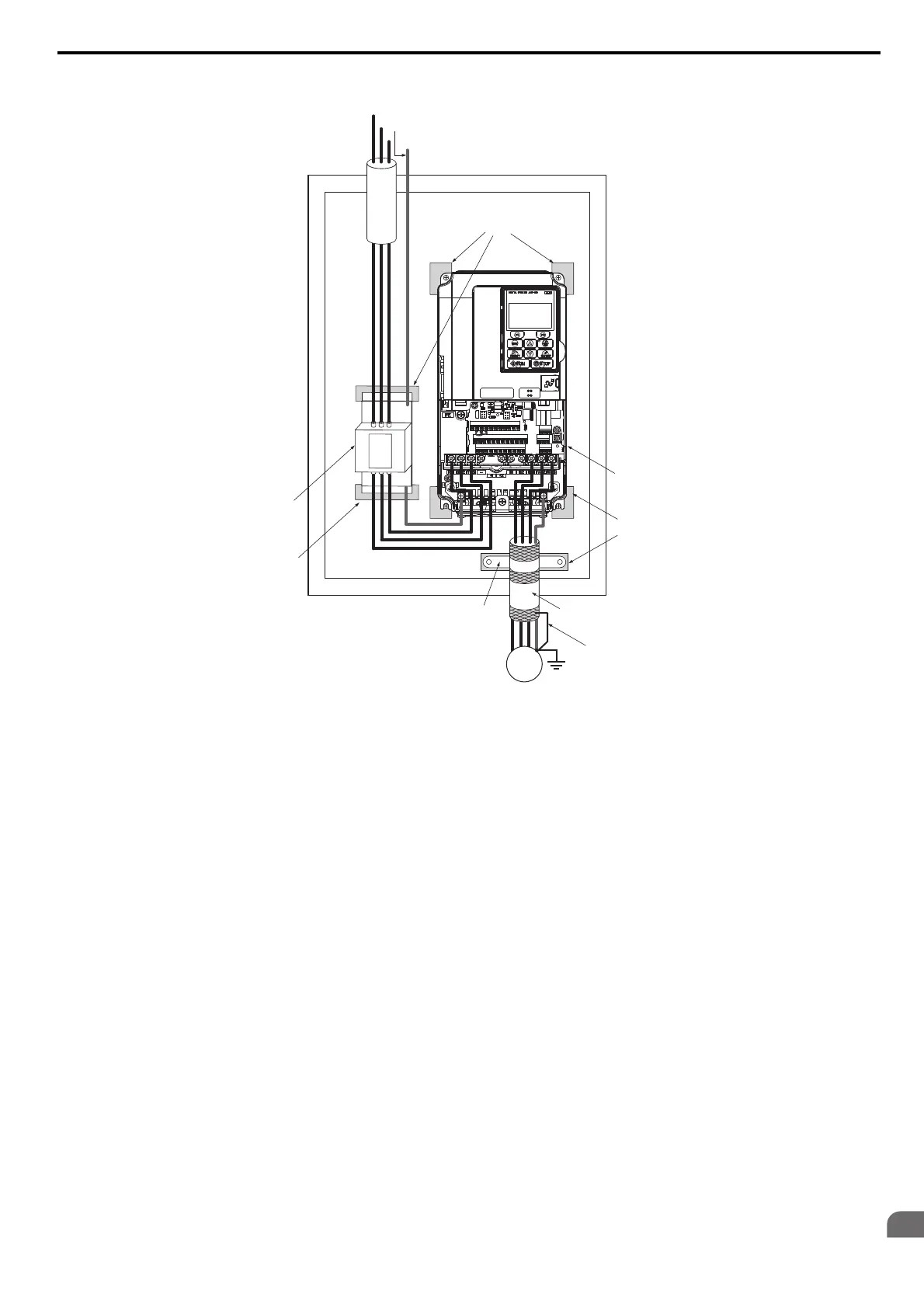

Figure D.5 EMC Filter and Drive Installation for CE Compliance (Three-Phase 200 V / 400 V Class)
A – Ground the cable shield G – Motor
B – Enclosure panel H – Cable clamp
C – Metal plate I – Ground plate (scrape off any visible paint)
D – Grounding surface (remove any paint or sealant) J – EMC noise filter
E – Drive K – Make sure the ground wire is grounded
F – Motor cable (braided shield cable, max. 10 m)
L3L3 L2L2 L1L1L3 L2 L1
E
L3
L2
L1
PE
Make sure the ground wire is grounded
Enclosure panel
Metal plate
Grounding surface
(remove any paint or sealant)
Drive
Grounding surface
(remove any paint or sealant)
Motor cable (braided shield cable, max. 10 m)
Cable clamp
Ground plate
(scrape off any visible paint)
EMC noise filter
Motor
Ground the cable shield
