32 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
1.3 Model Number and Nameplate Check
1.3 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the
information on the nameplate.
• If you have received the wrong model or the drive does not function properly
, contact your supplier.
Nameplate

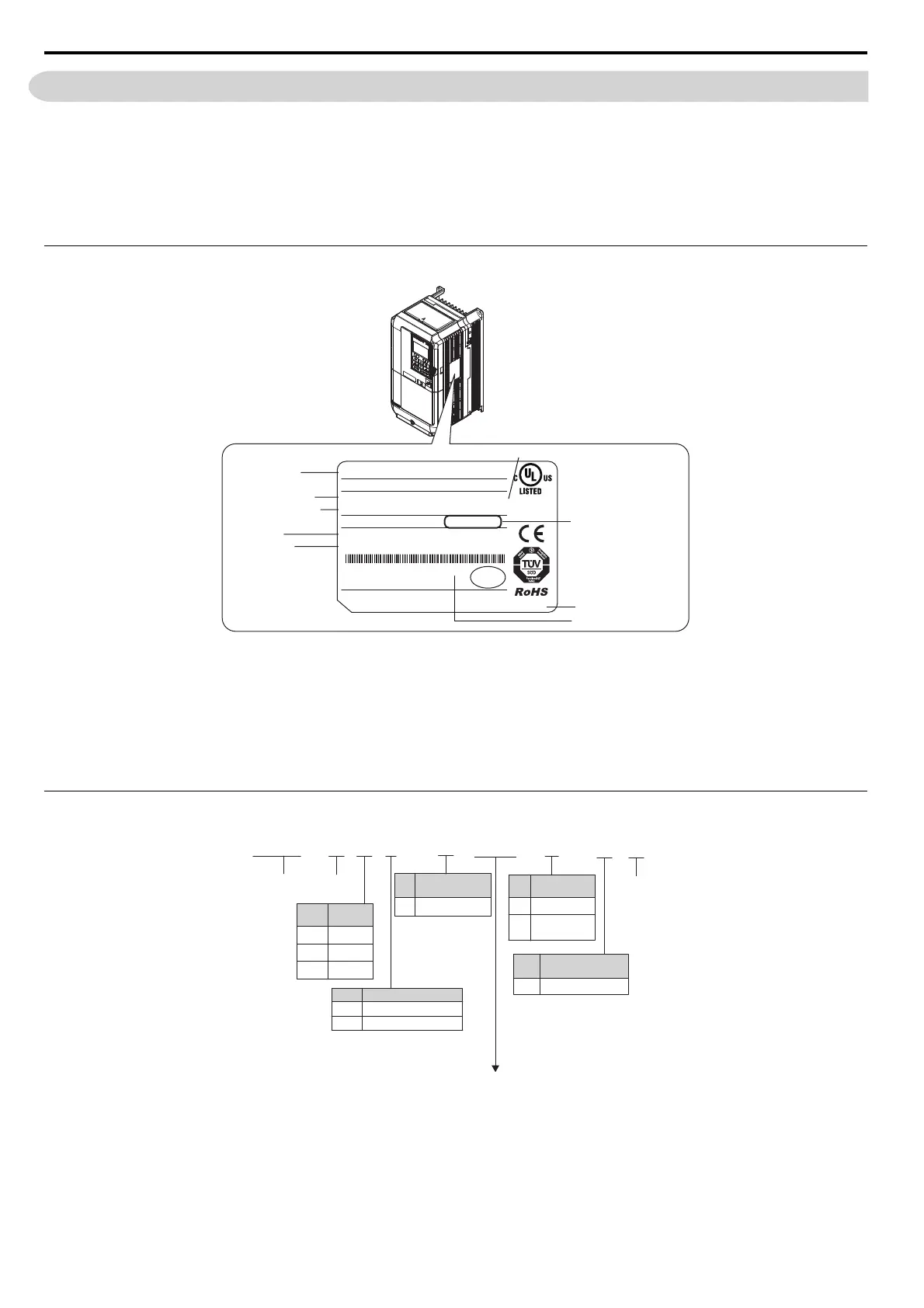

Figure 1.1
Figure 1.1 Nameplate Information
Model Number
<1> Drive models CIMR-A4A0930 and 4A1200 use software version 301. The
availability of certain functions on these models differs from models
CIMR-A2A0004 to 2A0415 and 4A0002 to 4A0675, which use software version
10. Refer to Parameter Differences for models CIMR-A
for details.
<2> The address of the head office of YASKAWA Electric Corporation (responsible for
product liability) is shown on the nameplate.
<1> Contact YASKAWA for information about using drives in environments other than
specified in this manual.
MADE IN JAPAN
<2>
PRG : 1010
GL-COMPLIANT
IND.CONT.EQ.
7J48
CIMR-AC2A0110AAA
:
: AC3PH 200-240V 50/60Hz 111A/82A
: AC3PH 0-240V 0-400Hz 110A/85A
: 21 kg
:
:
: E131457 IP00
PASS
MODEL
MAX APPLI. MOTOR : 30kW / 22kW REV : B
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
YASKAWA ELECTRIC CORPORATION
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
AC drive model
Input specifications
Output specifications
Lot number
Serial number
Software version
<1>
Enclosure type
Normal Duty Amps / Heavy Duty Amps
No.
Enclosure
Type
IP00
F
IP20/NEMA 1,
UL Type 1
A
CIMR
-
A C 2 A 0004 F A A
Drive
A1000
Series
Design
Revision
Order
No.
Customized
Specifications
A Standard model
No.
Region
Code
UUSA
A Japan
C Europe
No. Voltage Class
No.
Environmental
Specification <1>
A Standard
3-phase, 380-480 Vac
3-phase, 200-240 Vac
2
4
Refer to Table 1.3 and Table 1.4.
To Next Page
