YASKAWA A1000

3.3 Main Circuit Configurations
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 63
Electrical Installation
3
3.3 Main Circuit Configurations
Refer to the Table 3.1 when wiring the drive’s main circuit. Connections may vary based on drive capacity. The DC
power supply for the main circuit also provides power t
o the control circuit.
NOTICE: Do not use the negative DC bus terminal “-” as a ground terminal. This terminal is at high DC voltage potential. Improper
wiring connections could damage the drive.

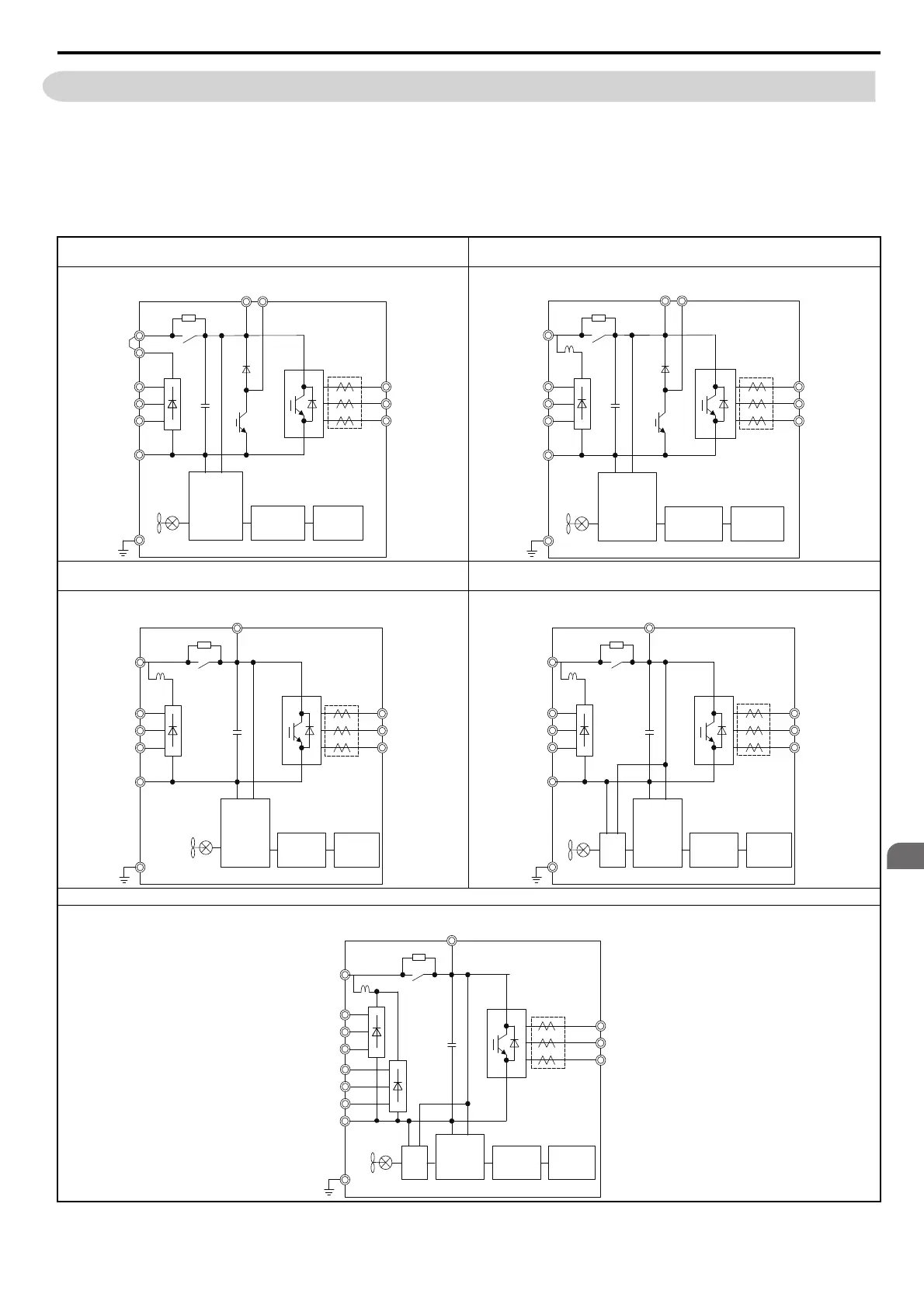

Table 3.1 Drive main circuit configurations
CIMR-A2A0004 to 2A0081
CIMR-A4A0002 to 4A0044
CIMR-A2A0110, 2A0138
CIMR-A4A0058, 4A0072
CIMR-A2A0169, 2A0211
CIMR-A4A0088 to 4A0139
CIMR-A2A0250 to 2A0415
CIMR-A4A0165 to 4A0675
CIMR-A4A0930, 4A1200
<1>
+1
+2
–
R/L1
S/L2
T/L3
Relay
Gate board
Control
board
Operator
+
Current
sensor
U/T1
V/T2
W/T3
B1 B2
+1
–
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
B1 B2
DC
reactor
+
Relay
Gate board
Control
board
Operator
Current
sensor
+1
–
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
+
+3
DC
reactor
Relay
Gate board
Control
board
Operator
Current
sensor
+1
–
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
+3
+
24 V
Power
Supply
DC
reactor
Relay
Gate board
Control
board
Operator
Current
sensor
+1
–
R/L1
S/L2
T/L3
R1/L11
S1/L21
T1/L31
U/T1
V/T2
W/T3
+3
+
24 V
Power
Supply
DC
reactor
Relay
Gate board
Control
board
Operator
Current
sensor
