YASKAWA A1000 Technical Manual

3.3 Main Circuit Configurations
64 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
 12-Phase Rectification
 Removing the Jumper
Models CIMR-A4A0930 and 4A1200 are compatible for operation with 12-phase rectification. Operation with
12-phase rectification requires the user to separately prepare a 3-winding transformer for the power supply. Contact
YASKAWA or your nearest sales representative for the transformer specifications.
Notes on wiring are listed below.
WARNING! Fire Hazard. Failure to remove jumpers shorting the power supply terminals on the main circuit when operating with
12-phase rectification may cause death or serious injury by fire.
 Application Notes
• Remove M5 screws and then jumpers to operate with 12-phase rectification as shown in Figure 3.2.
•Models CIMR-A4A0930 and 4A1200 are shipped from the factory with jumpers short-circuiting terminals 
R/L1-R1/L11, S/L2-S1/L21, and T/L3-T1/L31.
Figure 3.3

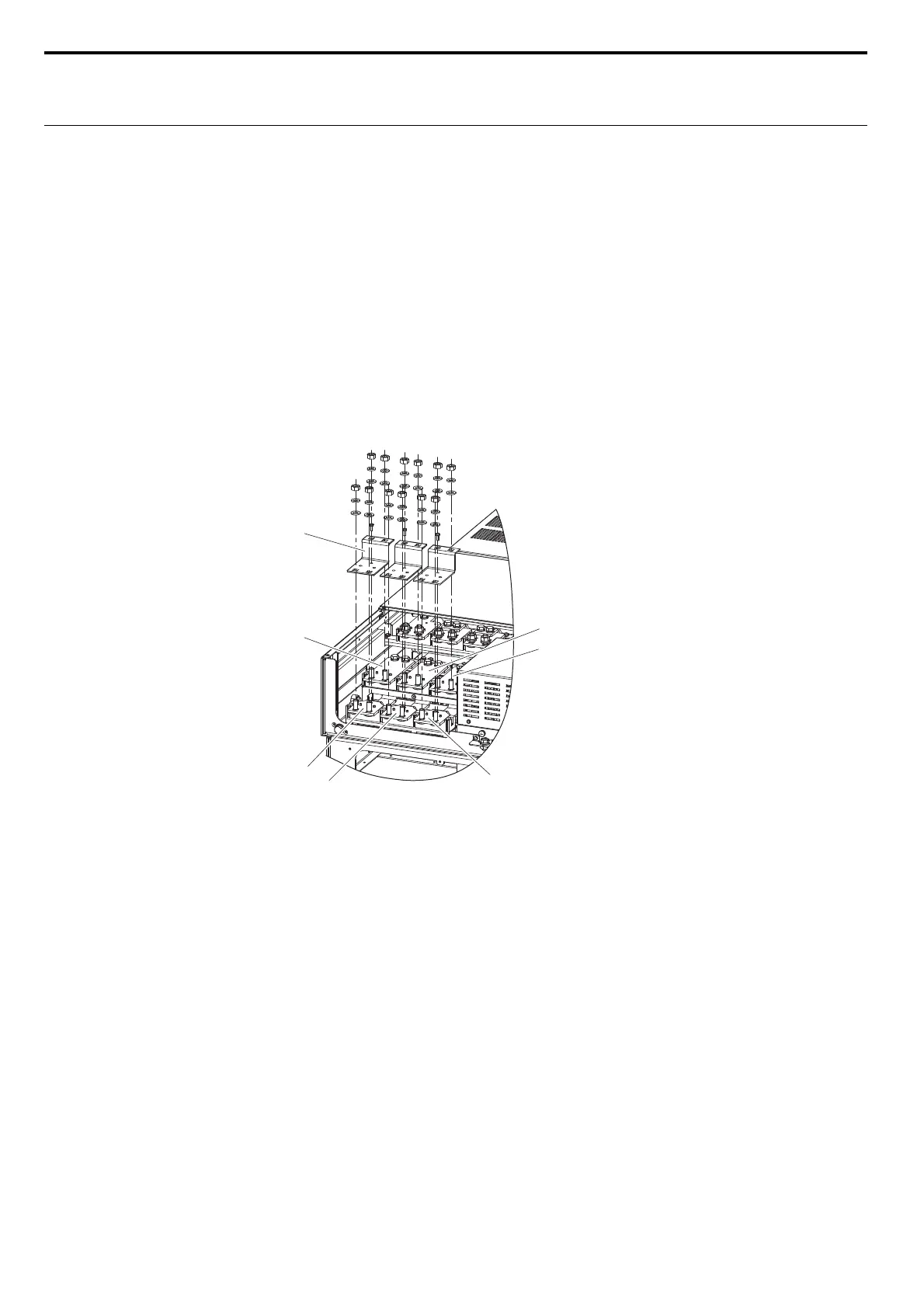

Figure 3.2 Removing the jumper
<1> Models CIMR-A4A0930 and 4A1200 are compatible for operation with 12-phase rectification. Refer to 12-Phase Rectification on page 64
for details.
R1/L11
Jumper
R/L1
S/L2
T/L3
T1/L31
S1/L21

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
