4.4 Start-Up Flowcharts
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 109
Start-Up Programming
& Operation
4
4.4 Start-Up Flowcharts
The flowcharts in this section summarize basic steps required to start the drive. Use the flowcharts to determine the most
appropriate start-up method for a given application. The charts are intended as a quick reference to help familiarize the
user with start-up procedures.
Note: 1. Function availability differs for drive models CIMR-A4A0930 and 4A1200. Refer to Parameter Differences for models
CIMR-A
for details.
2. Refer to Application Selection on page 114 to set up the drive using one of the application presets.

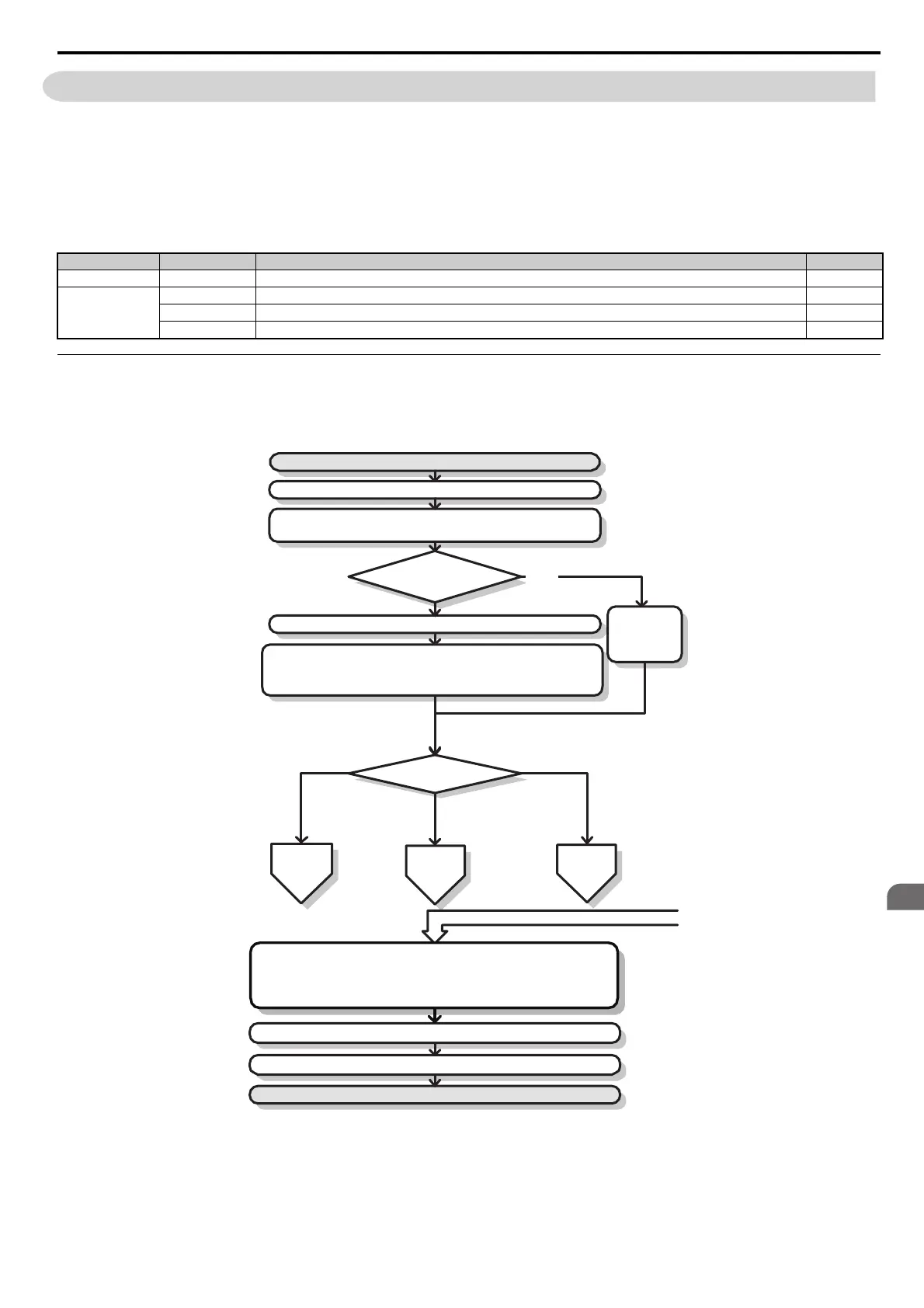

Flowchart A: Basic Start-up and Motor Tuning
Flowchart A in Figure 4.8 describes a basic start-up sequence. This sequence varies slightly depending on the
application. Use drive default parameter set
tings in simple applications that do not require high precision.
Figure 4.7
Figure 4.8 Basic Start-up
Note: 1. When the
motor cable length has changed for more than 50 m after Auto-Tuning has been performed (e.g., after the drive has been set
up and then later installed in a different location), execute Stationary Auto-Tuning for resistance between motor lines once the drive
is installed in its final installation location.
2. Auto-T
uning should be performed again after installing an AC reactor or other such components to the output side of the drive.
Flowchart Subchart Objective Page
A – Basic startup procedure and motor tuning 109
–
A-1 Simple motor setup using V/f mode 110
A-2 High-performance operation using Open Loop Vector (OLV) or Closed Loop Vector (CLV) motor control 111
A-3 Setting up the drive to run a permanent magnet (PM) motor 112
YES
NO
Set the parameters according to the application method.
b1-01/b1-02
for frequency reference selection and run command source selection
d1-
for using multi-speed references
C1-
and C2-
for accel/decel and S-curve time settings
H1-, H2-
, H3-
, H4-
, H6-
for I/O terminal setting
START
Install and wire the drive as explained in Chapters 1, 2, and 3
Apply main power on to the drive
Adhere to safety messages concerning application of power
Application Presets
A1-06 used ?
Set the control mode in parameter A1-02.
Refer to
Application
Selection section
To
Flowchart A-1
Control Mode
A1-02 =
To
Flowchart A-2
To
Flowchart A-3
Set the basic parameters
L3-04 if using dynamic braking options
L8-55 = 0 if using a regen converter
C6-01 for heavy/normal duty mode selection
Fine tune parameters. Adjust application settings (PID, ...) if necessary.
Check the machine operation and verify parameter settings.
Drive is ready to run the application.
From Flowchart A-1, A-2, or A-3
0: V/f
1: V/f w/PG
2: OLV
3: CLV
5: OLV/PM
6: AOLV/PM
7: CLV/PM
To Next Page
