1.5 Component Names
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 37
Receiving
1
 Three-Phase AC200 V CIMR-A2A0169A to 0312A
Three-Phase AC400 V CIMR-A4A0139A to 0208A
Figure 1.4

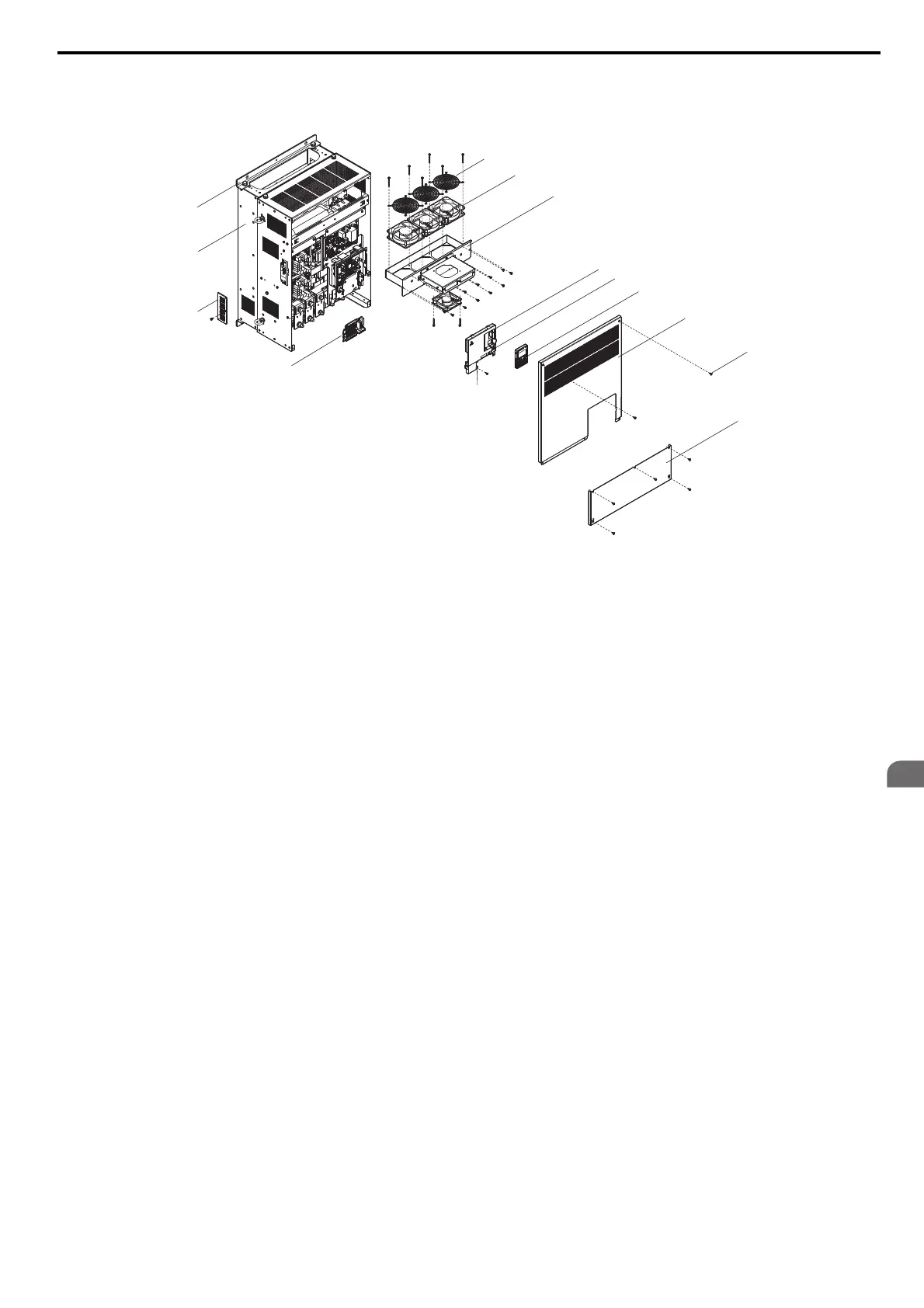

Figure 1.4 Exploded view of IP00 Enclosure Type Components (CIMR-A4A0165A)
A – Fan guard H – Front cover screw
B – Cooling fan I – Terminal cover
C – Fan unit case J – Terminal board
D – Front cover K – Optional 24 V DC power
supply connector cover
E – USB port (type-B)
F – Digital operator L – Heatsink
G – Drive cover M – Mounting hole
M
L
J
K
A
B
C
D
E
H
F
G
I

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
