A.6 Drive Derating Data
448 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
3: External Heatsink Installation, Finless Drive
Drive operation between -10C and 40C allows 100% continuous current without derating. Operation between 40C
and 50C requ
ires output current derating.

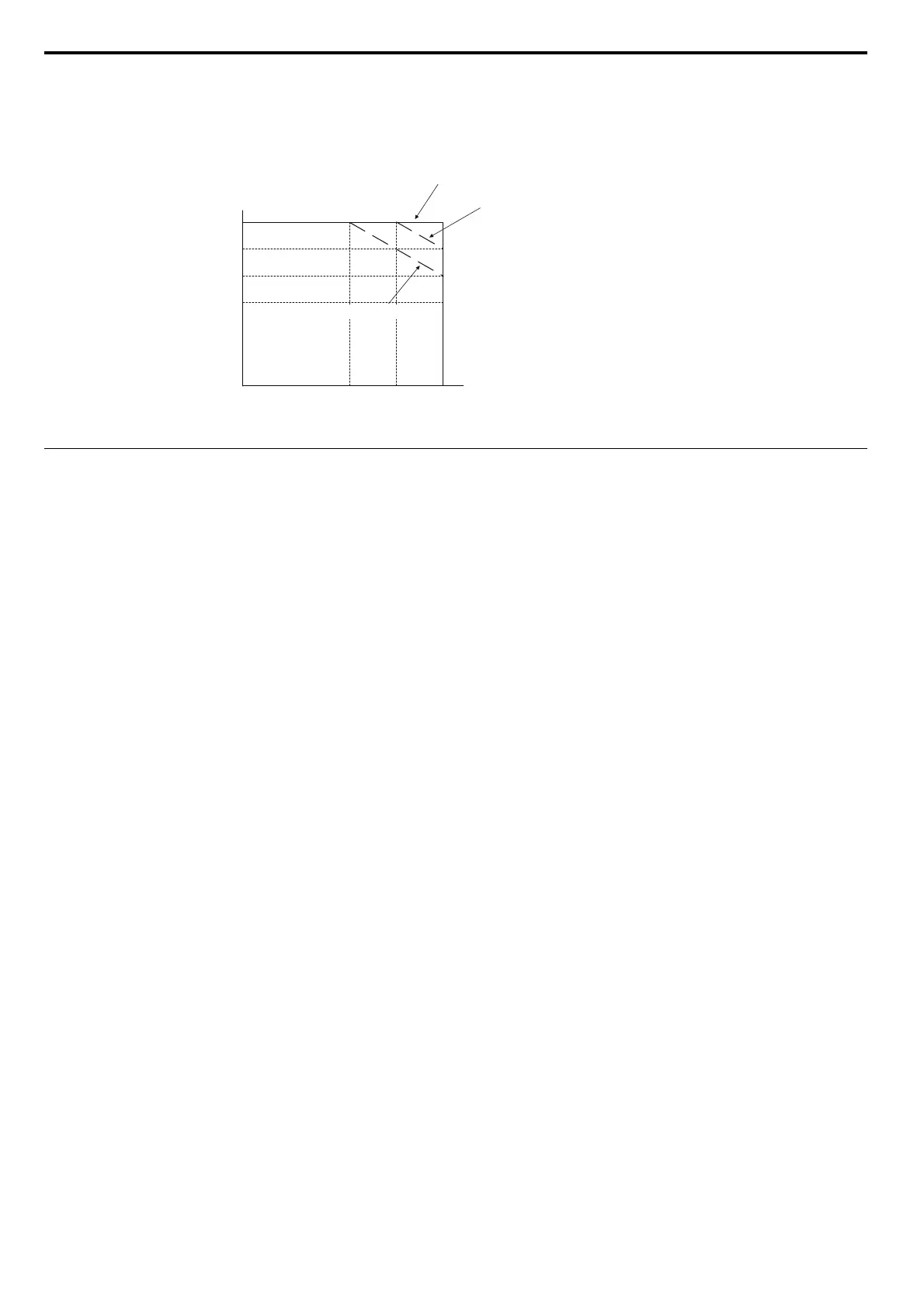

Figure A.7
Figure A.7 Ambient Temperature and Installation Method Derating
 Altitude Derating
The drive standard ratings are valid for an installation altitude up to 1000 m. If the altitude exceeds 1000 m both the drive
rated voltage and the rated output current must be derated for 1% per 100 m. The maximum altitude is 3000 m.
100
85
70
55
0
L8-35=2: IP20/NEMA 1, UL Type 1 Enclosure
L8-35=3: External Heatsink lnstallation
L8-35=0: IP00 Enclosure
30
-10
40 50
Drive Rating
(%)
L8-12
(Ambient temp: °C)
L8-35=1: Side-by-Side Mounting

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
