YASKAWA A1000

1.5 Component Names
38 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
 Three-Phase AC200 V CIMR-A2A0360A, 0415A
Three-Phase AC400 V CIMR-A4A0250A to 0362A
Figure 1.5

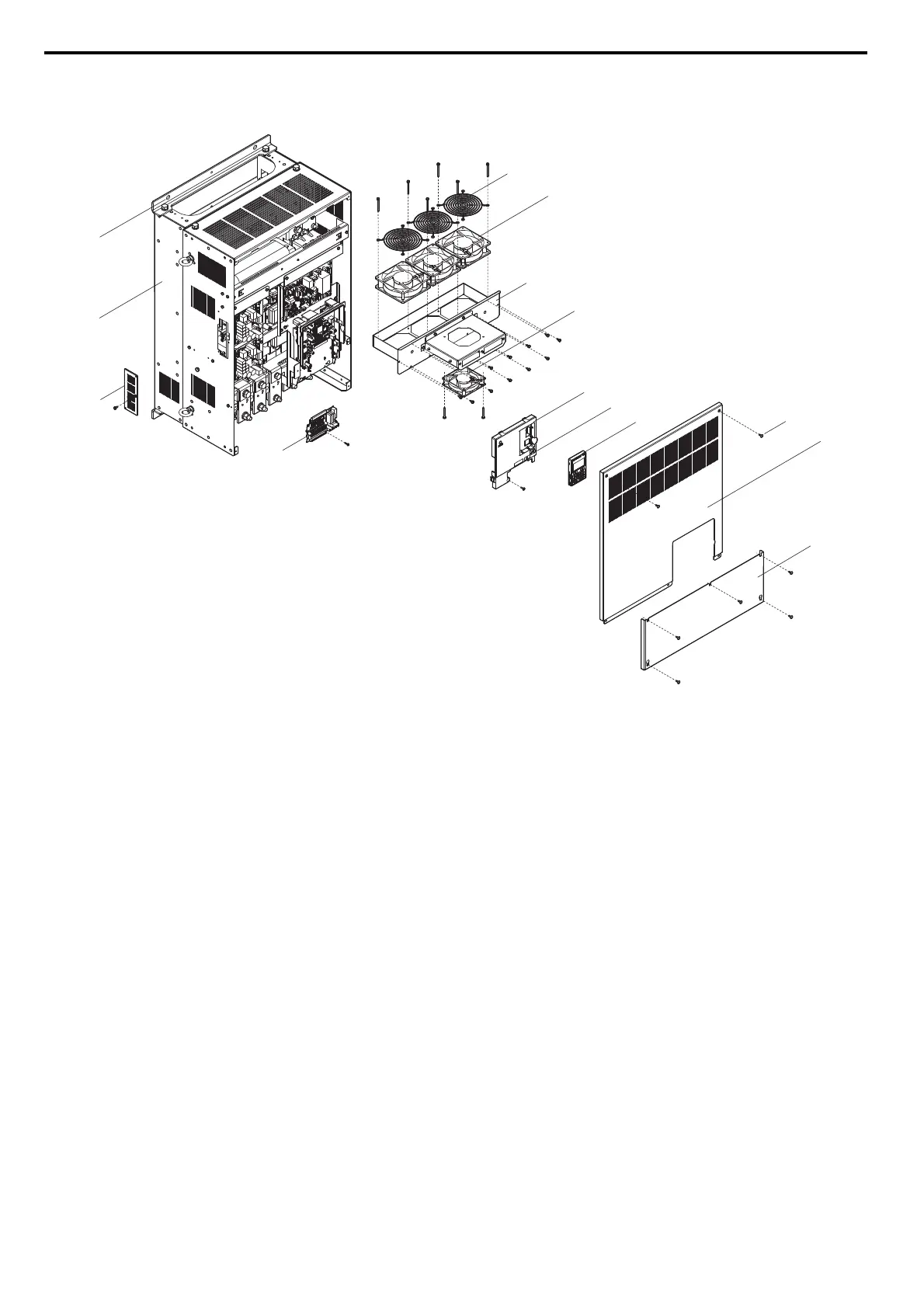

Figure 1.5 Exploded view of IP00 Enclosure Type Components (CIMR-A4A0362A)
A – Fan guard I – Drive cover
B – Cooling fan J – Terminal cover
C – Fan unit case K – Terminal board
D–Circulation fan
<1>
<1> The following drive models come with a built-in circulation fan.
CIMR-A2A0360, 2A0415
CIMR-A4A0362
L – Optional 24 V DC power
supply connector cover
E – Front cover
F – USB port (type-B) M – Heatsink
G – Digital operator N – Mounting hole
H – Front cover screw
F
G
M
L
A
B
C
D
E
H
I
J
K
N
