3.6 Digital Operator and Front Cover
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 71
Electrical Installation
3
2A0110 to 2A0415 and 4A0058 to 4A1200
1. Remove the terminal cover and the digital operator.
2. Loosen the installation screw on the front cover.
3. Use a straight-edge screwdriver to loosen the hooks on each side of the cover that hold it in place.

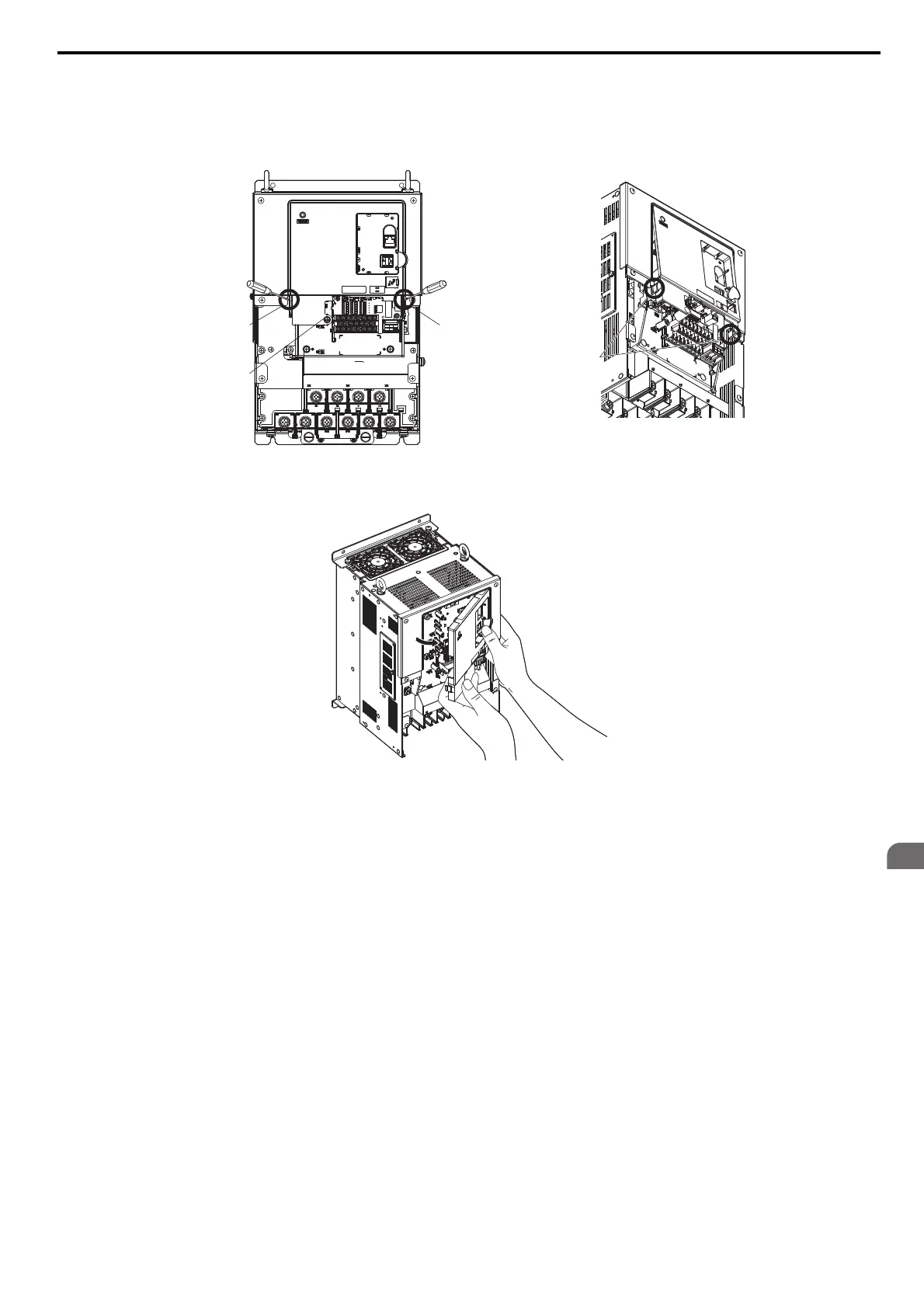

Figure 3.17
Figure 3.14 Remove the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A1200)
4. First unhook the left side of the front cover, then swing the left side towards you as shown in the figure below
until the cover comes off.
Figure 3.18
Figure 3.15 Remove the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A1200)
HookHook
Front cover
installation screw
Free hooks on both
sides of the cover

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
