C.1 MEMOBUS/Modbus Configuration
C.1 MEMOBUS/Modbus Configuration
Drives can be controlled from a PLC or other master device via serial communications using the MEMOBUS/Modbus
protocol.
MEMOBUS/Modbus communication can be configured using one
master (PLC) and a maximum of 255 slaves. The
drive has slave functionality only, meaning that serial communication is normally initiated from the master and
responded to by the slaves.
The master communicates to the slave (drive) spec
ified. The address or node for each slave must be set beforehand so
that the master can communicate with the slave at that address. A slave that receives a command from the master will
perform the specified function and then send a response back to the master.

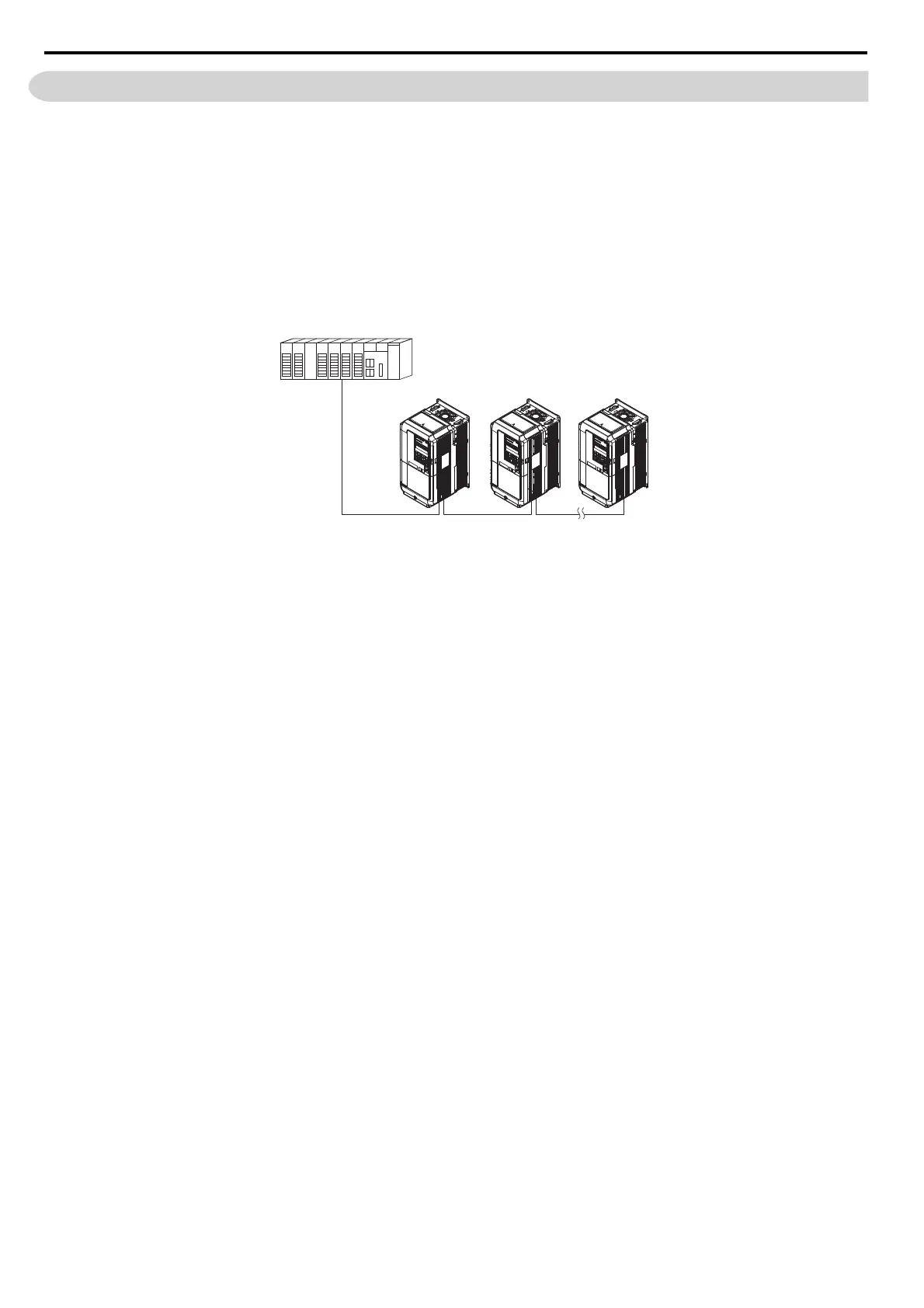

Figure C.1
Figure C.1 Connecting Multiple Drives to a PLC
Master (PLC or other)
Slav e (Dri v e)

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
