4.2 Using the Digital Operator
Use the digital operator to enter run and stop commands, display data, edit parameters, as well as display fault and alarm
information.
Keys and Displays

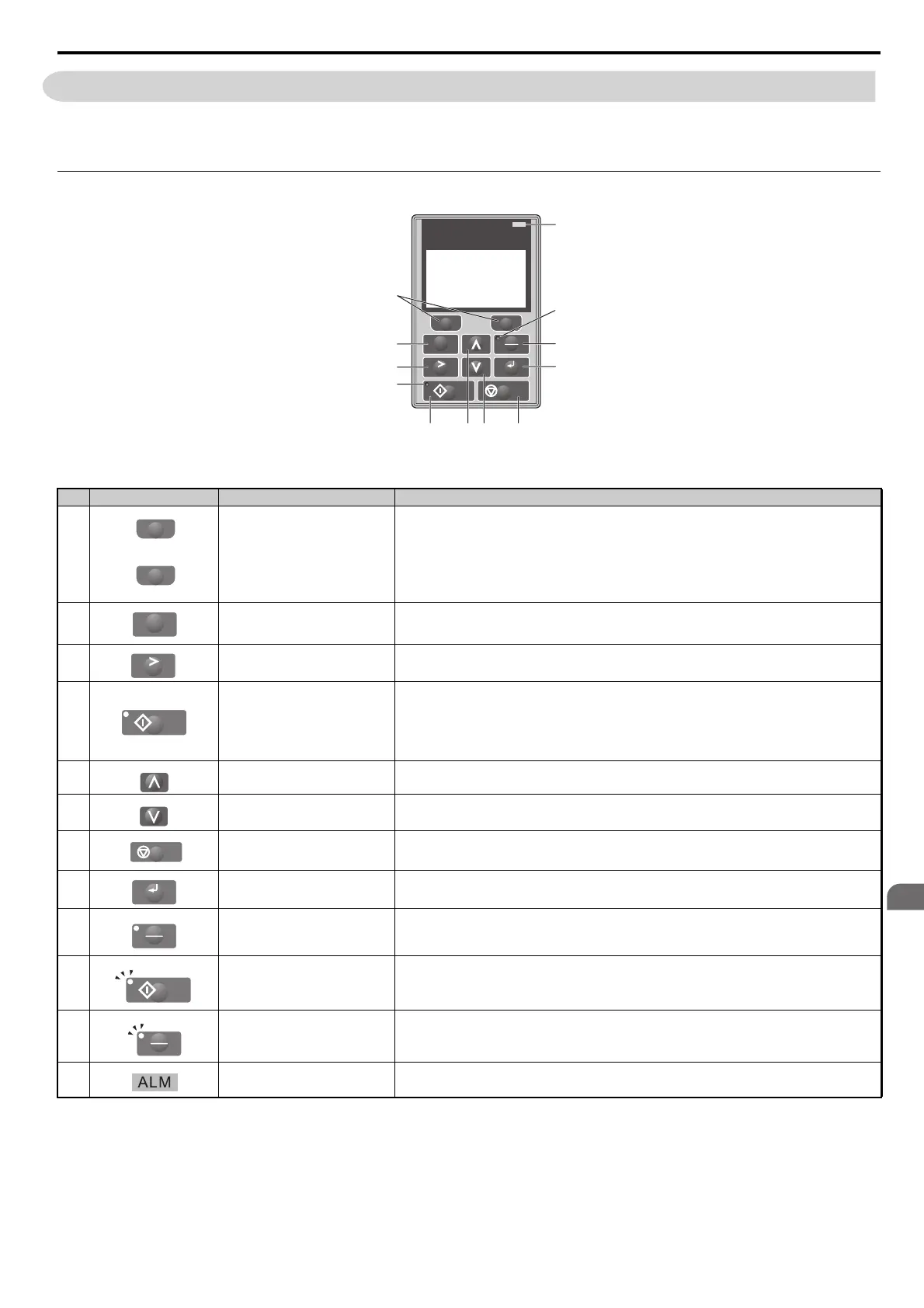

Figure 4.1
Figure 4.1 Keys and Displays on the Digital Operator
No.
<1> The STOP key has highest priority. Pressing the STOP key will always cause the drive to stop the motor, even if a Run command is active at
any external Run command source. To disable the STOP key priority, set parameter o2-06 to 0.
<2> The LO/RE key can only switch between LOCAL and REMOTE when the drive is stopped. To disable the LO/RE key to prohibit switching
between LOCAL and REMOTE, set parameter o2-01 to 0.
Display Name Function
1
Function Key
(F1, F2)
The functions assigned to F1 and F2 vary depending on the menu that is currently displayed. The name of each
function appears in the lower half of the display window.
2ESC Key
• Returns to the previous display.
• Moves the cursor one space to the left.
• Pressing and holding this button will return to the Frequency Reference display.
3RESET Key
• Moves the cursor to the right.
• Resets the drive to clear a fault situation.
4 RUN Key
Starts the drive in the LOCAL mode.
The Run LED
• is on, when the drive is operating the motor.
• flashes during deceleration to stop or when the frequency reference is 0.
• flashes quickly the drive is disabled by a DI, the drive was stopped using a fast stop DI or a run command
was active during power up.
5
Up Arrow Key Scrolls up to display the next item, selects parameter numbers and increments setting values.
6 Down Arrow Key Scrolls down to display the previous item, selects parameter numbers and decrements setting values.
7STOP Key
<1> Stops drive operation.
8 ENTER Key
• Enters parameter values and settings.
• Selects a menu item to move between displays.
9 LO/RE Selection Key
<2>
Switches drive control and frequency setting between the operator (LOCAL) and an external source
(REMOTE).
10
RUN Light
Lit while the drive is operating the motor. Refer to page 101 for details.
11
LO/RE Light
Lit while the operator is selected to run the drive (LOCAL mode). Refer to page 101 for details.
12
ALM LED Light
Refer to ALARM (ALM) LED Displays on page 101.
