YASKAWA A1000

1.5 Component Names
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 35
Receiving
1
1.5 Component Names
This section gives and overview of the drive components described in this manual.
Note: 1. See Using the Digital Operator on page 99 for a description of the operator keypad.
2. The dr
ive may have no cooling fans or only one cooling fan depending on the model.
 IP20/NEMA 1, UL Type 1 Enclosure
 Three-Phase AC200 V CIMR-A2A0004F to 2A0081F
Three-Phase AC400 V CIMR-A4A0002F to 4A0044F
Figure 1.2

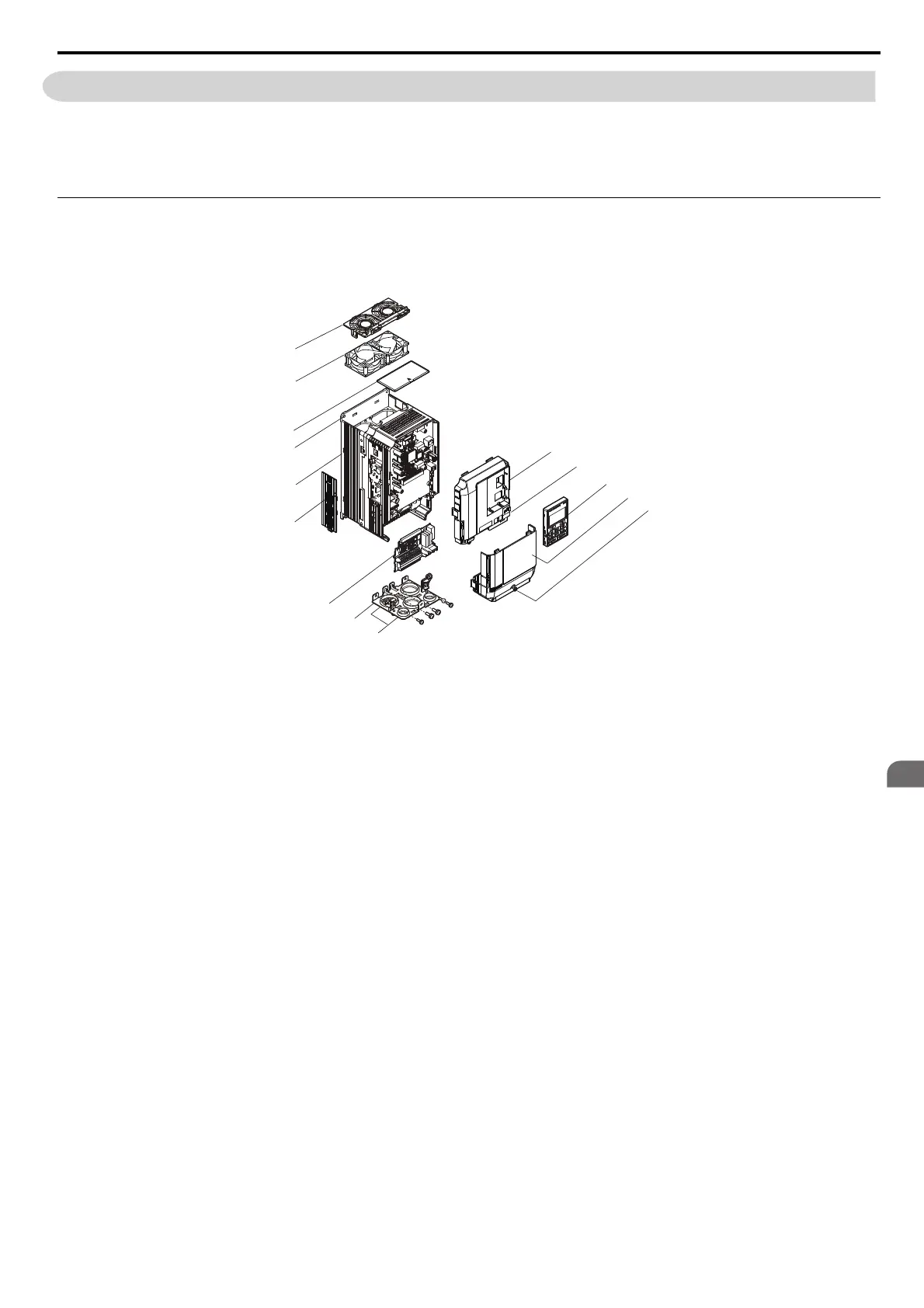

Figure 1.2 Exploded View of IP20/NEMA 1, UL Type 1 Enclosure Components (CIMR-A2A0030F)
A – Front cover <1>
<1> The following drive models have a single cooling fan: CIMR-A2A0021F,
CIMR-A4A0007F through 0011F. Drives CIMR-A2A0004F through 0012F and
CIMR-A4A0002F through 0005F do not have a cooling fan or a cooling fan cover.
I – Optional 24 V DC power
supply connector cover
B – USB port (type-B)
C – Digital Operator J – Heatsink
D – Terminal cover K – Mounting hole
E – Terminal cover screw L – Top protective cover
F – Rubber bushing M – Cooling fan
<1>
G – Bottom cover N – Fan cover
H – Terminal board
E
N
M
K
L
J
I
H
G
A
C
D
B
F
