4.4 Start-Up Flowcharts
112 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
 Subchart A-3: Operation with Permanent Magnet Motors
Flowchart A-3 in Figure 4.11 describes the set-up procedure for running a PM motor in Open Loop Vector Control. PM
motors can be used for more energy-ef
ficient operation in reduced or variable torque applications.
Note: 1. Although the drive sets parameters for the PG encoder during Auto-Tuning, sometimes the direction of the motor and direction of the
PG get reversed. Use parameter F1-05 to switch the direction of the PG so that it matches the motor direction.
2. The Z pulse must be realigned if the PG encoder is replaced. Set T2-01 to 3 to recalibrate the drive for the new encoder.
Figure 4.10

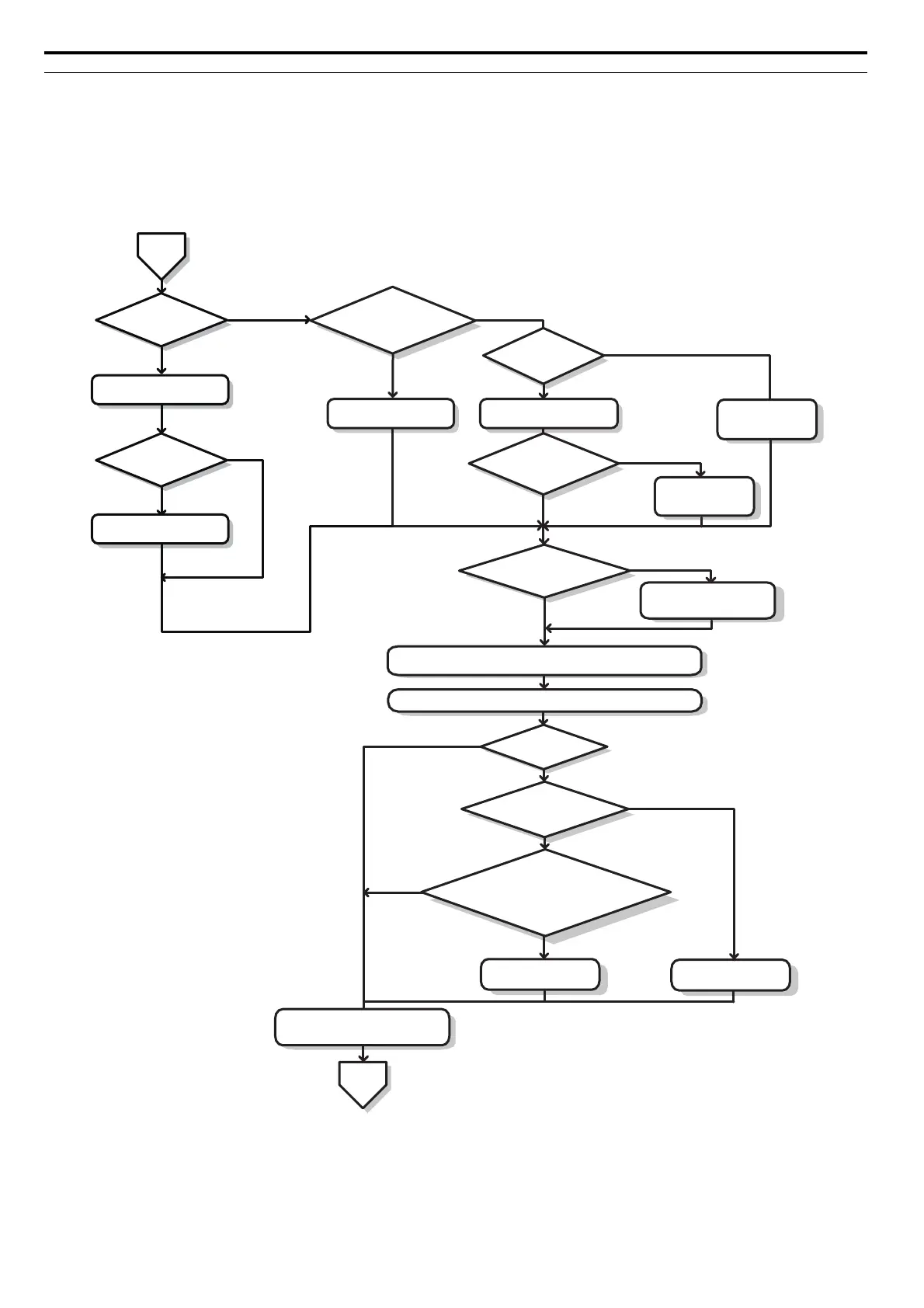

Figure 4.11 Operation with Permanent Magnet Motors
<1> A motor code can be entered as the parameter setting for E5-01 when using a YASKAWA PM motor (SMRA Series, SSR1 Series, and SST4
Series). If using a motor from another manufacturer, enter FFFF.
<2> Make sure the motor and load can run freely, i.e., if a brake is mounted, make sure it is released.
<3> ASR Gain Tuning automatically performs Inertia Tuning and sets parameters related to Feed Forward and the KEB Ride-Thru function.
<4> Set E5-01 to the motor code to eliminate the need to perform tuning. Refer to Parameters that Change with the Motor Code Selection (for
PM Motors) on page 530 for details.
Motor test report/
data sheet available?
YES
Input the motor data.
(T2-01 = 0)
Input the motor data.
(T2-01 = 1)
NO
<1>
<1>
Is the motor cable longer
than 50 meters?
Possible
for a PG encoder on the
motor to rotate during
tuning?
Possible
for motor to rotate
during tuning?
YES
PM Stationary Auto-Tuning for
Stator Resistance (T2-01 = 2)
Back EMF
Constant Tuning
(T2-01 = 11)
NO
Is there a
PG encoder on the
motor?
Does the application require
any of the following drive functions?
 Feed Forward (L2-29 = 1)
 KEB 2 (H1- = 7A)
Perform PM Inertia Tuning
(T2-01 = 8) <2>
Should the drive set ASR
gain automatically?
Return to
Flowchart
A
Run the motor without load; check the rotation direction and
operation. Verify external signal commands to the drive work as desired.
Connect the load to the motor.
Perform ASR gain tuning.
(T2-01 = 9) <3>
Run the machine and check for
desired operation.
NO
NO
YES
YES
YES
YES
NO
YES
NO
NO
YES
Perform PM
Rotational Auto-Tuning
(T2-01 = 14)
<1>
<4>
NO
From
Flowchart
A
Yaskawa standard
series motor?
Set the motor code in E5-01.
YES
NO
Motor with PG?
YES
ΔSet E5-11 to the value of θ
given on the motor nameplate.
