YASKAWA A1000 Technical Manual

3.6 Digital Operator and Front Cover
72 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
 Reattaching the Front Cover
2A0004 to 2A0081 and 4A0002 to 4A0044
Reverse the instructions given in Remove the Front Cover (2A0004 to 2A0081 and 4A0002 to 4A0044) on page 70 to
reattach the front cover. Pinch inwards on the hooks found on ea
ch side of the front cover while guiding it back into the
drive. Make sure it clicks firmly into place.
2A0110 to 2A0415 and 4A0058 to 4A1200

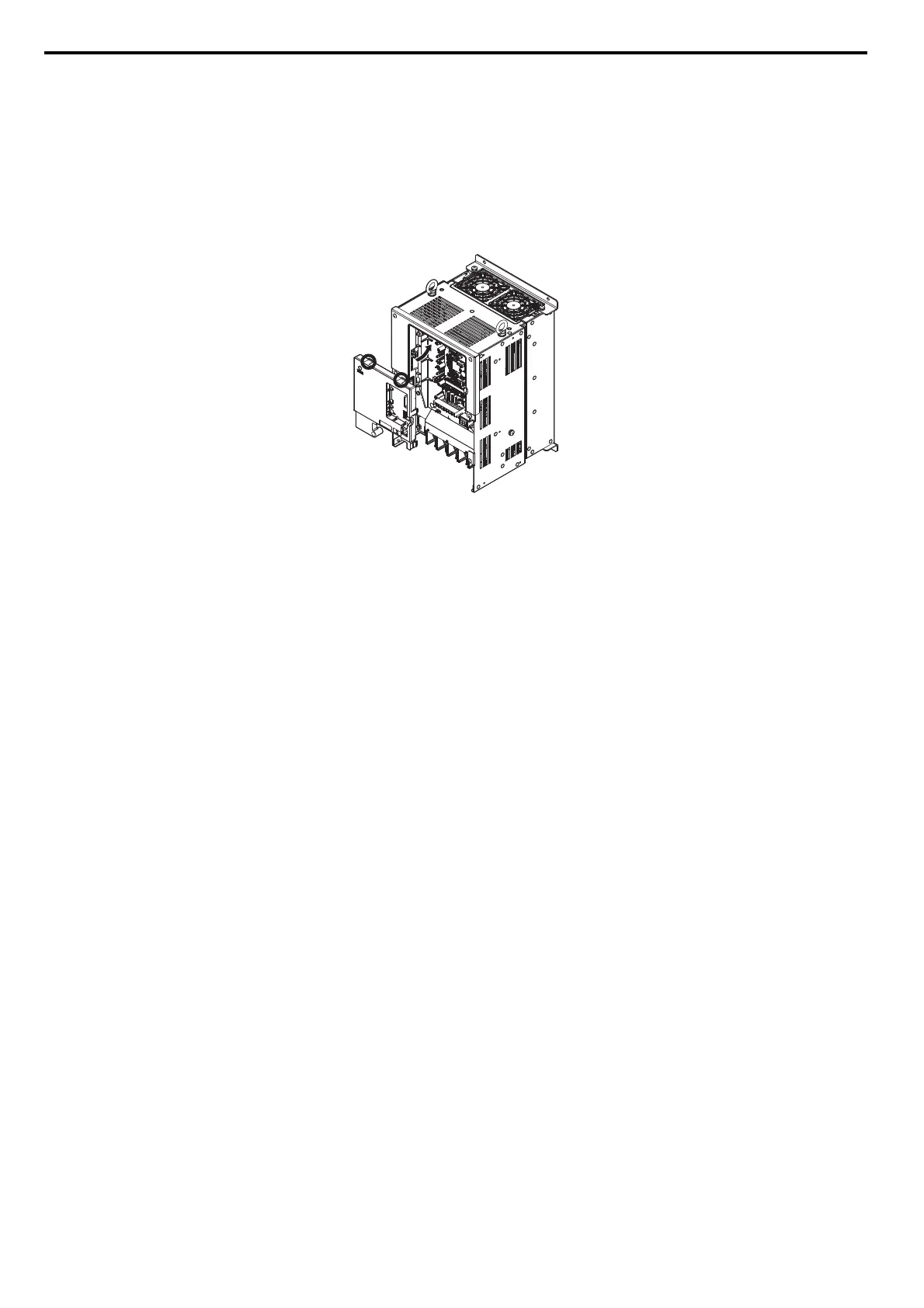

1. Slide the front cover so that the hooks on the top connect to the drive.
Figure 3.19
Figure 3.16 Reattach the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A1200)
2. Once the hooks have connected to the drive, press firmly on the cover to make sure it locks into place.

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
