YOKOGAWA DLM4000 Series User Manual

4-2
IM DLM4038-02EN

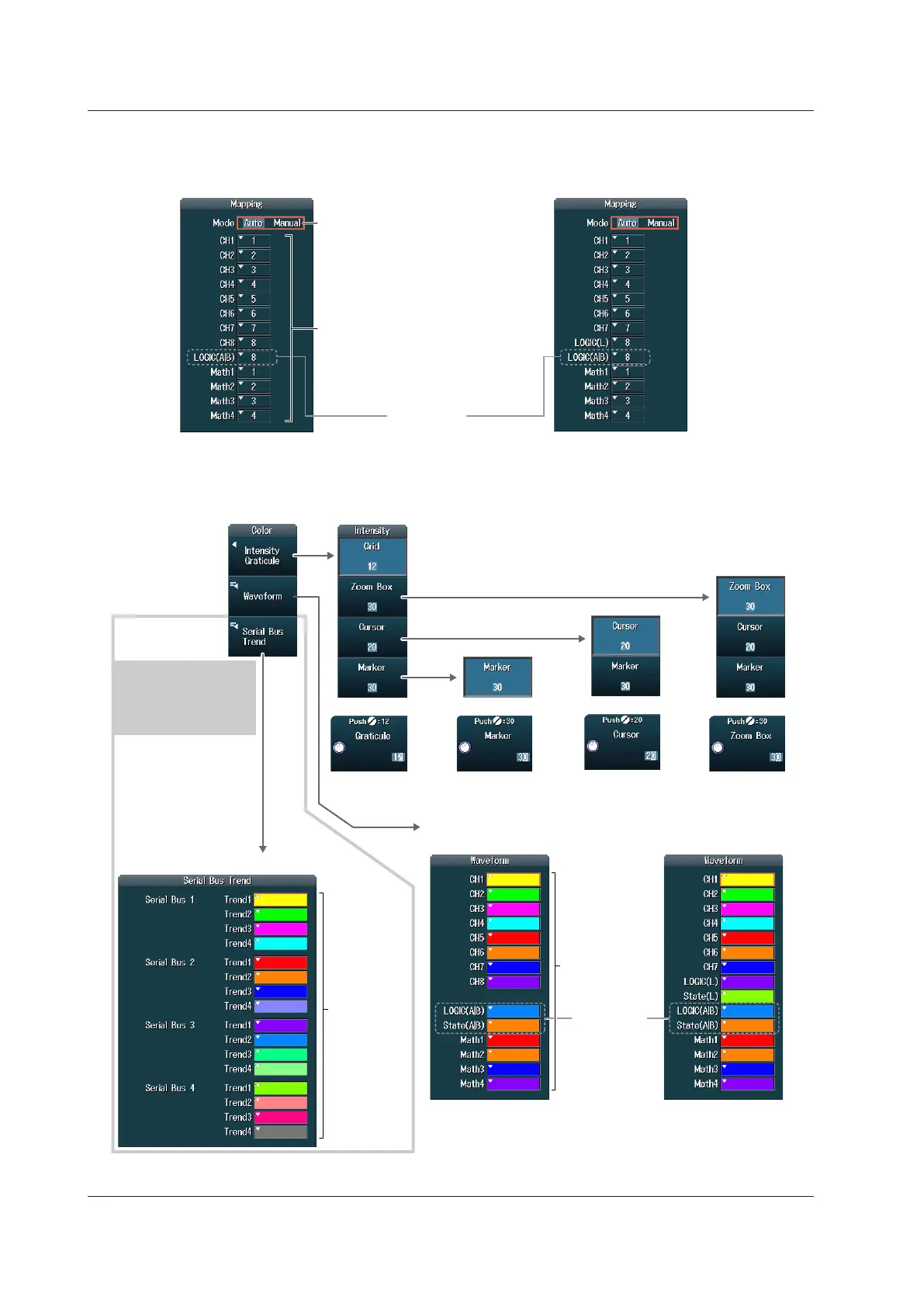

4.1 Setting Display Conditions
Setting the Waveform Arrangement (Mapping)
Press the Mapping soft key to display the following menu.
Set the allocation method
(Auto, Manual).
When the CH8 Key is Lit When the L Key is Lit
If the allocation method is set to
Manual, assign each channel’s
waveform to the divided screens
(1 to 8).
/L16 option
Setting the Display Color (Color)
Press the Color soft key to display the following menu.
Set the intensity of the grid, zoom box, cursor, or marker.
Set the grid
intensity.
Set the marker
intensity.
Set the cursor
intensity.
Set the zoom
box intensity.
Set the waveform display color.
Set the serial bus trend color.
• When the CH8 Key is Lit • When the L Key is Lit
Set the display
color of each
waveform.
/L16 option
Set the color
of each
trend.
This menu appears on
models with the SENT
or PSI5 option.
