6.5 Performing Count Computations
Setting the Count Type (Type)

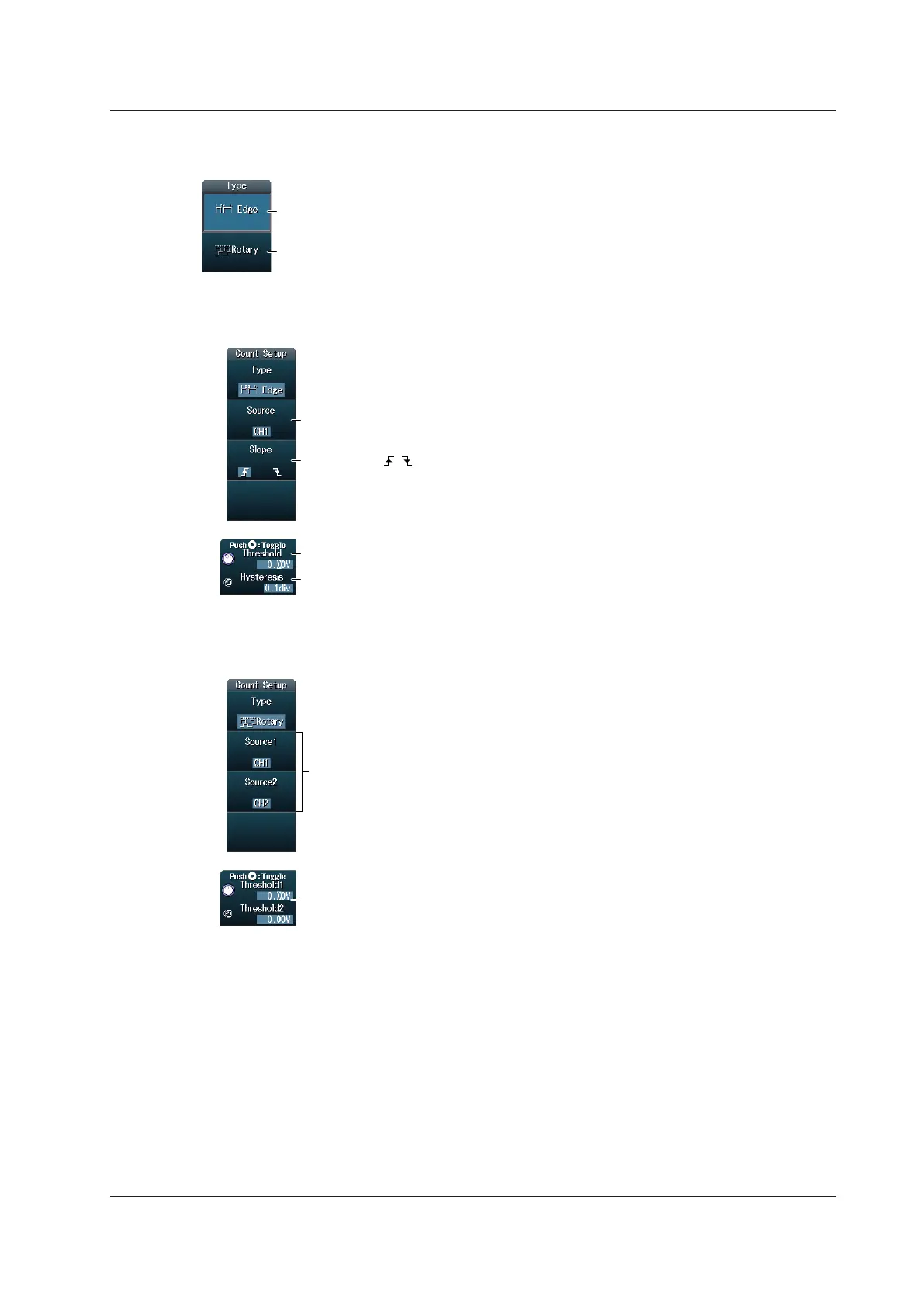

Press the Count Setup soft key, then the Type soft key to display the following menu.
Set the edge count.
Set the rotary count.
Setting the Edge Count (Edge)
Press the Edge soft key to display the following menu.
Set the computation source waveform.
► section 6.2
Set the level used to detect edges.
Set the hysteresis.
Set the slop ( , ).
Setting the Rotary Count (Rotary)
Press the Rotary soft key to display the following menu.
Set the computation source waveform.
► section 6.2
Configure the level used to determine
waveform state changes.
