Setting the List Display (List)

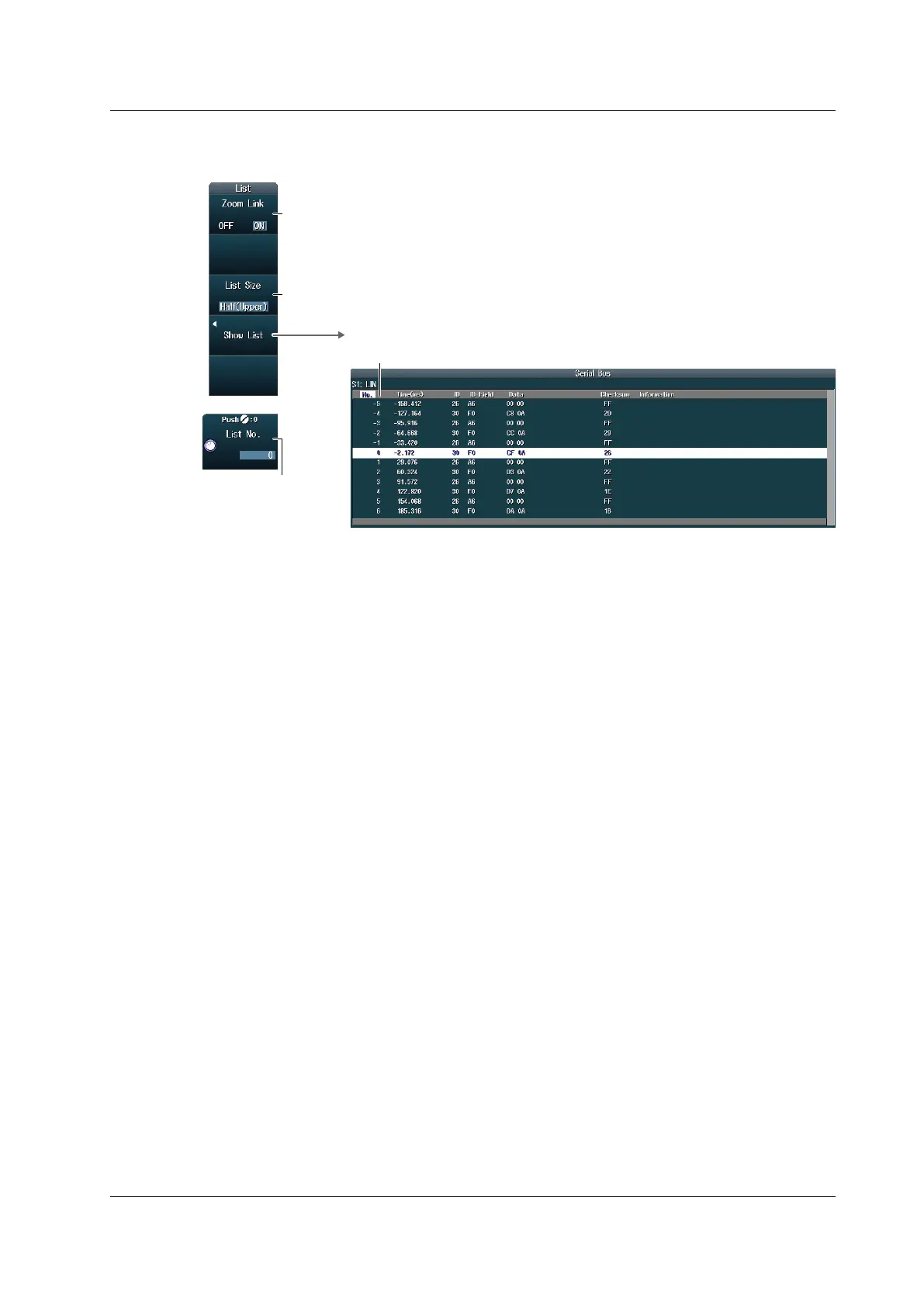

Press the List soft key to display the following menu.
Set the list size and the display position
(Full Screen, Half(Upper), Half(Lower)).
Lists the analysis results
Analysis number
Turns zoom linking on or off
Data before the trigger position (on the left side of the waveform display) is assigned analysis
numbers in descending order (-1, -2, and so on). Data after the trigger position (on the right side of the
waveform display) is assigned analysis numbers in ascending order (0, 1, 2, and so on).
12.4 Analyzing and Searching LIN Bus Signals (Option)
