YOKOGAWA DLM4000 Series User Manual

2-40
IM DLM4038-02EN

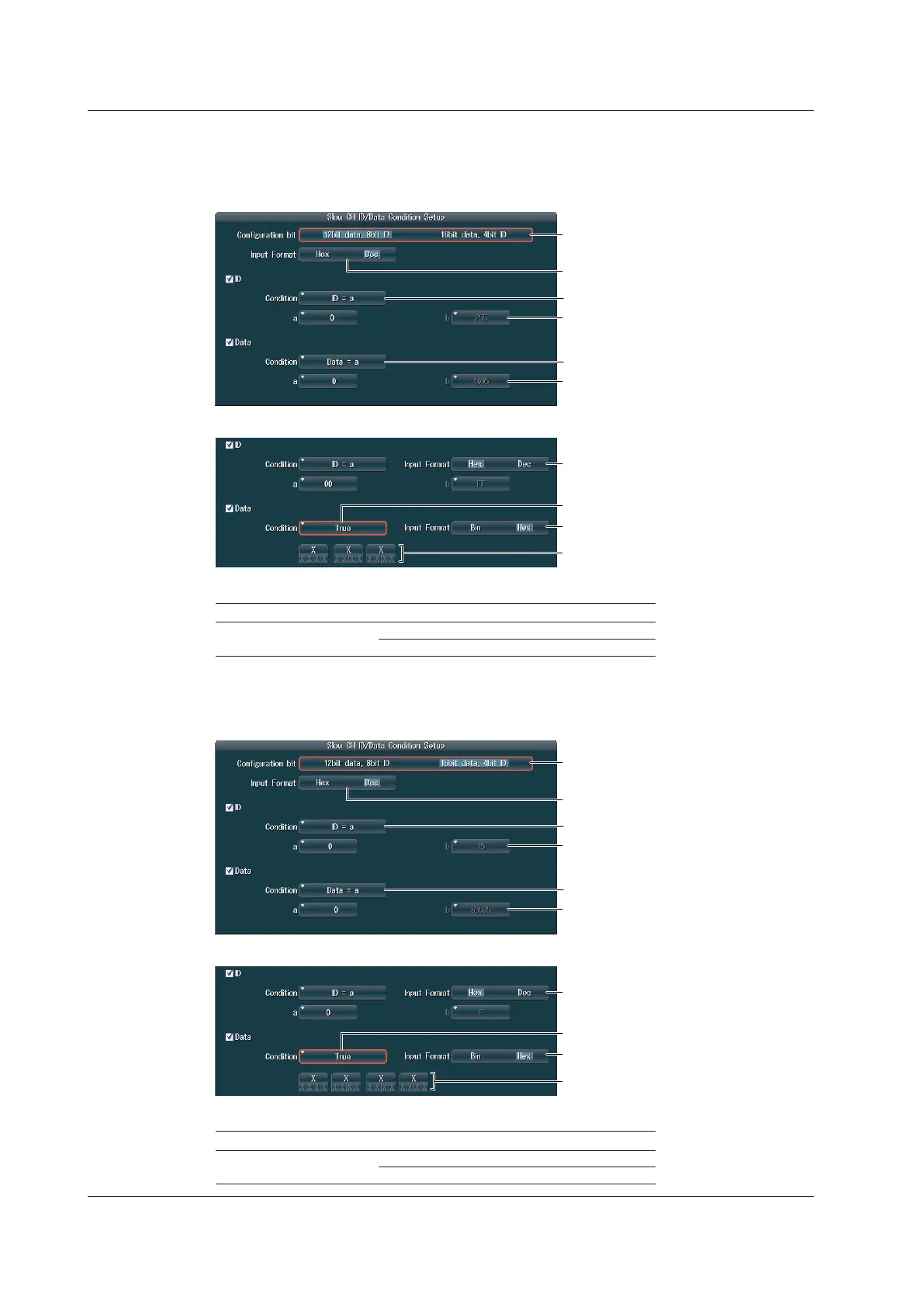

• When the Message Type Is Enhanced
When the ID and Data Message Formats Are Set to “12bit data, 8bit ID”
Set ID reference values a and b.
Set the ID comparison condition.
Set data reference values a and b.
Set the data comparison condition.
Set the ID and data input format.
Set the ID and data message formats
(12bit data, 8bit ID).
Set the data comparison condition.
Set the ID input format.
When the Comparison Condition Is Data = a; Data ≠ a; a ≤ Data; Data ≤ b;
a ≤ Data ≤ b; or Data < a, b < Data
When the Comparison Condition Is True or False
Set the data pattern input format.
Set the data pattern.
Setting ID and Data Reference Values a and b
Input format setting Hex Dec
Selectable range for
reference values a and b
ID 00 to FF 0 to 255
Data 000 to FFF 0 to 4095
When the ID and Data Message Formats Are Set to “16bit data, 4bit ID”
Set ID reference values a and b.
Set the ID comparison condition.
Set data reference values a and b.
Set the data comparison condition.
Set the ID and data input format.
Set the ID and data message formats
(16bit data, 4bit ID).
Set the data comparison condition.
Set the ID input format.
When the Comparison Condition Is Data = a; Data ≠ a; a ≤ Data; Data ≤ b;
a ≤ Data ≤ b; or Data < a, b < Data
When the Comparison Condition Is True or False
Set the data pattern input format.
Set the data pattern.
Setting ID and Data Reference Values a and b
Input format setting Hex Dec
Selectable range for
reference values a and b
ID 0 to F 0 to 15
Data 0000 to FFFF 0 to 65535
2.13 Triggering on SENT Signals (Option)
