2-39
IM DLM4038-02EN

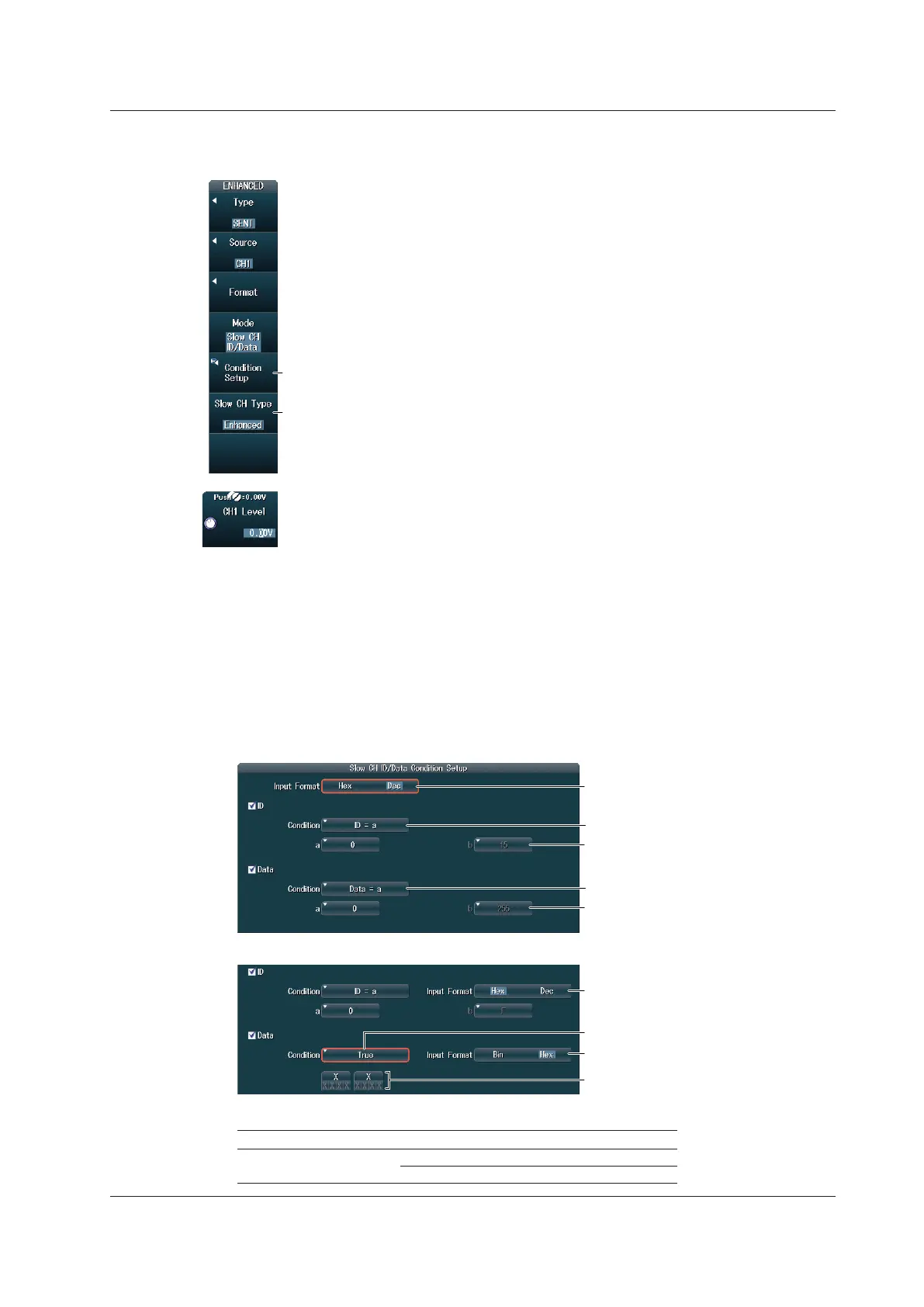

Slow CH ID/Data Mode
Press the Mode soft key and then the Slow CH ID/Data soft key to display the following menu.
Set the trigger conditions.
Set the slow channel message type (Short, Enhanced).
This is selectable when the format version is JAN2010.
Setting Trigger Conditions (Condition Setup)
Press the Condition Setup soft key. The screen that appears varies depending on the slow channel
message type setting.
The DLM4000 triggers on the AND of the slow channel ID and Data conditions. Items whose check
boxes are selected are used as trigger conditions. Set ID and data reference values a and b in Hex
(hexadecimal) or Dec (decimal) according to the input format setting.
• When the Message Type Is Short
Set the ID and data input format.
Set the ID input format.
When the Comparison Condition Is Data = a; Data ≠ a; a ≤ Data; Data ≤ b;
a ≤ Data ≤ b; or Data < a, b < Data
When the Comparison Condition Is True or False
Set the data pattern input format.
Set the data pattern.
Set the ID comparison condition.
Set the data comparison condition.
Set the data comparison condition.
Set ID reference values a and b.
Set data reference values a and b.
Setting ID and Data Reference Values a and b
Input format setting Hex Dec
Selectable range for
reference values a and b
ID 0 to F 0 to 15
Data 00 to FF 0 to 255
2.13 Triggering on SENT Signals (Option)
To Next Page
