Trigger Type (Mode)
Every Data Mode
Press the Mode soft key and then the Every Data soft key.
The DLM4000 triggers on all data.
Error Mode
Press the Mode soft key, the Error soft key, and then the Error Type or Error Type OR soft key to
display the following menu.
Specify whether to perform even or
odd parity checks when parity error
detection is on.
Turn error detection on or off for
Parity errors.
Turn error detection on or off for
Framing errors.
* Format setting ► page 2-45
When the format is set to
8bit NoParity
When the format is set to
7bit Parity or 8bit Parity
The DLM4000 triggers when it detects an error.
Data Mode
Setting Trigger Conditions (Condition Setup)

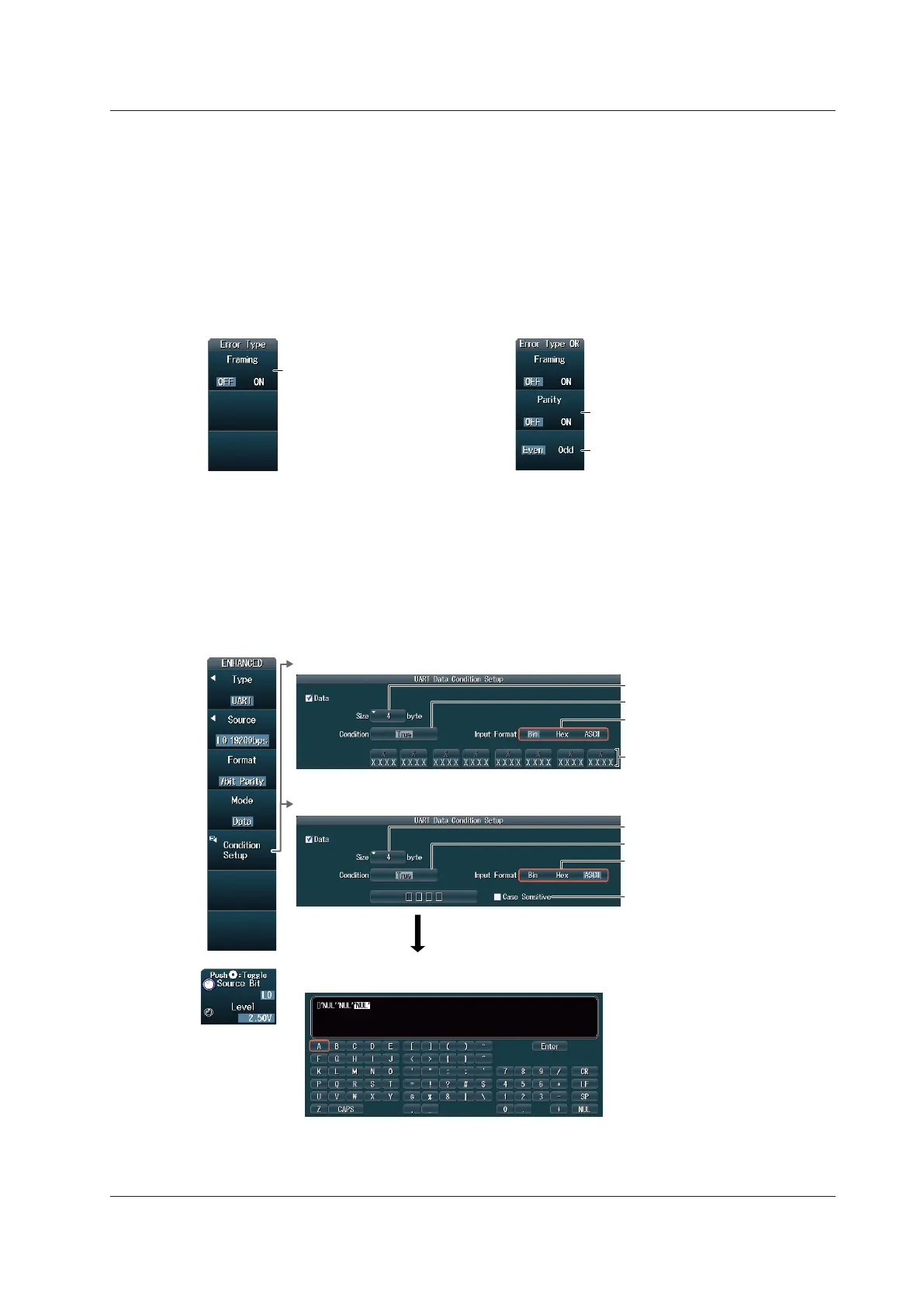

Press the Mode soft key, the Data soft key, and then the Condition Setup soft key to display the
following screen.
The DLM4000 triggers when the data pattern is matched.
Set the data pattern.
Use the keyboard that appears on the screen.
• When the Data Pattern Input Format Is Bin or Hex
• When the Data Pattern Input Format Is ASCII
Set the data pattern.
Set the data pattern input format
(ASCII)
Comparison condition (always True)
Set the data length.
Specify the case-sensitive setting.
Select the check box to enable the
setting.
Set the data pattern input format
(Bin, Hex).
Comparison condition (always True)
Set the data length.
2.15 Triggering on UART Signals (Option)
