YOKOGAWA DLM4000 Series User Manual

2-46
IM DLM4038-02EN

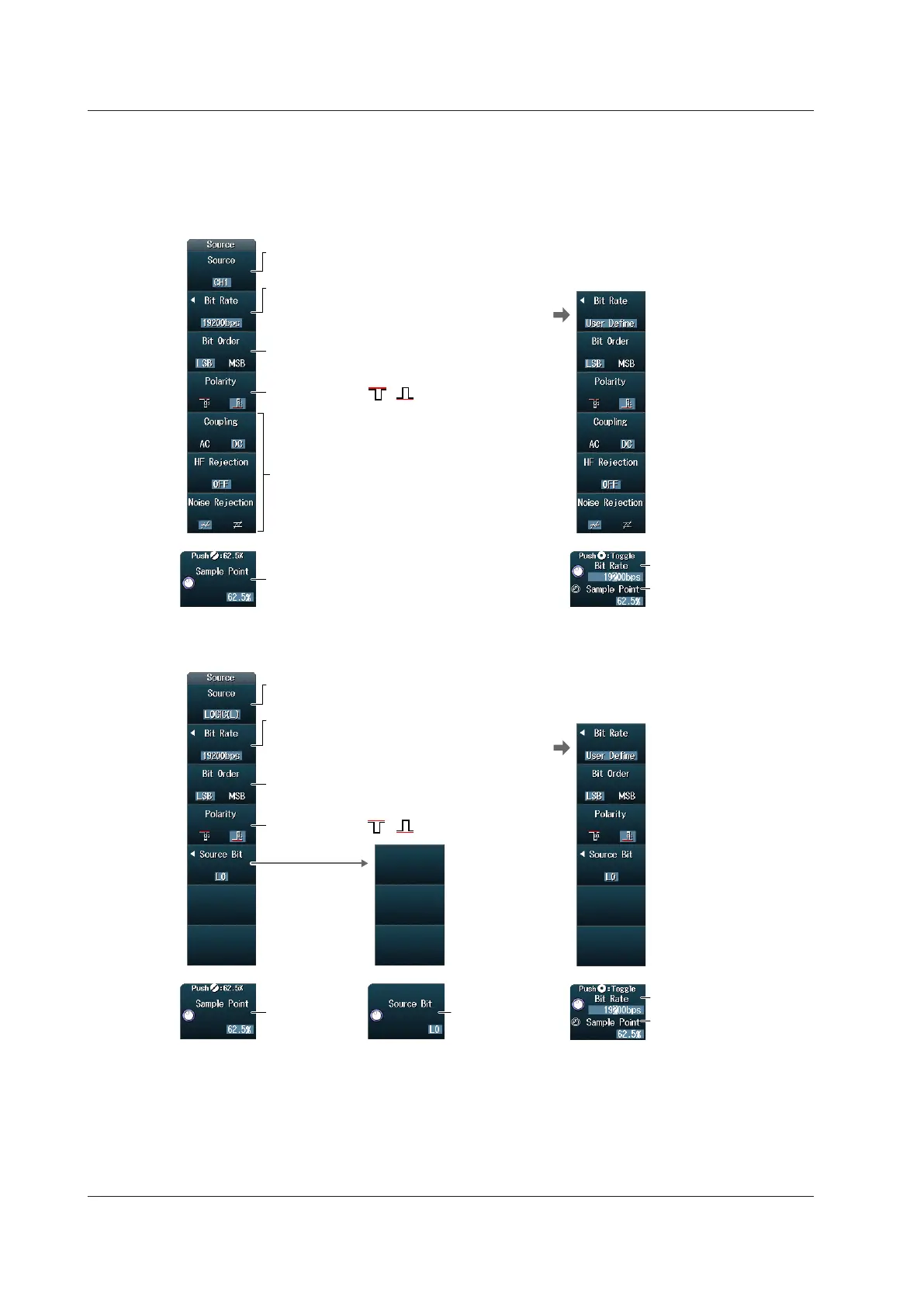

Setting the Trigger Source (Source)
Press the Source soft key to display one of the menus shown below. The menu that is displayed
varies depending on the specified trigger source.
When the Trigger Source Is a Channel from CH1 to CH8
Set the trigger source (CH1 to CH8).
Set the bit order (LSB, MSB).
Set the polarity ( , ).
Set the trigger coupling, HF rejection, and
noise rejection.
► section 2.3
Set the sample point.
Set the bit rate (1200 bps, 2400 bps, 4800 bps,
9600 bps, 19200 bps, 38400 bps, 57600 bps,
115200 bps, User Define).
Set the bit rate.
Set the sample point.
When the Bit Rate Is
Set to User Define
0 1
0 1
When the Trigger Source Is LOGIC(L) or LOGIC(A|B)
Set the trigger source
(LOGIC(L) or LOGIC(A
|
B)).
*
Set the bit order (LSB, MSB).
Set the polarity ( , ).
Set the sample
point.
Set the source bit
(L0 to L7, A0 to A7,
B0 to B7).
*
Set the bit rate (1200 bps, 2400 bps, 4800 bps,
9600 bps, 19200 bps, 38400 bps, 57600 bps,
115200 bps, User Define).
Set the bit rate.
Set the sample point.
When the Bit Rate Is
Set to User Define
0 1
0 1
* You can select CH8 or LOGIC(L), depending on which channel’s corresponding key (CH8 or L) is
illuminated.
LOGIC(A|B), A0 to A7, and B0 to B7 are available on models with the /L16 option.
2.15 Triggering on UART Signals (Option)
