YOKOGAWA DLM4000 Series User Manual

2-52
IM DLM4038-02EN
Setting Trigger Conditions (Condition Setup)

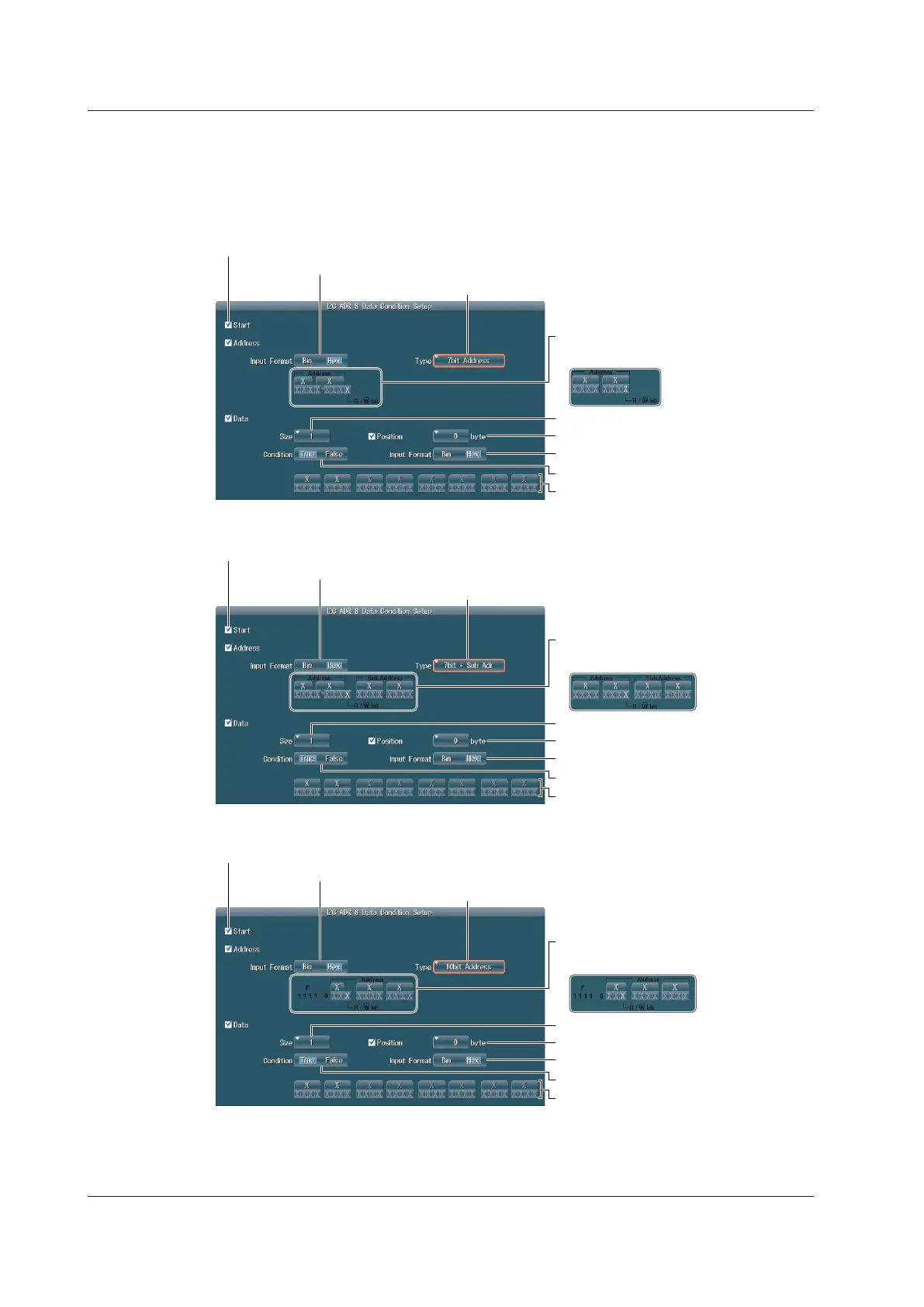

Press the Condition Setup soft key to display the following screen.
The DLM4000 triggers on the AND of the start, address pattern, data pattern, and comparison start
position conditions. Items whose check boxes are selected are used as trigger conditions.
• When Address Type Is 7bit Address
Set the data pattern.
Set the comparison condition.
Set the comparison start position.
Set the data length.
Start (always selected)
Set the address input format.
Set the address type (7bit Address).
Set the address pattern.
• When the R/W bit is not included
• When the R/W bit is included
Set the data pattern input format.
• When Address Type Is 7bit + Sub Adr
Set the data pattern.
Set the comparison condition.
Set the comparison start position.
Set the data length.
Start (always selected)
Set the address input format.
Set the address type (7bit + Sub Adr).
• When the R/W bit is included
Set the data pattern input format.
Set the address pattern.
• When the R/W bit is not included
• When Address Type Is 10bit Address
Set the data pattern.
Set the comparison condition.
Set the comparison start position.
Set the data length.
Start (always selected)
Set the address input format.
Set the address type (10bit Address).
• When the R/W bit is included
Set the data pattern input format.
Set the address pattern.
• When the R/W bit is not included
2.16 Triggering on I2C Bus Signals (Option)
