YOKOGAWA DLM4000 Series User Manual

2-59
IM DLM4038-02EN

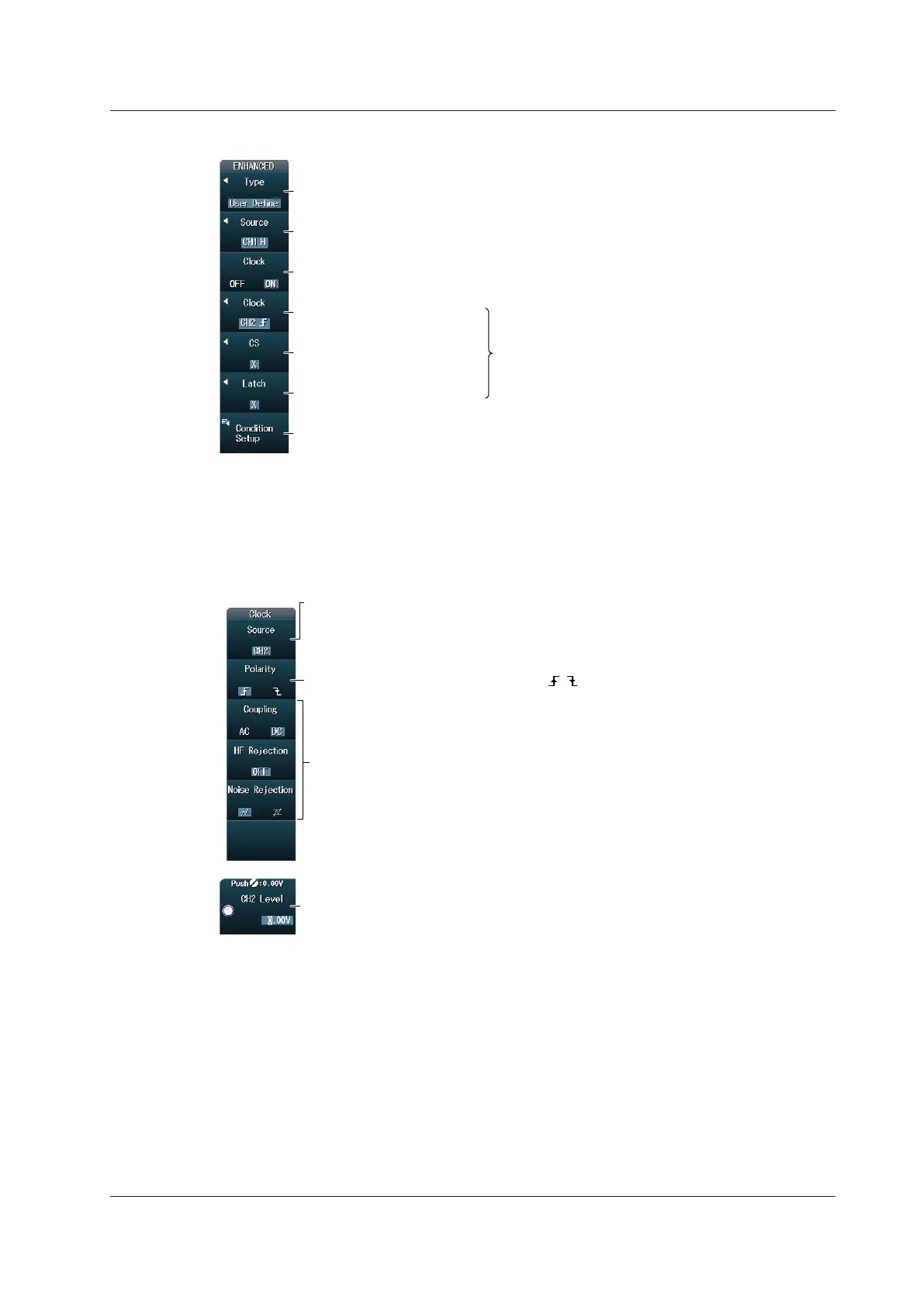

When the Clock Is On
Set the data source (CH1 to CH8).
Turn the clock on or off (ON).
Set the clock source.
Set the chip select source.
Set the latch source.
Set the trigger conditions.
Set the trigger type to User Define.
Press the source
soft key and specify one of
the channels from CH1 to CH8 to set that
channel’s source conditions.
Setting the Data Source (Source)
The menu is the same as the one shown on the previous page for when the clock is off.
Setting the Clock Source (Clock)
Press the Clock soft key to display the following menu.
Set the level used to detect clock
source states.
Set the trigger coupling, HF rejection,
and noise rejection.
► section 2.3
Set the timing for data source sampling ( , ).
Set the clock source.
• When the data source is a channel from CH1 to CH4,
set the source to CH1 to CH4.
• When the data source is a channel from CH5 to CH8,
set the source to CH5 to CH8.
Specify which clock source edge causes the data source to be sampled.
2.18 Triggering on User-Defined Serial Bus Signals
