YOKOGAWA ScopeCorder DL950 User Manual

11-4
IM DL950-02EN

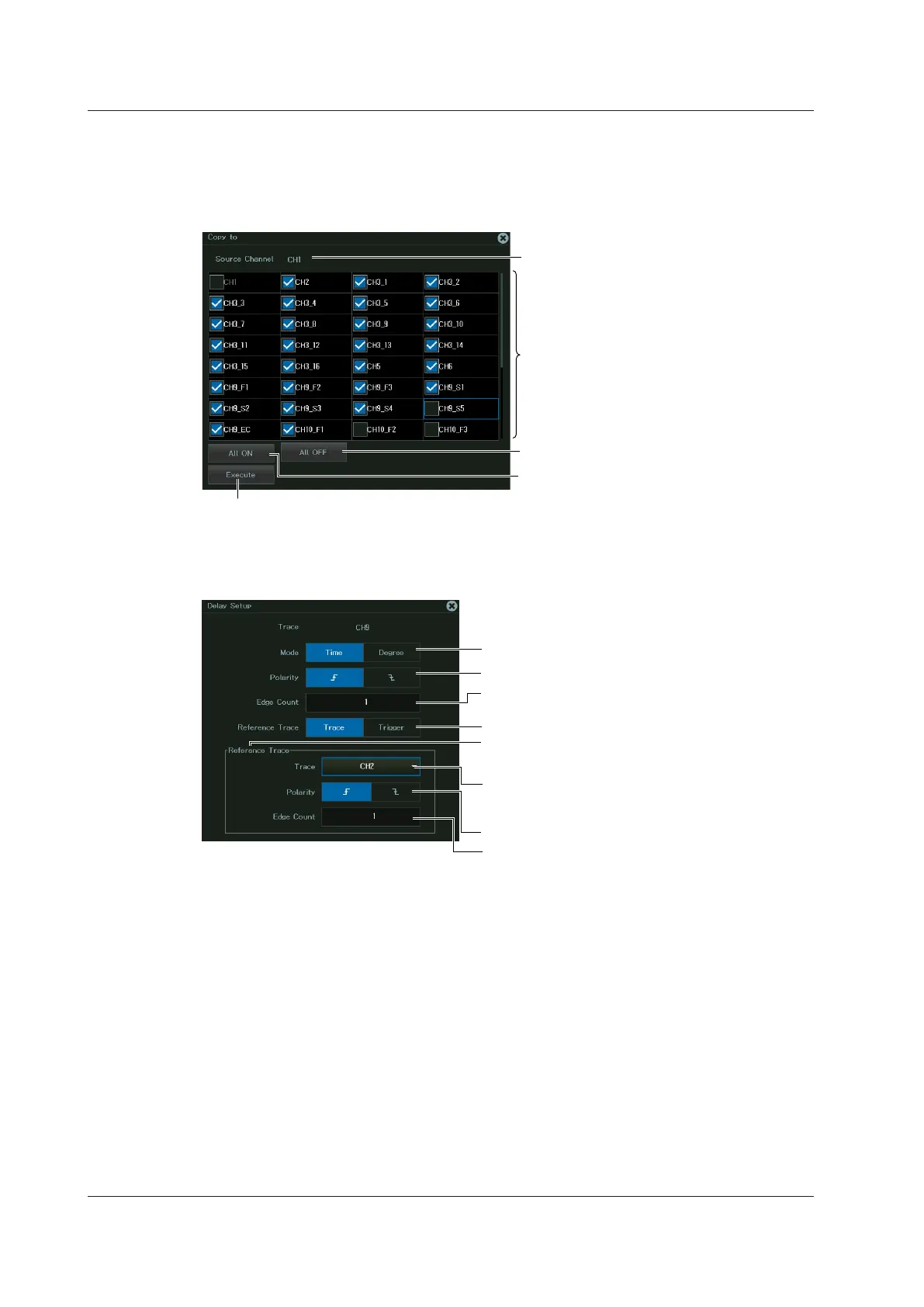

Copying to Specified Channels (Copy to)
3.
Tap Copy to, or select Copy to using the jog dial or arrow keys, and press SET. The
following screen appears.
Copying is not possible when the copy source waveform is an XY waveform.
Selects all channels
Starts copying
Clears all selected channels
Select the channels that you want
to copy to.
(Slide to display waveforms that do not
fit in the screen.)
Copy source channel
Setting the Delay
3.
Tap Delay, or select Delay using the jog dial or arrow keys, and press SET. The following
screen appears.
Set the reference waveform conditions.
(only when Reference is set to Trace)
Set which counted edge to use as
a detected point.
Set the slope of the edge to be detected.
Set the reference waveform.*
(Slide to display waveforms that do not fit
in the screen.)
Set the delay measurement reference.
Set the delay value unit (Time, Degree).
Set the slope of the edge to be detected.
Set which counted edge to use as
a detected point.
* Depending on the channel you select, you need to select sub channels and bits.
11.1 Automatically Measuring Waveform Parameters
