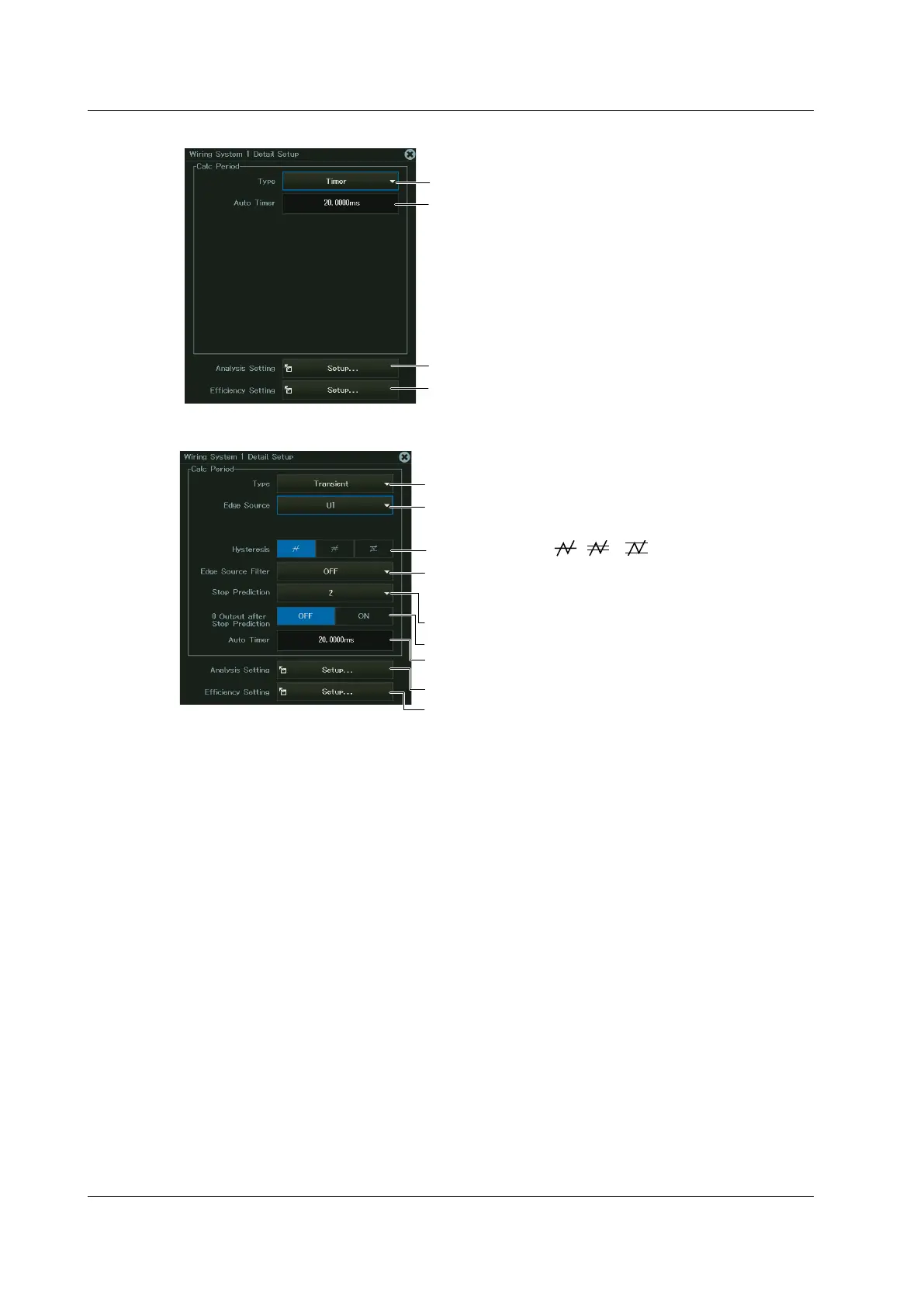

When the Calculation Period Type Is Set to Timer
Set the calculation period type to Timer.
Set the update time.
See “Analysis Setting.”
See “Efficiency Setting.”
When the Calculation Period Type Is Set to Transient
Set the calculation period type to Transient.
Set the edge detection source* (U1 to U3, I1 to I3,
Other Channel).
Set the edge source filter (OFF, 128kHz,
64kHz, 32kHz, 16kHz, 8kHz, 4kHz, 2kHz, 1kHz,
500Hz, 250Hz, 125Hz, 62.5Hz).
See “Analysis Setting.”
See “Efficiency Setting.”
Set the hysteresis ( , , ).
* The source types that you can select vary depending on the wiring system.
Other Channel can be specified when the wiring system is 1P2W.
Set the stop prediction (2, 4, 8, 16).
Set the update time
Set whether to output a zero after a stop prediction.
17.1 Power Analysis (Power)
