17-10

IM DL950-02EN

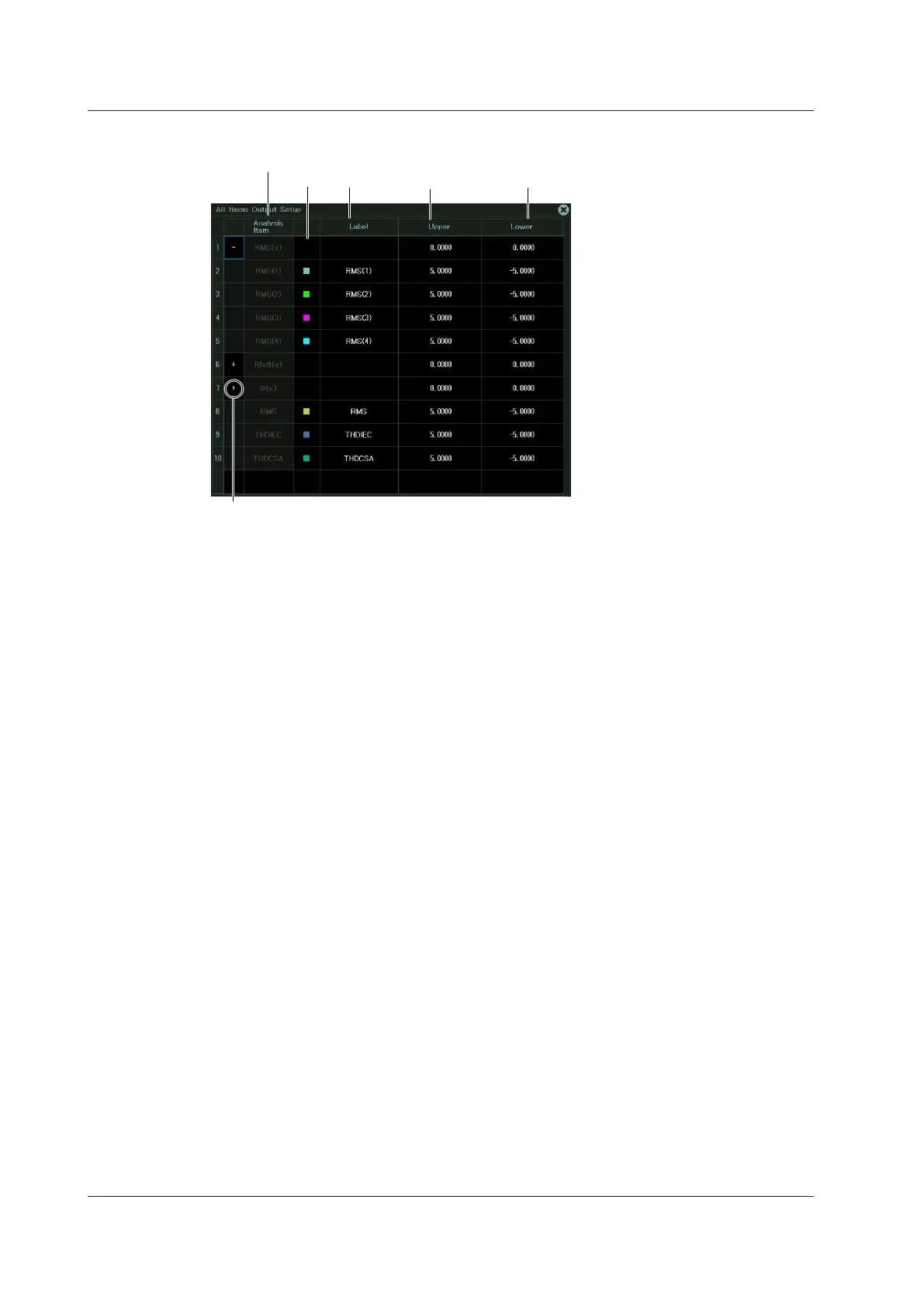

Setting All Output Items

Analysis items (scroll to display hidden items)

Color

Label

Upper limit

Lower limit

Tap “+” or move the cursor to “+” and press SET to display the

items that have been set to ON when harmonic analysis items

were selected. “+” changes to “–”.

17.2 Harmonic Analysis (Harmonics)
