YOKOGAWA ScopeCorder DL950 User Manual

22-3
IM DL950-02EN

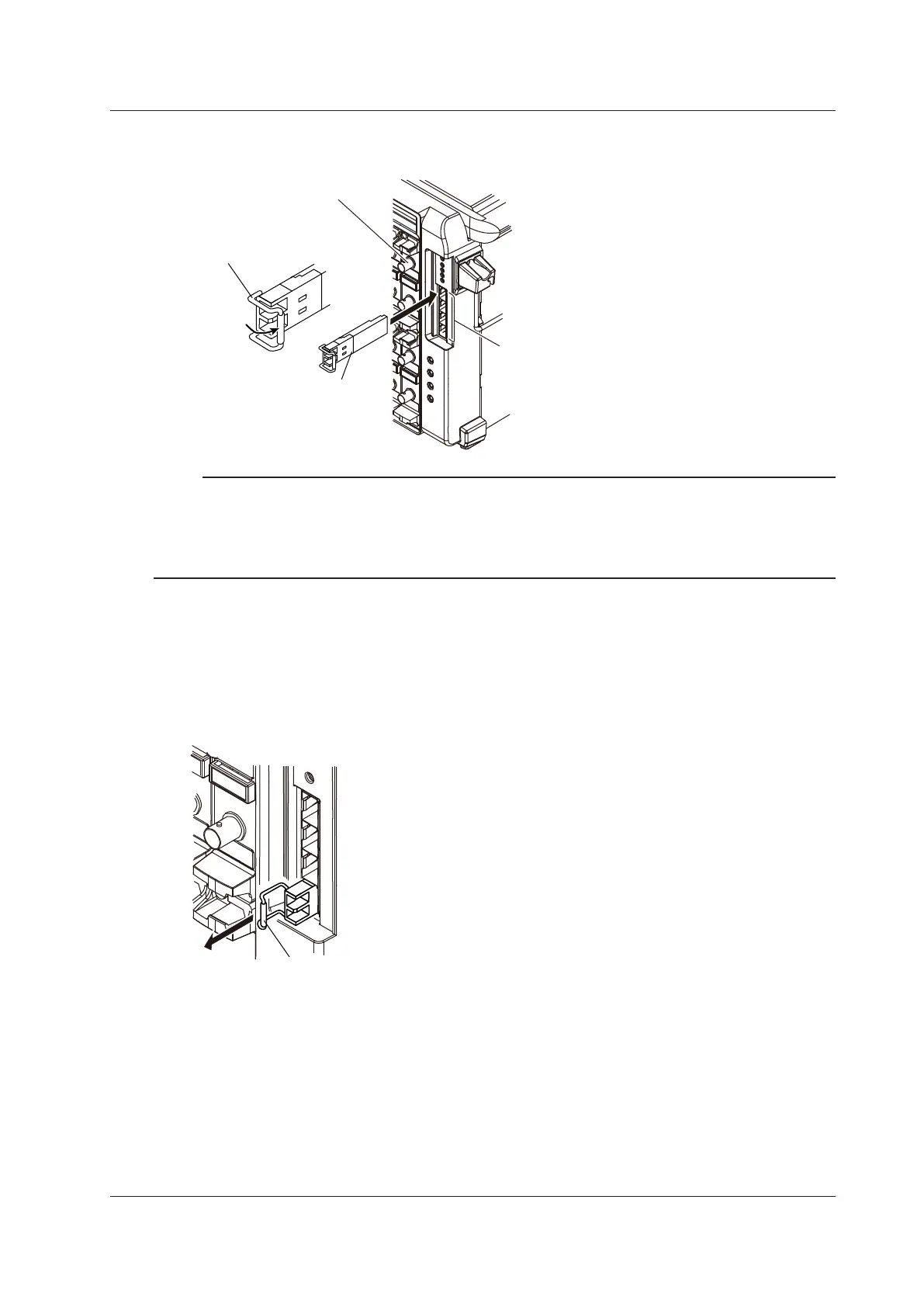

Install it with the latch lever tilted down. If it is installed with the latch lever raised, it cannot be
installed normally.
Tilt the latch lever.
Back
Input module
SFP module
(720941)
Link connector
Note
• Be sure to use the 720941 optional accessory for the SFP module. If you use a different SFP module,
the instrument’s functions and performance are not guaranteed. In addition, a malfunction caused by
using a different SFP module is not covered by warranty.
• There are connectors with the same shape as those of link connectors on the left side of the instrument’s
front panel, but they are 10G Ethernet connectors. You cannot use them to connect SFP modules.
Removing SFP Modules
1.
Turn off the instrument.
2.
Remove the optical fiber cord from the instrument.
3.
Raise the latch lever on the SFP module toward you and slowly pull the module out. The
connector will be disengaged, and the SFP module will come out of the link connector.
Raise the latch lever.
22.1 Connecting Multiple Instruments
