2-22
IM DL950-02EN

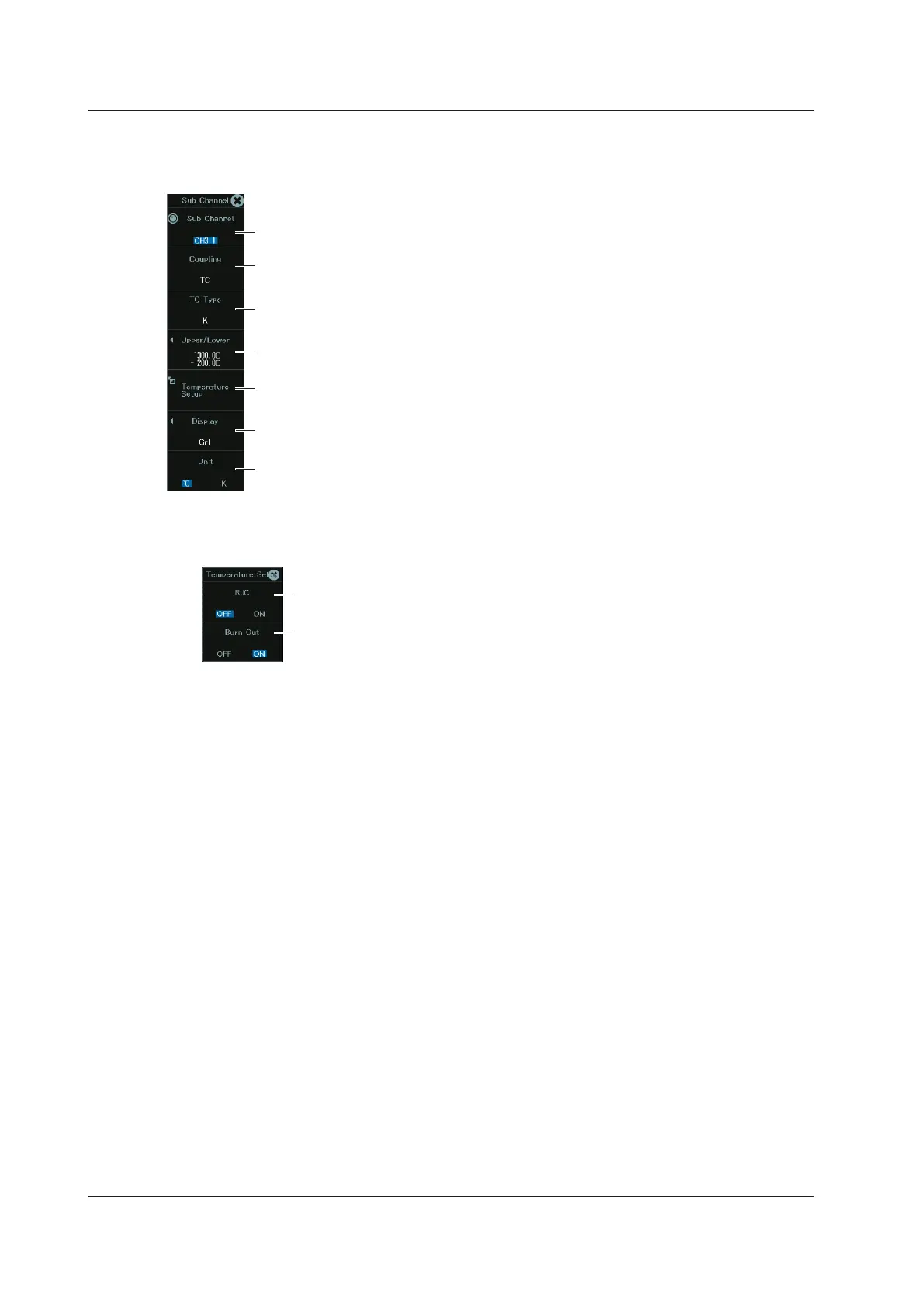

Sub Channel Setup (Sub Channel)
3.
Tap Sub Channel, or press the soft key. An Sub Channel screen appears.
Set the thermocouple type
(K, E, J, T, L, U, R, S, B, N, W, Au7Fe).
See “Temperature Setup.”
Set the temperature unit (°C, K).
Select a sub channel.
Display settings. ► sec. 2.1
Set input coupling to TC.
Set the display range. ► sec. 2.1
Temperature Setup (Temperature Setup) (RJC, burnout on/off)
4.
Tap Temperature Setup, or press the soft key. The following screen appears.
Turns RJC on or off
Turns burnout on or off
Setting the Waveform Vertical and Horizontal Positions (Sliding
the waveform screen)
► section 2.1
2.4 Configuring Temperature Measurements (For 16-CH temperature/voltage input modules)
To Next Page
