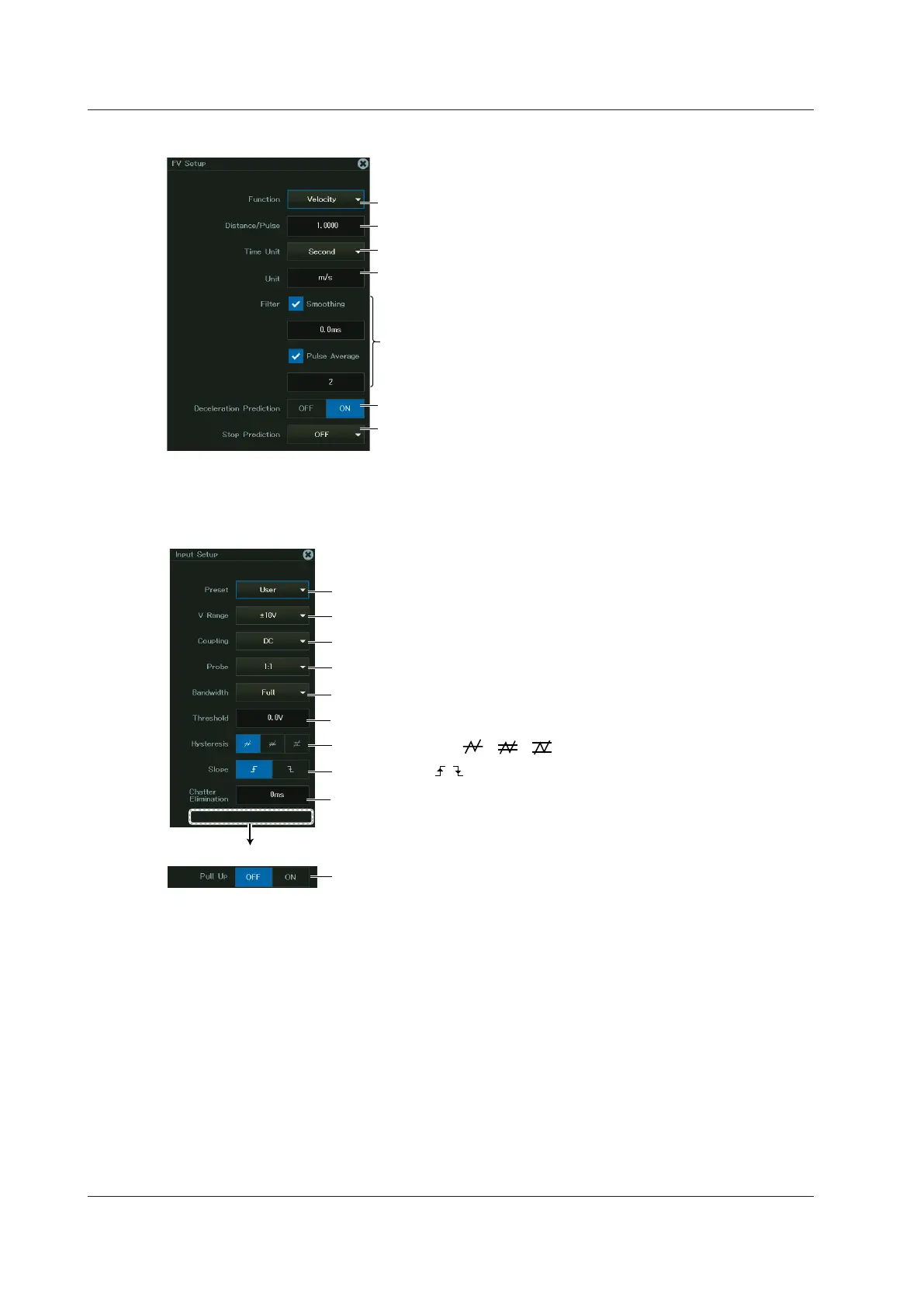

When Performing Velocity Measurements
Select Velocity.
Set the distance and pulse.
Set the time unit (Hour, Minute, Second).
Set the unit.
Set the filter (Smoothing, PulseAverage).
Turns decelerating prediction on or off
Set the stop prediction (OFF, 1.5, 2, 3, 4, 5, 6, 7, 8, 9, 10).
Setting Input Conditions (Input Setup)
3.
Tap Input Setup, or press the soft key. The following screen appears.
Set the preset.
Set the voltage range.
Set the input coupling.
Set the probe type.
Set the bandwidth limits.
Set the threshold level.
Set the hysteresis ( , , ).
Set the slope ( , ).
Set the chatter elimination.
When Preset is set to Pull-up 5V
Turns pull-up on or off
Setting the Preset
You can set the preset to one of the following 10 options: Logic 5V, Logic 3V, Logic 12V, Logic
24V, Pull-up 5V, ZeroCross, AC100V, AC200V, EM Pickup, or User (user-defined).
The settable input items differ depending on the preset that you set. You can only turn pull-up
on and off when the preset is set to Pull-up 5V.
2.7 Configuring Frequency, Revolution, Period, Duty Cycle, Power Supply Frequency, Pulse Width, Pulse
Integration, and Velocity Measurements
