Configuring Data Frame Reading Settings (CAN Port
Configuration)
3.
Tap CAN Port Configuration, or press the soft key.
All Sub Channel Setup (All SubChannel Setup - CAN or CAN FD Data
Extraction Conditions)
4.

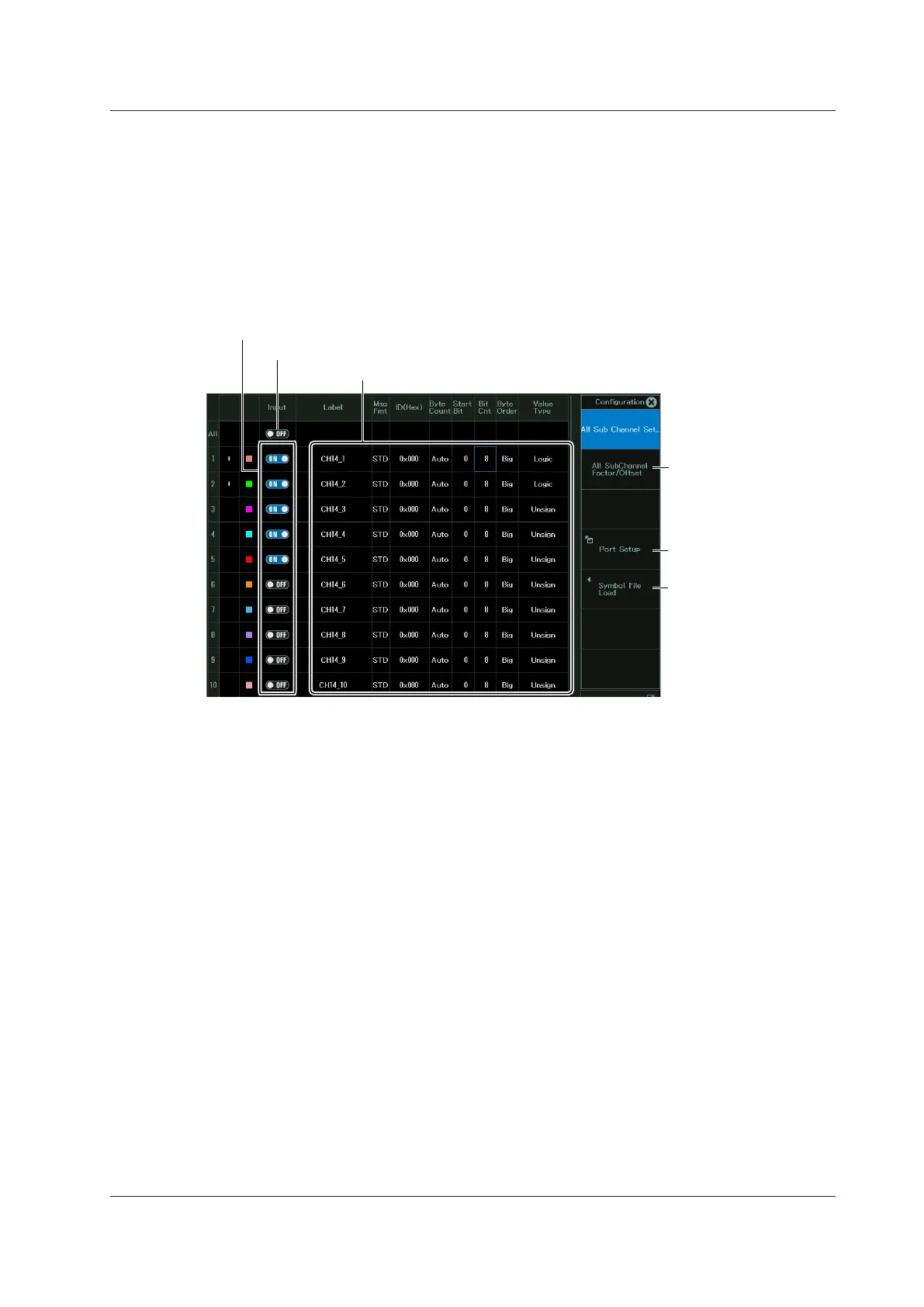

Tap All SubChannel Setup, or press the soft key. The following screen appears.
See “Loading
Definition Files.”
CAN or CAN FD data extraction conditions
Turns sub channels on or off
Set each sub channel’s input to on or off.
See “Port Setup.”
See “Setting All Sub
Channel
Factor/Offset.”
Turns all sub channel on or off
5
. Tap each item. Use the displayed list (options) or input box to set the items.
